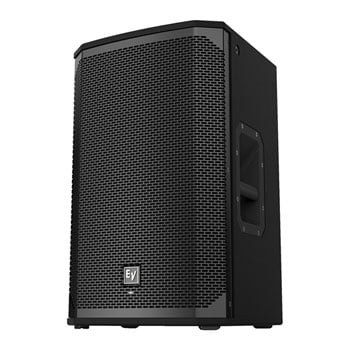

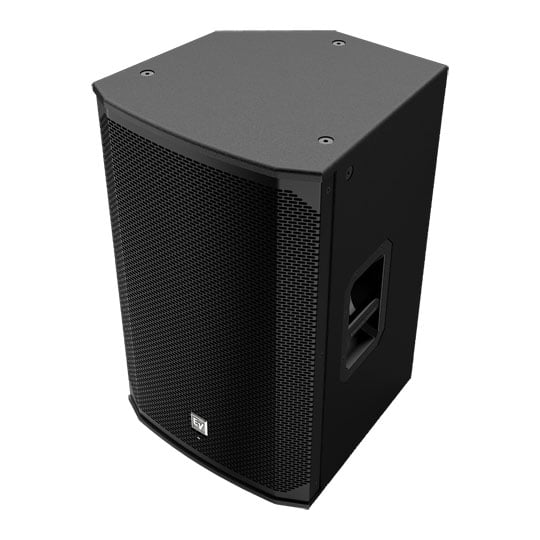

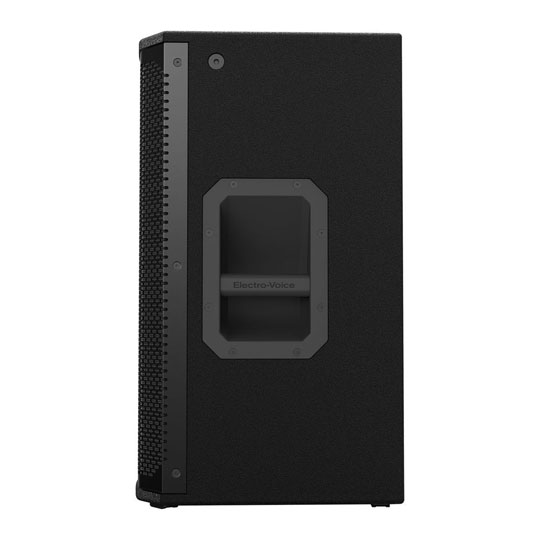

Electrovoice - EKX-15 15" Passive Loudspeaker

Electrovoice - EKX-15 15" Passive Loudspeaker, 400W Continuous/1600W Peak Power, 132dB SPL

Thumbnail 1 : Electrovoice - EKX-15 15" Passive Loudspeaker Thumbnail 2 : Electrovoice - EKX-15 15" Passive Loudspeaker Thumbnail 3 : Electrovoice - EKX-15 15" Passive Loudspeaker Thumbnail 4 : Electrovoice - EKX-15 15" Passive Loudspeaker
Scan code: LN128320 Manufacturer code: F.01U.303.365
Call for price
FREE DELIVERY ON YOUR ENTIRE BASKET
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

15" Passive Loudspeaker
Electrovoice - EKX-15

Electrovoice - EKX15P

Lightweight, compact & powerful!Electrovoice’s EKX-15 is a passive loudspeaker perfectly suited for live music settings and DJ applications. Featuring 1600W peak power, the EKX-15 is capable of delivering up to 132dB Max SPL, utilizing high sensitivity transducers designed and engineered by EV for this express purpose. The EKX-15 is lightweight and compact, made from a 15mm wooded enclosure with internal bracing, and durable EVCoat finish. 90˚ x 60˚ pattern allows for best coverage on mid-size stages and a 40˚ monitor angle with rubber feet for secure positioning. Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles allow for reliable and comfortable set up. The EKX-15 will make a fine addition to your loudspeaker set!

1600WPeak

50 Hz - 20 kHzFrequency Range

Impedance

at a glance • EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet
• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles

suitability • Ideal for medium sized venues/bands/solo artists/DJs/Houses of Worship/Clubs/Fixed Installation

Electro-Voice EKX Loudspeaker - An Overview

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

The Tech Spec

Features Specification
Frequency Range (-10 dB) 50 Hz - 20 kkHz (Full Space Measurement)
Suspension (8) M10 threaded mounting points
Minimum Impedance 7.2Ω
HF Transducer DH-1M 1-inch titanium compression driver
Speaker Type Full-Range, two way
Woofer Size 15inch
Powered or Passive Passive
Frequency Response (-3 dB) 75 Hz - 18 kHz (Full Space Measurement)
Max. SPL/1m (calc) 132dB
Coverage (Nominal -6 dB) HxV 90° x 60°
LF Transducer EVS-15M 381 mm (15 in)
Power Rating 1600W
Crossover Frequency 1.6 kHz
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Grille 18 AWG steel with powdercoat
Recommended High-Pass Frequency 50Hz
Dimensions Width: 17.01" (432mm)
Height: 26.97" (685mm)
Depth: 16.89" (429mm)
Net Weight 51.15lbs (23.2kg)
Shipping Weight 62.17lbs (28.2kg)
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m) 96dB (Full Space Measurement)
Power Handling (Continuous / Peak) 400W/1600W
Nominal Impedance
Maximum SPL 132dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Passive Power Handling 1600W peak
Specifications
Frequency Response -3dB N/A
Frequency Response -10dB 50 Hz - 20 kHz
Max SPL 132 (dB)
Power handling (RMS) 400 Watts (RMS)
Power handling (Peak) 1600 Watts (Peak)
Speaker size (inch) 15
Nominal Impedance (Ohms) 8
Enclosure Type Wood
Dimensions Width: 17.01" (432mm) x Height: 26.97" (685mm) x Depth: 16.89" (429mm)
Net weight 23.2 KG
Shipping weight 28.2 KG
Connections None
Pole Mountable No
Integrated Bracket No
Rigging Points No
Sub Woofer No
Front of House No
Floor Monitor No
