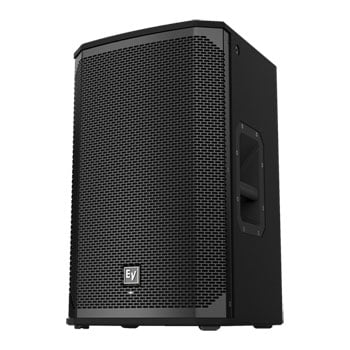

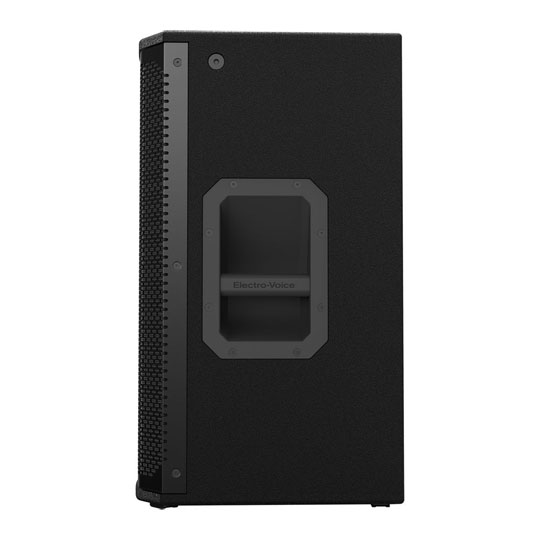

Electrovoice - EKX-12P Powered 12" 2-Way Speaker
Electrovoice - EKX-12P, Powered 12" 2-Way Speaker, DSP Processing
- By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
12" Powered Speaker
Electrovoice - EKX-12P
integrated 'QuickSmartDSP' technologyFeaturing a 12” woofer and a 1” titanium compressor driver, Electrovoice’s EKX-12P is powerful powered 2-way loudspeaker delivering 1500W of Class D amplification which is perfectly suited to live music applications, educational and lecture purposes and general club use.
The EKX-12P features built-in QuickSmartDSP technology which offers deep modification via the easy-to-read LCD menu-navigation screen and single-knob interface. Upto 4 presets of DSP are offered for numerous settings such as ‘Music’, ‘Live’, ‘Speech’ and ‘Club’.
3-YearsWarranty
1500W Class-D AmpTotal Power
DSPBuilt-In
at a glance
• QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
• High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.

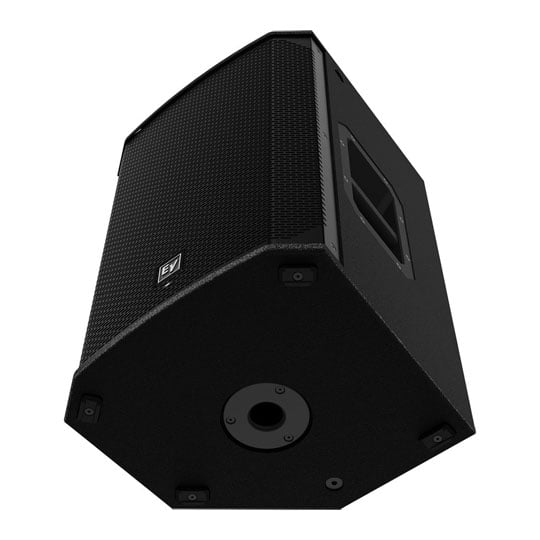

• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 3 inputs comprising of Stereo RCA Input, 2xXLR/TRS Combo Jack, XLR link out
suitability
• Ideal for medium sized venues/bands/solo artists/DJs/Houses of Worship/Clubs/Fixed Installation
Electro-Voice EKX Loudspeaker - An Overview
The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.
The Tech Spec
| Features | Specification | Configuration | Active 2-Way |
|---|---|
| Total Power Capacity | 1500 W |
| HF Driver | 1 x 1" / 25.4 mm Titanium Compression Driver |
| LF Driver | 1 x 12" / 30.5 cm Woofer |
| Frequency Response | 50 Hz to 20 kHz -10 dB 60 Hz to 18 kHz -3 dB |
| Maximum SPL | 132 dB |
| Coverage Angle | 90° H x 60° V |
| Audio I/O | 1 x Stereo RCA Input 2 x Combo XLR-1/4" TRS 1 x XLR 3-Pin Thru/Output |
| Crossover | 1.7 kHz |
| Current Consumption | 1.8 A (1/8 Power) |
| Mounting | 8 x M10 |
| Construction Material | Metal Grille, Plywood |
| Dimensions | 23.9 x 14.8 x 14" / 60.7 x 37.5 x 35.6 cm |
| Weight | 41.5 lb / 18.8 kg |
