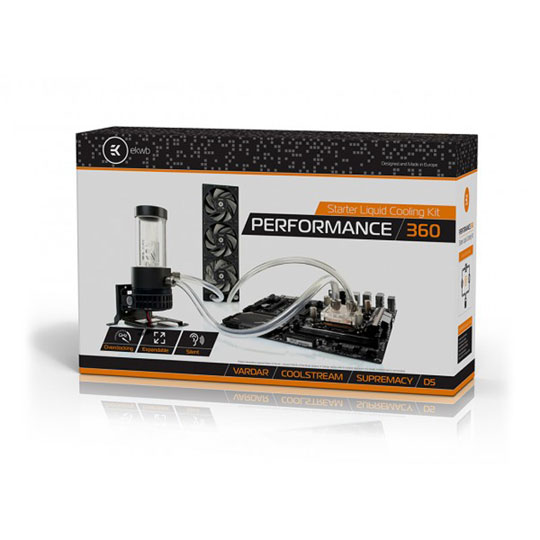

EK-KIT P360 Custom 360mm Complete Watercooling Kit AM4
This kit brings the following components, selected from our wide range of quality products:
EK-Supremacy EVO: Universal CPU water block that fits all modern CPU sockets with a universal mounting mechanism that offers error-preventing, tool-less installation. The result is an easy installation which brings perfect performance every time. EK-Supremacy EVO is our flagship CPU water block and it is truly the best product for performance seeking enthusiasts.
EK-CoolStream PE 360 radiator: It gives this kit its name - offers best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.
EK-Vardar: Industrial grade high-static pressure computer cooling fan, designed and built primarily for highest-performance computer liquid cooling systems. EK-Vardar is simply the best choice for computer radiator cooling as it provides unmatched performance throughout entire operating range.
EK-XRES 140 Revo D5 PWM (incl. pump): High-performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Laing D5 PWM water pump. The unit features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning are supported for easier tube routing possibilities.
PrimoChill PrimoFlex™ Advanced LRT™: 2 meters of the premium quality PVC tubing, guaranteed to be free of plasticizer leaching related issues.
EK-Ekoolant EVO: Brand new coolant, evolved from original EK-Ekoolant, designed specifically for computer liquid cooling systems with 3-year shelf life from date of bottling. It comes in a weight-saving 100mL concentrated form, which - dilluted with 900mL distilled water (not included) - forms the high performance cooling mixture for your liquid cooling loop.
The kit is easy to install, use and maintain, a thorough installation manual is included. Every item in this kit can be purchased separately, further descriptions and specifications of individual items can be found in EK webshop.
Majority of components have been pre-assembled resulting in quick and painless installation procedure. Once installed, this kit is a full custom loop solution. It can be upgraded with additional water blocks and components, such as additional radiators. Features EK-KIT P360 complete list of items:
• Universal CPU water block: EK-Supremacy EVO (incl. LED diode, mounting- & thermal material).
• Radiator: EK-CoolStream PE 360 (Triple).
• Radiator fan: EK-Vardar F3-120 (1850rpm) (3pcs).
• Water pump-reservoir combo: EK-XRES 140 Revo D5 PWM (incl. pump).
• Tubing: PrimoChill PrimoFlex™ Advanced LRT™ 10/13mm (3/8'' - 1/2'') (2 meters).
• Compression fittings: EK-ACF Fitting 10/13mm (3/8'' - 1/2'') - G1/4 Nickel (6 pcs).
• Coolant concentrate:EK-Ekoolant EVO Clear (100mL; for 1L of coolant).
• Y-cable splitter: EK-Cable Y-Splitter 3-Fan PWM (10cm).
• ATX bridging plug.
This water cooling kit is compatible with the following CPU sockets:
• Intel LGA-775
• Intel LGA-1366
• Intel LGA-1150/1151/1155/1156
• Intel LGA-2011(-3)
• AMD Sockets: 939, 754, 940
• AMD Sockets: AM2(+), AM3(+), FM1, FM2(+)
Made in Slovenia - Europe!
