EKWB GeForce GTX 1070 Glass+Nickel GPU Water Block
Scan code: LN73295
Manufacturer code: 3831109831472
End Of Life
EKWB GeForce GTX 1070 Glass+Nickel GPU Water Block
EKWB EK-FC1070 Waterblock, Acrylic Glass+Nickel-plated, for NVIDIA GeForce GTX 1070 Founders Edition Graphics Card
Scan code:
LN73295
Manufacturer code:
3831109831472
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
Please note the EK-FC1070 Water Blocks are not compatible with the new NVIDIA SLi HB Bridge, however SLi supported motherboards come with their own SLi bridge that has no compatibility issues with the blocks. If ordering an SLi setup please contact Customer Services/Sales to get a free SLi bridge added to your order if required. EK have also announced they are currently developing their own SLi Bridge, with further details to follow.

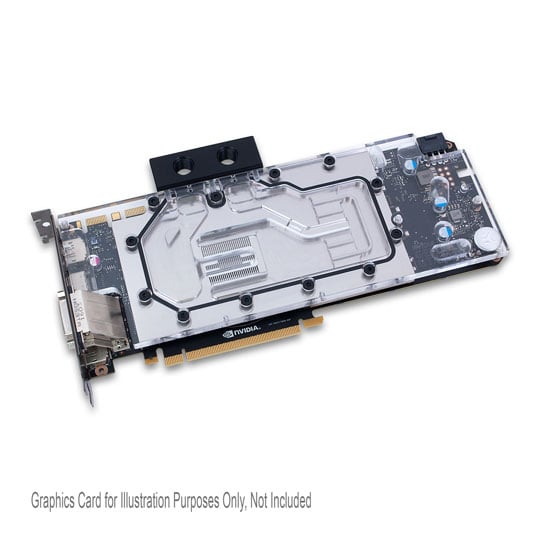

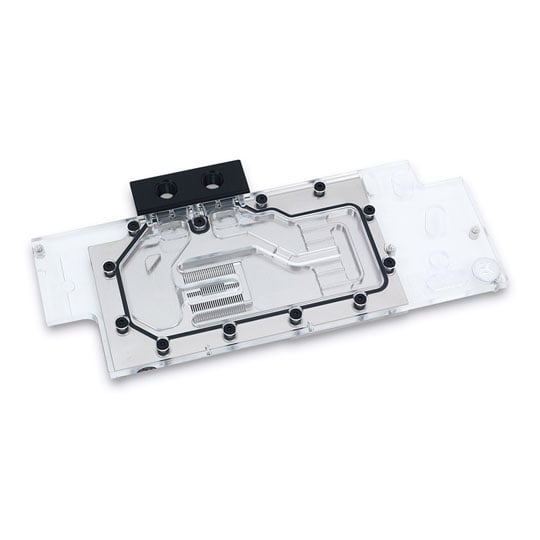

EK-FC1070 GTX is a high-performance full-cover water block for NVIDIA® GeForce GTX 1070 Founders Edition graphics cards.
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas, thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC1070 GTX water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic performance allowing this product to be used in liquid cooling systems using weaker water pumps.

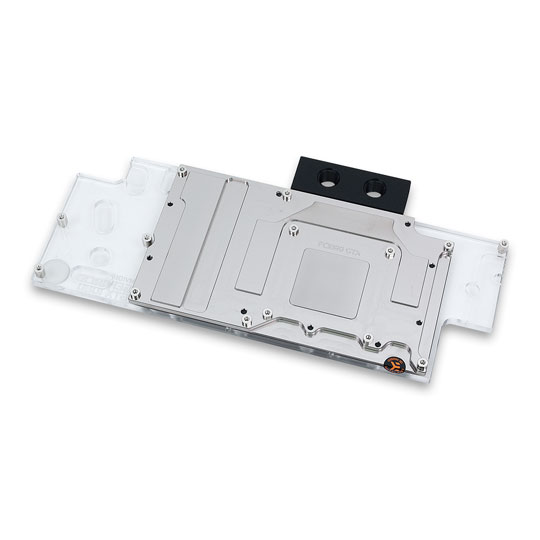

The base is made of nickel-plated electrolytic copper while the top is made of quality acrylic material. The top also features two pre-drilled slots for 3mm LED diodes. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for a safe and painless installation procedure.
EK Water Blocks recommends the purchase of aesthetic retention backplate (EK-FC1070 GTX Backplate - Black or Nickel) which improves the looks of your graphics cards and also provide some passive cooling to the circuit board VRM section.
G1/4" threaded fittings can be used on both sides of the FC Terminal. Up to four EK-FC1070 GTX water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity.
Please note:
• The EK-FC Bridge & Link system is not compatible with this water block.
• NVIDIA® GeForce GTX 1070 factory backplate is not compatible with this water block!
• New NVIDIA® SLI HB bridges are not compatible with this water block. You can still use regular SLI bridge that comes with every SLI supported motherboard.
• EK-FC1070 GTX is identical to the EK-FC1080 GTX with the only difference being the different engraving. Features • Designed for NVIDIA® GeForce GTX 1070 Founders Edition Graphics Cards.
• Water block cools GPU, RAM & VRM.
• Central inlet split-flow cooling engine design.
• Reverse flow compatible.
• Nickel-plated electrolytic copper base.
• High-quality Acrylic Glass top.
• G1/4" threads.
• 3mm LED Diode ready.
• Made in Slovenia.
Includes:
• EK-FC1070 GTX series water block.
• Mounting mechanism with screw-in brass standoffs.
• Thermal pads.
• Thermal grease EK-TIM Ectotherm (1g).
EK-FC1070 GTX is a high-performance full-cover water block for NVIDIA® GeForce GTX 1070 Founders Edition graphics cards.
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas, thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC1070 GTX water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic performance allowing this product to be used in liquid cooling systems using weaker water pumps.
The base is made of nickel-plated electrolytic copper while the top is made of quality acrylic material. The top also features two pre-drilled slots for 3mm LED diodes. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for a safe and painless installation procedure.
EK Water Blocks recommends the purchase of aesthetic retention backplate (EK-FC1070 GTX Backplate - Black or Nickel) which improves the looks of your graphics cards and also provide some passive cooling to the circuit board VRM section.
G1/4" threaded fittings can be used on both sides of the FC Terminal. Up to four EK-FC1070 GTX water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity.
Please note:
• The EK-FC Bridge & Link system is not compatible with this water block.
• NVIDIA® GeForce GTX 1070 factory backplate is not compatible with this water block!
• New NVIDIA® SLI HB bridges are not compatible with this water block. You can still use regular SLI bridge that comes with every SLI supported motherboard.
• EK-FC1070 GTX is identical to the EK-FC1080 GTX with the only difference being the different engraving. Features • Designed for NVIDIA® GeForce GTX 1070 Founders Edition Graphics Cards.
• Water block cools GPU, RAM & VRM.
• Central inlet split-flow cooling engine design.
• Reverse flow compatible.
• Nickel-plated electrolytic copper base.
• High-quality Acrylic Glass top.
• G1/4" threads.
• 3mm LED Diode ready.
• Made in Slovenia.
Includes:
• EK-FC1070 GTX series water block.
• Mounting mechanism with screw-in brass standoffs.
• Thermal pads.
• Thermal grease EK-TIM Ectotherm (1g).
