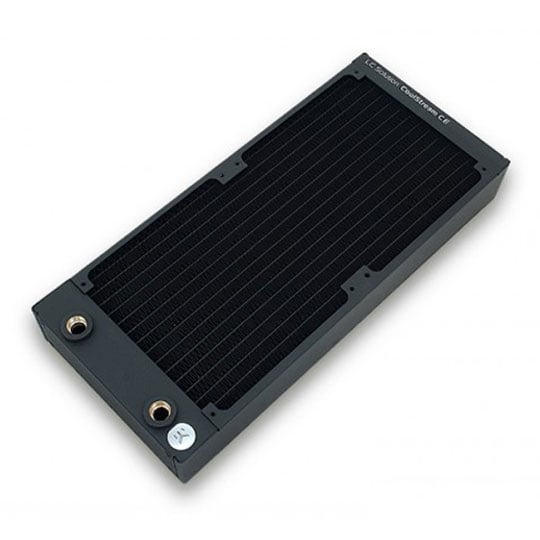

EK-CoolStream CE 280 Dual Radiator

Product Overview EK-CoolStream CE is a high-performance computer liquid cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 140mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream CE series radiators a perfect choice for any computer water cooled system.

This radiator offers best cooling capacity in the 45mm thick radiator class: Dual stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings. Features Material:
• Copper fins
• 90% copper tubing (H90)
• Brass chambers
• Aluminum/Steel housing

• Dimensions: 320 x 145 x 45mm (L x W x H)
• Weight: 1.12kg
• Liquid Capacity: ~290mL
• FPI: 16
• Port threads: 2x G1/4
• Fan compatibility: any standard size 140x140x25mm fan; UNC 6-32 thread tapping
• Pressure tested: 1bar(g)

Enclosed:
• EK-CoolStream CE series radiator /w two pre-installed G1/4 extenders
• Flat-head UNC 6-32 screws (l=30mm)
• Flat-head UNC 6-32 screws (l=5mm)
• Allen key 2,5mm
• Allen key 9mm

PLEASE NOTE:
• When using fans other than standard 140x140x25mm size please use appropriately long screws!
• Use of the improperly long screws may result in piercing of the radiator core and irrepairable damage the product. Such misuse is not covered by product warranty!
