EK-XTOP Revo Dual Water Cooling D5 Serial Pump - with PWM (incl. 2x pump)
EK-XTOP Revo Dual Water Cooling D5 Serial Pump - with PWM (incl. 2x pump)
Scan code: LN69790 Manufacturer code: 3831109843192
  • Thumbnail 1 : EK-XTOP Revo Dual Water Cooling D5 Serial Pump - with PWM (incl. 2x pump)
  • Thumbnail 2 : EK-XTOP Revo Dual Water Cooling D5 Serial Pump - with PWM (incl. 2x pump)
  • Thumbnail 3 : EK-XTOP Revo Dual Water Cooling D5 Serial Pump - with PWM (incl. 2x pump)
  • Thumbnail 4 : EK-XTOP Revo Dual Water Cooling D5 Serial Pump - with PWM (incl. 2x pump)

EK-XTOP Revo Dual Water Cooling D5 Serial Pump - with PWM (incl. 2x pump)

EK-XTOP Revo Dual D5, PWM Serial, 2x 23W, Flow 1500L/h, Incl. 2x pump, Black
MORE INFO
MORE INFO

Scan code: LN69790 Manufacturer code: 3831109843192

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Suggested Alternatives

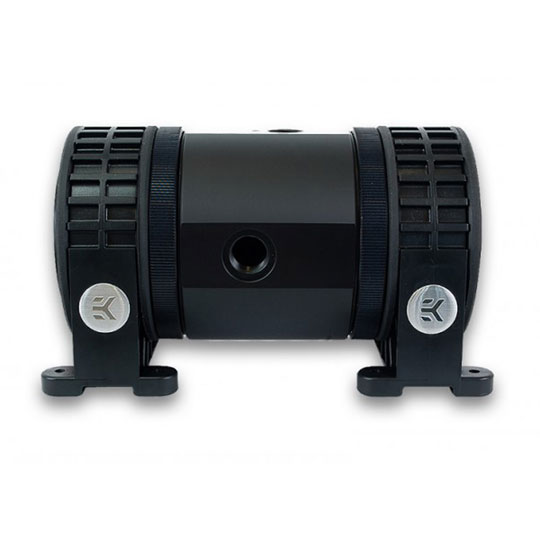

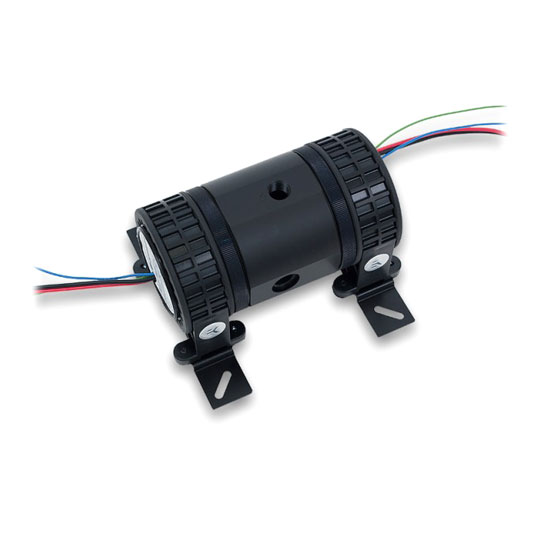

Product Overview EK-XTOP Revo Dual D5 PWM Serial is a fourth generation high-performance aftermarket DUAL pump top (volute) for D5 type water pumps. The EK-XTOP Revo Dual D5 PWM Serial comes pre-installed with two (2) EK-D5 PWM water pumps operating in series.

Using two water pumps in series provides almost twice the head pressure of a single water pump and also guarantees top safety measure - in the case of one pump fails the remaining one will provide sufficient liquid flow to prevent any hardware damage due to overheating. Additionally, there is no downtime until next scheduled maintenance. PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper quiet operation in idle mode!

The main body (top) is nested between two special rubber shock absorbers that were previously designed from the ground up and are one of the main features of the Revo series of products. This system features a fully rounded design, thus offering greater usability, allowing installation at any angle within 360° of rotation. Furthermore, these rubber shock absorbers are used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise.

This product features three G1/4 threaded ports which allow for installation of virtually any G1/4 thread fitting / barb. EK recommends EK-ACF series Compression fittings / adapters.

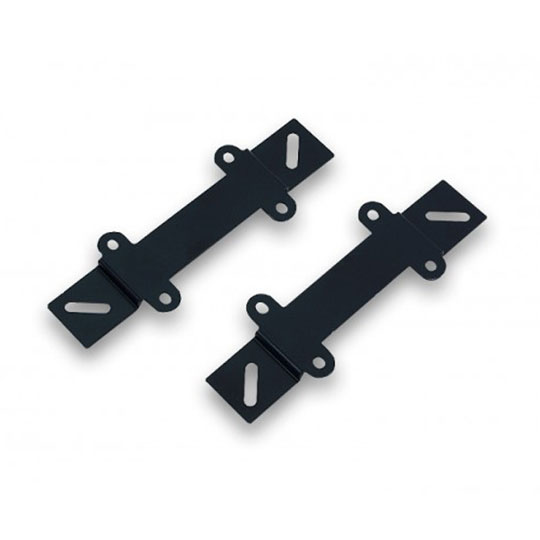

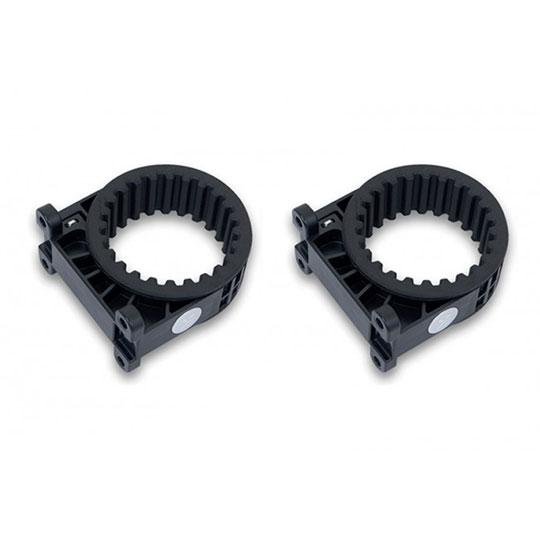

The top is made of quality POM Acetal material, while the tightening nuts are made from CNC machined aluminum. Mounting clamps are made from injection molded ABS. Mounting mechanism with two mounting plates for installing the unit on a 120mm or 140mm fan and easy-to-follow installation guide are enclosed. Features • Motor: Electronically commuted spherical motor
• Rated voltage: 12V DC
• Power consumption: 2 x 23W
• Maximum pressure head: 7m
• Maximum flow: 1500L/h
• Maximum system temperature: 60°C
• Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
• Power connector: 2 x 4-Pin Molex- and 2 x 4-Pin PWM FAN connector
Specifications
Core Specifications
Edition EK-XTOP Revo Dual D5
Product Type Pump
Pump Specifications
Pump Yes
Pump Type Xylem D5 PWM
Max. RPM
Max. Hydraulic Performance
PWM Duty Cycle Range 20-100 %
Pump Voltage 12 V
Max. Power Draw
Reservoir Specifications
Reservoir No
Reservoir Capacity
Fluid Chamber Construction
Combined Specifications
Port Threads G1/4"
Temperature Monitoring
LED Lighting
Controller
Power Connector 1 x 4-pin Molex (AMP Mate-N-Lok)
Power Cable Length
Signal Connector 1 x 4-pin fan header (KK254)
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature 60 °C
Compatible Metals
Compatible Coolant
Mounting System
Installation Locations
  • 120mm Fan Mount
  • 140mm Fan Mount
Product Colour
Dimensions
Weight
Additional Information
Scan Code LN69790
Model Number 3831109843192
GTIN 3831109843192
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Buying Guide
Need help? Read our Water Cooling Buying Guide
Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

EK-XTOP Revo Dual D5, PWM Serial, 2x 23W, Flow 1500L/h, Incl. 2x pump, Black is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Powerful if a bit chunky Bought this to finally have a decent Pump in my system. The pumps integrated into my Alphacool CPU and GPU blocks are not that reliable and after replacing 2 and having the same problems I bought a £10 fish tank pump that worked well enough to have the Alphacool pumps bump start into life. Due to the amount of leakage on the Fish Tank pump, i was having to top off every other Week about 300ml of water. The EK-XTop Revo Dual D5, is certainly better suited to the task and has a lot of flow and pressure... so much so after doing some Folding@Home the loop temperature got too close to 70c and the outlet hose started coming out of the fitting (the hose had deformed due to heat.) The Revo Dual is absolutely silent until around 50% power when it starts to hum as loud as a fan, at 80%+ you will hear it vibrate a lot. But considering the fans are also at full power its not as bad. This came with a 120mm fan bracket to mount the pump however it would have to be either a sidepanel fan or a bottom fan on most cases as the pump is a bit wider. I had hoped to fit it to my 5.25 bay fan mount but its too wide and instead i have velcro taped the bracket feet to the top of my PSU. (Any leaks currently run off either side of the PSU avoiding any wires.) Would definitely recommend, but it is clear I need a case with better radiator mounting positions as my current case is too restrictive.
