EK-Torque Angled T Adapter Fitting Nickel

EK-Torque Angled T G1/4" Revolvable Adapter Fitting, Nickel, Male/Female, Nickel-Plated Brass
MORE INFO

MORE INFO

Scan code: LN105285 Manufacturer code: 3831109814529

Email me when the availability or price changes

By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout. More info
SCANPROTECT Protect against installation damage for 28 days. More info
48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Product Overview

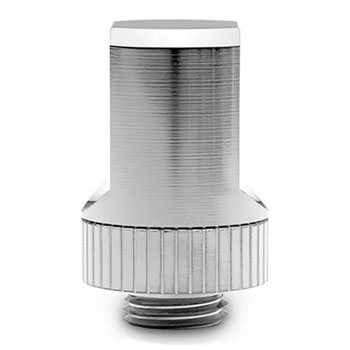

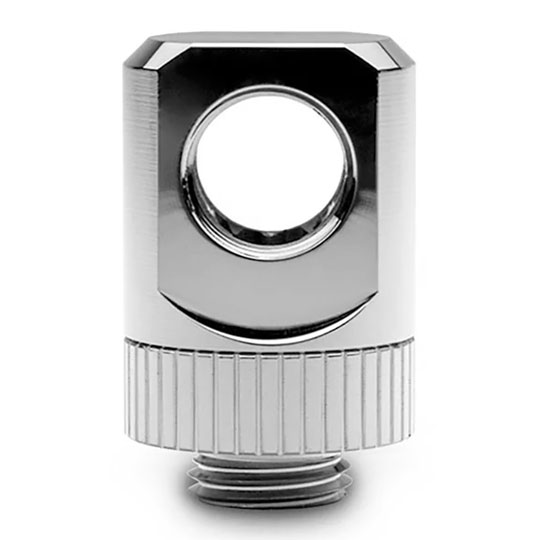

EK-Torque (Adapter Fitting) - Nickel is a revolvable T adapter fitting with G1/4" threads. In the form of a cut-off cylinder, it is very sturdy and there are zero movements in the revolvable joint. With one male and two female threads, it can be used for setting up drain ports, 90-degree angles or parallel connection between components. This Quantum Line adapter is made out of CNC machined brass with high-quality Nickel finish while the seal is made by quality rubber O-rings. It is an extremely secure and sturdy piece that will last for many future builds.

The adapter allows for connection of fitting with G1/4" threads to extend tubing possibilities in your water-cooled system allowing for easier bends and better accessibility.

Outer Diameter (OD) – 23 mm Features

Technical specifications:
Material: made of nickel plated brass
Colour: Nickel
Threads:
• G1/4" BSP; 4,5mm male thread length
• G1/4" BSP, 6mm female thread length
The outer diameter: 23mm
Installed height: 31,5mm
Sealed with high-quality NBR o-ring.

ROHS compliant!

Specifications
Edition	Torque
Type	Rotary T-Adapter
Colour	Nickel
Construction	Brass
Port Thread	G1/4" BSP
Inner Diameter (ID)
Outer Diameter (OD)	23mm
Compatible Materials
Compatible Coolants
Compatible Tubing & Fittings
Includes

Additional Information
Scan Code	LN105285
Model Number	3831109814529
GTIN	3831109814529
