Product Overview

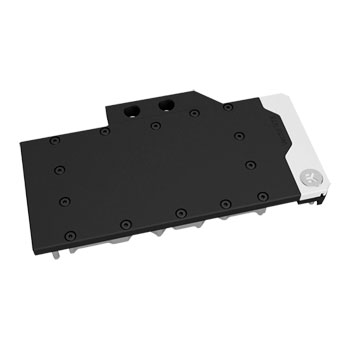

An EK Water Block for Nvidia GeForce RTX 3080 and 3090

EK-Quantum Vector RTX 3080/3090 D-RGB water block is compatible with most reference design (not Founders Edition) GeForce RTX 3080 and 3090 graphics cards. It is purpose-designed with a much thicker copper base to clear the tall capacitors on most reference design graphics cards. This gives the water block the advantage of having a wider compatibility list, without sacrificing any coolant flow restriction.

The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channelled right over these critical areas. The water block is in contact with MOSFETs and chokes to maximise cooling and minimise the chances of coil whine.

These newly developed water blocks feature optimised flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. Additionally, this new design allows the terminal to be screwed directly onto the copper cold plate of the GPU block, making it more rigid and reducing the chances of damaging the water block.

The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterised by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimised to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

Fin array is populated by 27 microfins with 0.5mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.

The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.


D-RGB Lighting on EK-Quantum Vector RTX 3080/3090 D-RGB Water Block

The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 12 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.


Backplate for the 3080/3090 Water Block

EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.

Features
Enclosed:
• EK-Quantum Vector RTX 3080/3090 D-RGB series high-performance water block.
• Mounting mechanism with screw-in brass standoffs.
• Necessary mounting screws, nuts, and washers.
• 2x Nickel plated brass plug G1/4”.
• EK-Loop Multi Allen Key (6mm, 8mm, 9mm).
• Thermal pads.
• Thermal grease EK-TIM Ectotherm (1g).

Technical Specification:
• Dimensions: (LxHxW) - 220x124x20.5mm.
Specifications
Type GPU Water Block
Edition EK-Quantum Vector
Graphics Card Product Line Compatibility
  • GeForce RTX 3080
  • GeForce RTX 3090
Graphics Card Edition Compatibility Nvidia GeForce RTX 3080/3090
Fluid Chamber/Top Material CNC Machined POM Acetal
Cold Plate/Base Material Nickel-Plated Copper
Cold Plate/Base Cooling Fins 27
Port Threads G1/4"
LED Lighting 12x Addressable RGB LEDs
Product Colour Black/ Silver
Controller
Max. Coolant Operating Temperature
Compatible Cooling Loop Metals
Compatible Coolants
Included TIM (Thermal Interface Material) Included
Dimensions 20.5 x 124 x 220 mm (WxHxD)
Weight
Note
Additional Information
Scan Code LN110861
Model Number 3831109829974
GTIN 3831109829974
