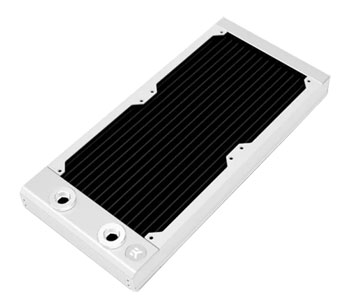

EK-Quantum Surface S240 Radiator - White
EK-Quantum Surface S240 Radiator, upto 2x 120mm Fans, G1/4", Copper/Brass/Aluminium, White
By DPD On 6th Jul
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
EK-Quantum Surface S240
With a thickness of only 30mm, the EK-Quantum S Series Surface radiators are ideal for space-constrained cases. Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds. A total of 16 copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop. High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance for optimal performance even at low-speed fan operation. A Push/Pull setup on an S Series EK-Quantum Surface radiator is not something EK would recommend since it will not bring a proportional performance increase. If more cooling power is needed, adding additional radiators is the way to go.
New and Improved
The EK-Quantum Surface S series radiator maximizes performance by utilizing a new radiator core. When comparing core to core performance, the Surface S radiator performs up to 20% better than its predecessor, the CoolStream SE, due to its enhanced fin structure and optimized core.
EK-Quantum Surface premium radiators are built upon years of development and market research to deliver the best product that the market demands in every possible way. The finish of the materials, mechanical rigidity, and performance have all been brought to another level. Like all other Quantum Line products, EK’s brand new Surface radiators bring numerous performance improvements, including thermal performance, coolant flow restriction, and airflow restriction.
With the supplied screws, this radiator is compatible with 120mm fans that have a standard 25mm thickness. EK recommends using EK fans or similar ones with sealed-edge frames. This classic yet effective square shape of the fan casing provides optimal performance in either the pull (suction) or push (pressure) regime without any hydraulic losses, thus ensuring the optimal cooling capacity of your liquid cooling radiators.
Thick, extruded aluminum end caps with a contrasting silver finish give the radiator a premium look and feel. They cover the internals and join the stamp-pressed side plates, creating a rigid structure that is pleasant to handle. The stainless-steel side plates are coated with a durable semi-matte white paint, while the fins themselves have a special black matte coating with a high thermal conductivity coefficient. The shade of white is carefully picked to match some of the most popular white cases on the PC market.
M4 Screws – Standardized, Easy to Find
Hard-wearing black M4 Philips round-headed screws are supplied for ease of use. In general use case scenarios, EK strongly suggests using only the included screws to avoid damage to the radiator itself. However, M4 screw compatibility allows the users to source longer screws if necessary. The cooling core is designed to cause no detrimental damage to the structural integrity of the radiator core even if the customer uses longer screws accidentally, as they will collide only with the fins.
Easy Disassembly – DIY Modding Dream
The EK-Quantum Surface range was designed and executed as a modular product range rather than individually sized radiators. Such a design achieves immaculate fitment and continuity in appearance while at the same time making the disassembly process very easy and straightforward. Catering to the DIY modding community is something EK has always been supporting, so painting and modifying your Surface radiator will be a breeze.
Loop Friendly – Don't Worry About Your Pump
The internal structure design of the radiators was executed with low flow restriction in mind, providing no unnecessary stress on the rest of the cooling loop. This means you will be able to add multiple radiators to your cooling loop using only a single pump (D5 or DDC). The radiators are also airflow-friendly and low-restriction, allowing lower fan speed operation to achieve the same performance. Low airflow restriction keeps the case well ventilated and allows other radiators in the case to breathe properly.
EK-Matrix7 Compatible – For the Cleanest Tube Runs
Since any custom liquid-cooling loop is built from multiple EK products, the most valuable distinction in aesthetics and ease of use comes from the sum of all the parts. To address this, EK initiated Matrix7, a system that standardizes products’ dimensions, as well as port position and spacing. In so doing, we are making the liquid cooling loop assembly more intuitive and having a clean set of parallel tubing runs easier than ever before.
All EK-Quantum Surface radiators are EK-Matrix7 compatible, which means they effortlessly integrate with Reflection², the second generation of Quantum distro plates. This enables the user to easily swap and upgrade between S, P, and X series Surface radiators within the same case (provided the case supports thicker radiators in the same position).
• High-grade 99.9% copper fins.
• Copper H90 tubing.
• Brass H62 end tank chambers.
• Stainless Steel side plates.
• Extruded Aluminum Silver anodized end piece covers.
• Brass nickel-plated extenders and plugs.
• Dimensions: 285 x 130 x 30mm (L x W x H).
• Weight: 0.73kg.
• FPI: 20.
• Port threads: 2x G1/4".
• Fan compatibility: 120x120x25mm fan.
• Pressure tested: 1bar.
• EK-Quantum Surface S series radiator.
• 8x Phillips Slotted M4x30mm for 25mm thick fans.
• 8x Phillips Slotted M4x5mm for mounting the radiator directly to the case.
• 6mm steel Allen (Hex) key.
• 9mm steel Allen (Hex) key.
|Edition||EK-Quantum Surface S240|
|Type||240mm Water Cooling Radiator|
|Compatible Fans||2 x 120mm|
|Radiator Thickness||30 mm|
|Fin Spacing||20 fpi|
|Screw Thread Size|
|Loop Compatible Metals|
|Max. Coolant Operating Temperature|
|Radiator Dimensions||130 x 30 x 285 mm (WxHxD)|
