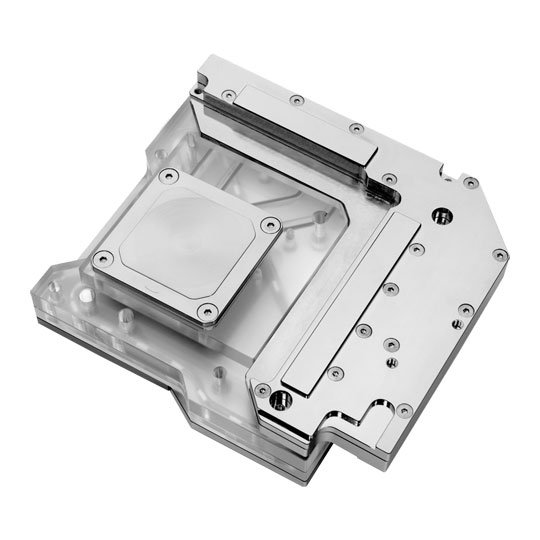

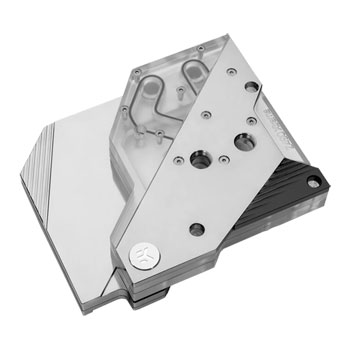

EK-Quantum Momentum Aorus Z490 Xtreme D-RGB Plexi Water Cooling Monoblock
EK-Quantum Momentum Aorus Z490 Xtreme, CPU/Motherboard Water Cooler Monoblock, D-RGB, Nickel Plated Copper, Plexi
Email me when the availability or price changes
-
Pay in
3
interest-free payments of
£66.66
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
-
0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout.
More info
- SCANPROTECT Protect against installation damage for 28 days. More info
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Low Restriction and High Performance
EK-Quantum Momentum Aorus Z490 Xtreme D-RGB is the new Quantum Line multiblock specifically engineered for the Gigabyte® Aorus® Z490 Xtreme motherboard. Featuring the award-winning Magnitude cooling engine with low restriction and high performance, this monoblock is equipped with a 3-pin D-RGB (addressable) LED strip and it offers unparalleled aesthetical customisation alongside superior performance! The D-RGB LED in the multiblock is compatible with Gigabyte RGB Fusion 2.0 which offers a full lighting customisation experience.
This is the first EK® Momentum series monoblock that utilises the award-winning EK® Magnitude CPU water block cooling engine! This water block directly cools Intel® 1200 socket-type CPU, as well as the power stages, chokes, and 10G LAN controller chip. Liquid flows directly over all critical areas, providing the enthusiasts with a great solution for high and stable overclocks. The Momentum monoblock also comes with sophisticated addressable D-RGB lightning which connects to a standard 3-pin 5V D-RGB header on the motherboard.
Premium Materials
The purest nickel-plated copper available on the market is used for the cold plate, precisely machined to a dense micro-fin structure. The top of the monoblock features a mix of CNC-machined glass-like cast acrylic, nickel-plated brass, and an Elox Black Aluminium piece.
The entire CPU block part of this multiblock connects to special nickel-plated barb push-in fittings located on the VRM block, as it latches to the barb fittings. Thanks to this design, the new multiblock works exceptionally well with delidded and polished IHS but will surely not work as a direct die cooling method. The enclosed thermal pad is used on voltage regulator modules to improve stability and performance and prolong the lifespan of the motherboard. For the CPU, please use the enclosed (electrically non-conductive) thermal grease Thermal Grizzly Hydronaut.
Addressable D-RGB LED
The water block is already equipped with 3-pin 5V Addressable D-RGB LED strip which is compatible with the Aorus Z490 Xtreme 3-pin 5V D_LED (Addressable LED Strip) headers. This product is also compatible with D-RGB controllers that support the pinout: +5V, D, Blocked, Ground. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D_LED (Addressable LED Strip Headers).
• D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground).
Enclosed:
• EK-Quantum Momentum Aorus Z490 Xtreme D-RGB Multiblock.
• Mounting mechanism with bridge extenders.
• Thermal grease Thermal Grizzly Hydronaut.
• Thermal pads.
