EK-HDC Fitting 16mm G1/4 - Black

EK-HDC Fitting 16mm G1/4 - Black

MORE INFO
MORE INFO
Thumbnail 1 : EK-HDC Fitting 16mm G1/4 - Black
Scan code: LN59483 Manufacturer code: 3831109846094
£5.99
Add To Basket
In stock
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 11th Dec To 13th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

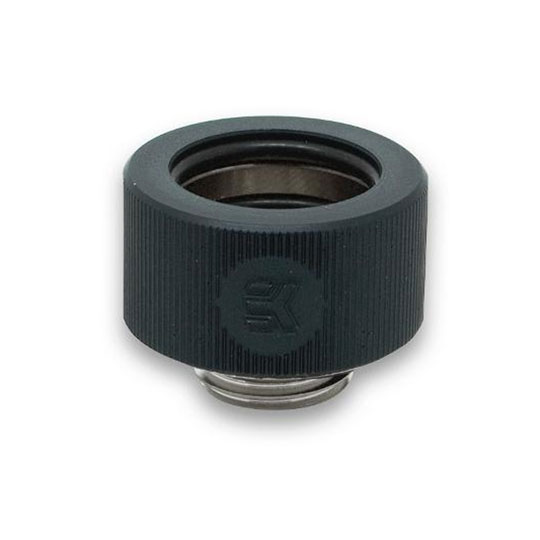

Product Overview EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.

The barb is made of nickel-plated CNC machined brass while the ring is made of black anodized CNC machined aluminum and feature quality O-rings.

These fittings are fully compatible with EK-CSQ series (45°/90°) angled adapters. Features • Thread: G1/4" BSP; 4.5mm male thread lenght
• Supported tube: 16mm (OD)
• Outer diameter of a fitting: 23.8mm
• Installed height: 14.5mm
• Compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
Specifications
Edition
Type
Colour Elox-Black
Construction
Port Thread G1/4"
Inner Diameter (ID)
Outer Diameter (OD) 16mm
Compatible Materials
  • Brass
  • Copper
  • Stainless Steel
Compatible Coolants
Compatible Tubing & Fittings
  • Rotary 45° Adapters
  • Rotary 90° Adapters
Includes
Additional Information
Scan Code LN59483
Model Number 3831109846094
GTIN 3831109846094
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
EK-HDC Fitting 16mm G1/4 - Black is rated 3.5 out of 5 by 2.
Rated 5 out of 5 by from Quality! Finish on those is superb. Quality product for sure
Date published: 2016-03-22
Rated 2 out of 5 by from not the normal EK standard The same tube would not fit all of them no idea why but I used the same bit of tubing to test all the fittings and some fit and some did not normally the difference is within the tubing but it seems the fitting was to blame for this maybe the O-ring inside. Anyway if it was not for this great fitting but as 10% of the 15 I got did not fit I can not recommend these fittings
Date published: 2015-11-26
