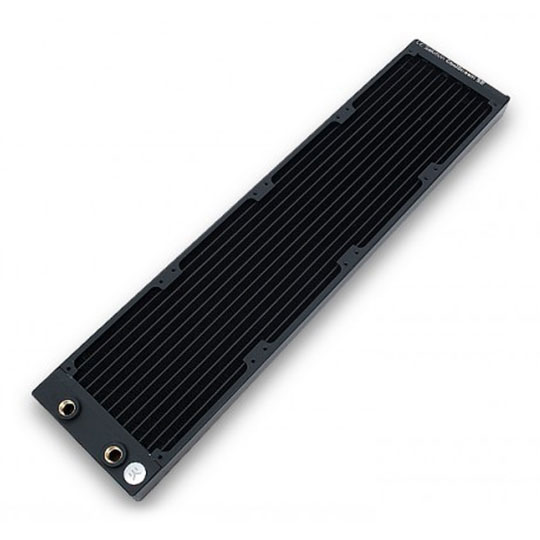

EKWB CoolStream SE 480 Water Cooling Radiator

EK-CoolStream SE 480 Slim Quad High Performance Liquid Cooling Radiator, 2x G1/4 Port Threads

EK
Scan code: LN66504 Manufacturer code: 3831109860328 Request call
£69.98
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview EK-CoolStream SE is a slim, high-performance computer liquid cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream SE series radiators a perfect choice for any computer water cooled system. Overall compact measurement of the SE series radiator allow for utilization even in the tiniest computer chassis.

This radiator offers best cooling capacity in 25mm thick radiator class: copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

This product features two recessed G1/4 threaded ports with two pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings. Features Material:
• Copper fins
• 90% copper tubing (H90)
• Brass chambers
• Aluminum/Steel housing

• Dimensions: 520 x 120 x 26mm (L x W x H)
• Weight: 1.15kg
• Liquid Capacity: ~185mL
• FPI: 22
• Port threads: 2x G1/4
• Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping
• Pressure tested: 1bar(g)

Enclosed:
• EK-CoolStream SE series radiator /w two pre-installed G1/4 extenders
• Flat-head UNC 6-32 screws (l=30mm)
• Flat-head UNC 6-32 screws (l=5mm)
• Allen key 2,5mm
• Allen key 9,0mm

PLEASE NOTE:
• When using fans other than standard 120x120x25mm size please use appropriately long screws!
• Use of the improperly long screws may result in piercing of the radiator core and irrepairable damage the product. Such misuse is not covered by product warranty!
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
RTB Period:
12 months
Manufacturer Contact Details
Reviews
Rated 5 out of 5 by 1 reviewer.
Rated 5 out of 5 by Great value pain to bleed They look the part and keep the machine cool. Great for push pull config however I just have 1 set on fans on both of my Rads, water temps for a overclocked titan hang around 33c with a room temp of 22c (using 4 corsair static led fans) CPU skylake slightly over clocked temps of water about 27c-30.5c Using mayhems pastel. with pushpull take off 3c each loop had 900ml of water screws line up well however I would flush out the rads with hot water for at least 30 mins until water is cool before filling up with coolant. 14 April 2016
