EIKON UXLR Wireless XLR Transmission System
EIKON - UXLR Wireless XLR Transmission System, Female XLR Transmitter, Male XLR Receiver, USB-C Charging Cable & Case
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Wireless XLR Transmission System
EIKON - UXLR

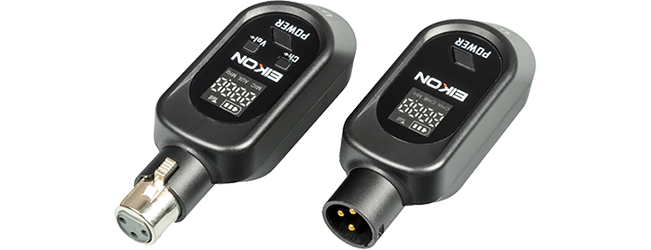

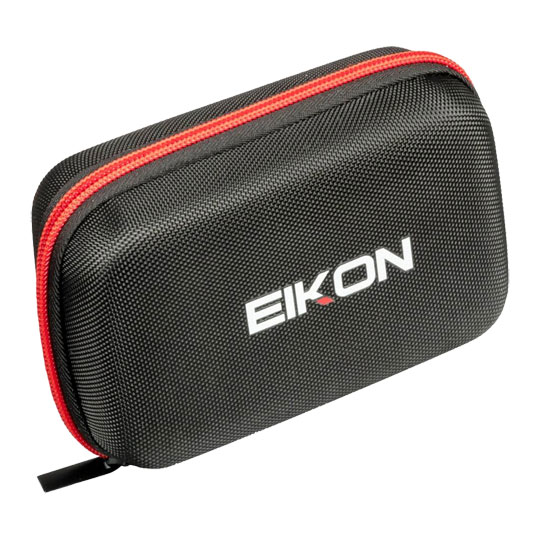

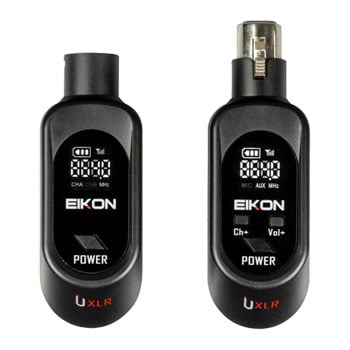

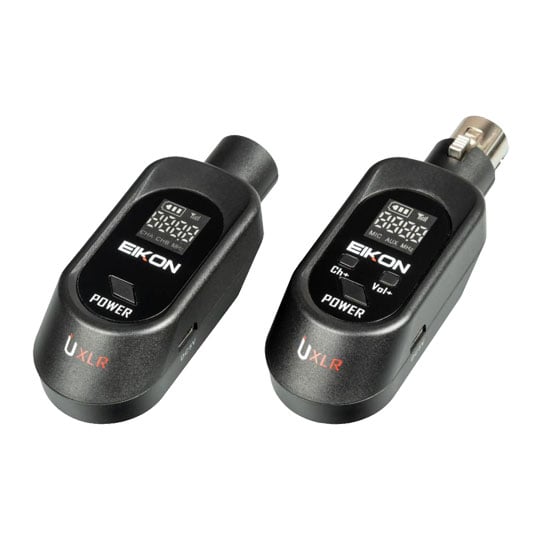

innovative wireless technologyEIKON are pleased to announce the arrival of UXLR, a device with an exclusive design that is accessible to everyone for extending their wireless connections. The UXLR is a UHF PLL wireless audio system designed for transmitting signals via XLR connection, providing a reliable and high-quality signal. The system is made up of three units: a female XLR transmitter, a male XLR receiver, and a USB-C charging cable, all enclosed.
There are 16 frequency channels available (30 for the 500 MHz band version), allowing the system to be used simultaneously or in environments with other wireless equipment. UXLR is the simplest and most affordable way to wirelessly transmit balanced or unbalanced XLR signals, such as those connecting mixers to active speakers and amplifiers. It can also transform any dynamic or condenser microphone into a wireless microphone, thanks to its dual input sensitivity and Phantom Power function.
At A Glance
• MIC / LINE input sensitivity selection
• UHF Quartz locked DQPSK modulation mode
• Built in 3.7V/800mA lithium battery
• 5V USB-C charging cable included
• Up to 5 hours autonomy
• Up to 30 meters range
UXLR – UHF PLL Transmitter Tech Spec
| Features | Specification | RF Channels | 16 or 30 frequency presets depending on band |
|---|---|
| RF Frequency Band | UHF: 863-865 MHz or 568.500 – 580.100 MHz |
| RF Frequency Stability | ±0.002% |
| RF Oscillation Mode | PLL Synthesized |
| RF Modulation Type | DQPSK |
| RF Output Power | 10mW |
| Sub-harmonic | < 40 dB |
| Operating current | 130 mA |
| Operating Time | 3 to 5 hrs |
| Operating Power Supply | 3.7 V / 800 mA - built-in Lithium battery |
| Charging Mode | USB charging 5V – type C connector |
| Charging Time | 3 hours |
| Weight | 0.10 kg |
UXLR – UHF PLL Receiver Tech Spec
| Features | Specification | RF Channels | 16 or 30 frequency presets depending on band |
|---|---|
| RF Frequency Band | UHF: 863-865 MHz or 568.500 – 580.100 MHz |
| RF Frequency Stability | ±0.005% |
| RF Oscillation Mode | PLL Synthesized |
| RF Modulation Type | DQPSK |
| RF Receiving Sensitivity | < -98 dBm |
| RF Receiving Range | Up to 30 meters |
| Audio Dynamic Range | 106 dBm |
| THD Distortion | < 0.5% |
| S/N Ratio | > 102 dBA |
| Operating Current | 85 mA |
| Operating Time | 3 to 5 hrs |
| Operating Power Supply | 3.7 V / 800 mA - Built-In Lithium Battery |
| Charging Mode | USB Charging 5V – Type C Connector |
| Charging Time | 4 hours |
| Weight | 0.10 kg |
