Efnote - EFD-PRO Sound Module
& Stage Box

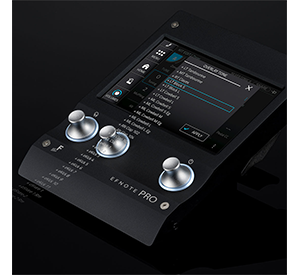

Next-Level Control for DrummersThe EFNOTE PRO module is all about giving you the feel of an acoustic kit with the power and flexibility of cutting-edge digital tech. At the heart of it all is a high-definition, high-brightness colour touchscreen that makes switching kits as quick and intuitive as swiping your phone.
Designed for the StageThe Set List mode is a gigging drummer’s best friend. Line up your kits in order, give each one its own colour and label, and even assign a dedicated click track to each song. With seven different metronome sounds and a handy favourite-beat storage, you’ll always be locked in.
Recording practice ideas couldn’t be easier either — just hit One-Touch Recording and save your takes to USB for instant playback. Add in the Volume Manager, Graphical Bus Routing, High-Pass Filter, and Master EQ, and you’ve got pro-level mixing tools built right into the module.

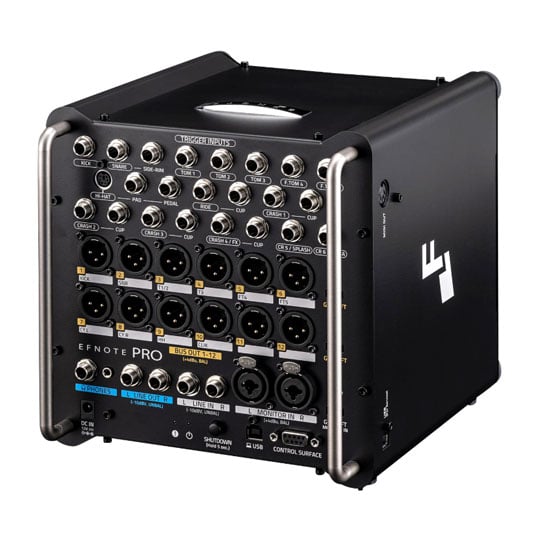

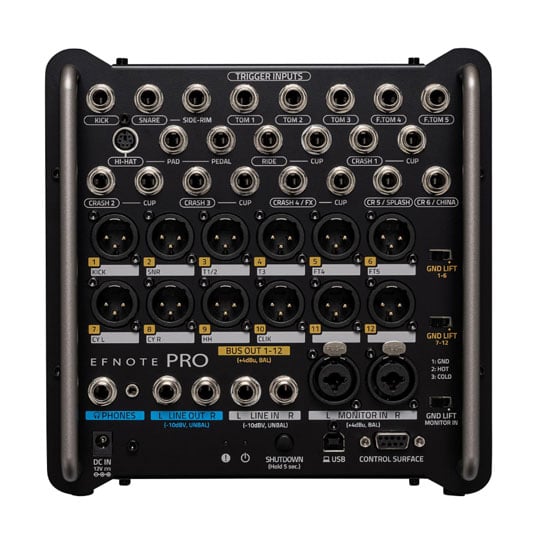

Stage Box with a Clever TwistEFNOTE also thought about life on stage. The PRO module includes a dedicated stage box that keeps your cabling neat and easy to manage. And here’s a nice touch — the module itself features a built-in lighting element that illuminates the stage box below, so you’ll always have a clear view of your connections when setting up or tearing down in low light. In short, the EFNOTE PRO isn’t just another drum brain — it’s a fully featured command centre for your electronic kit, purpose-built for drummers who want total control, effortless usability, and killer sound wherever they play.
at a glance

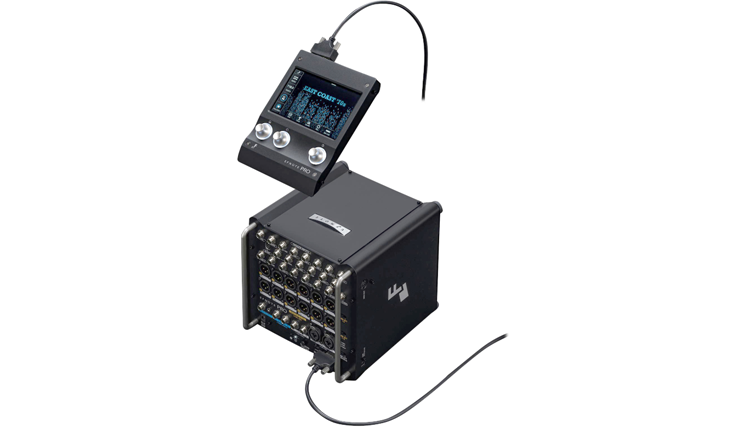

• Two-part E-Drum module with separate stage box
• 15 preset drum sets, 20 user set lists
• Drum stage box with up to 12 balanced XLR outs directly to FoH
• 167 high-resolution multi-layer samples
• Four-color touchscreen display
V2.0 Firmware Update
Create Your Signature SoundIntroducing the EFNOTE PRO V2.0 firmware update, which brings powerful new features to help you define your unique drum sound. The User Tone feature and the EFNOTE Desktop Tools app allow you to easily create your custom drum sounds, while the improved Instrument Expansion gives you easy access to a growing library of professional add-on instruments.
Remote ControlEFNOTE Tools App provides faster and more reliable rehearsals.
The FOH engineer can change the settings of the output sent to the console without affecting the drummer's monitor sound.
The drummer can also adjust the front sound while playing back the recorded data.
Features We Loved
Legendary Drum Sets•The delicate resonance of aged shells are newly captured, recorded by EFNOTE.
•Raw and organic, NOT synthetic and electronic.
•Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells.
Overlay Tone (Layering)•Elements such as tambourines and EDM kicks can be easily layered over each drum sound.
•Attack Elements for reinforcing the attack.
•Percussion sounds.
Perfect Customising•Mix and match the expansion packs and optional components to create your ideal set.
•Supports EFNOTE 3/3X/5/5X/7/7X pads.
•Beautiful white sparkle shell finish.
Playing All KIts of the EFNOTE PRO Sound Module
The Tech Spec
| Features | Specification | User Interface | Full Color, Capacitive Touchscreen Display 2x Multi-Function Knob (with Ring LED) 1x Value Knob (with Ring LED) |
|---|---|
| Trigger Interface | 3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat 2-Zone (7x): Tom 1/2/3/4/5, Crash 5(Splash), Crash 6(China) 1-Zone (1x): Kick ELISE™ 2.0 Trigger Sensing Chip |
| Audio / MIDI Interface | Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12) Line Out: 2x 1/4” TS Phone (-10dBV, Unbalanced, +14dBV Max) Phones Out: 1x 1/4” Stereo (320 + 320 mW @32Ω), 1x 1/8” Stereo (320 + 320 mW @32Ω) Monitor In: 2x XLR(F) + 1/4” TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw Line In: 2x 1/4” TS Phone (-10dBV, Unbalanced, +10dBV Max) USB: B Type USB 2.0 Hi-Speed Audio: 12ch Out (48kHz/24bit) / 2ch In (48kHz/16bit), Mac/Windows ASIO MIDI: In/Out Bluetooth: Audio Input (A2DP) Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT) MIDI Out: 5-pin DIN |
| Other Interfaces | Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only) USB (Flash Drive): A Type USB 2.0 (supports flash drive only) USB (For Service): B Type (for service purpose only) |
| Drum Kits / Instruments | Preset Drum Kits: 23 (editable) User Drum Kits: 100 Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements Tru-Aco™ Sound Technology |
| Edit Parameters | Level, Pan, Tuning, Muffling (for each pad) 2-Band EQ (for each pad) Overlay Tone (for each zone) Global Pan (for all drum kits in common) Changable Kit Name Color and Background Kit Image (for each user drum kit) |
| Click | 4x Click Setup Memory Tempo (BPM): 40.0-240.0 (0.1 Step) Beat (Time Signature): 1/4-13/4, 2/8-13/8 |
| Set-List | 15x Set-List (20 slots for each list) Array-style 20 slot buttons Slot Tag Color and Slot Notes feature Tempo and Beat Settings for each slot Each set-list can be saved to a USB flash drive |
| Recorder | Tracks: 15 Resolution: 480 TPQN |
| Buses | 16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R) Bus HPF and EQ (Bus 1-12), Bus Compressor (Bus 1-6) 12x Bus Outputs (12x XLR Analog and 12ch USB Audio) Bus Mixer Main HPF and EQ (Main L/R) |
| Other Features | Inst Expansion Foot Light Ground Lift Switches (for Bus Out and Monitor In) Full Metal Cabinet Guard Handles |
| Dimensions / Weight | Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g Base Unit: 206 (W) x 210 (D) x 238 (H) mm / 3,250 g |
| Power Supply / Current Draw | AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A |
| Accessories | 1x Link Cable 2.0m (EFD-DSUB9-2) 1x AC Adapter (FJ-SW1202000N-EFNOTE) 10x Trigger Cable 3.0m (EFD-TRS-LL3) 1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3) Module Mount Set Smartphone Tray Set Tuning Key Cable Ties Cable Labels Quickstart Guide |
