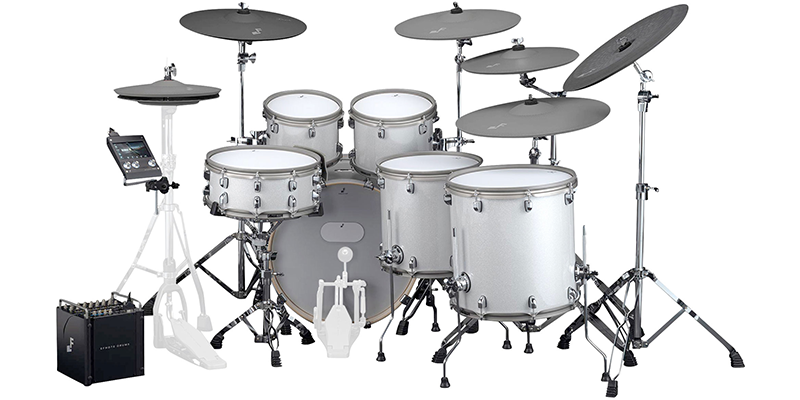

EFNOTE PRO 705 Heavy Set 6-Piece Electronic Drum Kit

Legendary Drum SetsThe delicate resonance of aged shells are newly captured, recorded by EFNOTE. Raw and organic, NOT synthetic and electronic. Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound.

Diverse Cymbal CollectionA rich selection, from bright and crisp modern sounds to dark and soft vintage sounds. Contains modern trash/effect/stacked cymbal sounds.

User Tone (UT)UT is a custom drum tone that can be created with your audio files and added to your sound module. Supports a dynamics-sensitive tone with multiple audio files. All UTs can also be used as Overlay Tones to overlay on any preset drum sounds. Easy to create UTs using the new EFNOTE Desktop Tools app.

Instrument Expansion (IX)A collection of add-on drum instruments for the EFNOTE PRO is now available online from the EFNOTE Desktop Tools app. Quick IX installation and easy slot management are available.

Overlay Tone (Layering)Elements such as tambourines and EDM kicks can be easily layered over each drum sound. Attack Elements for reinforcing the attack. Percussion sounds. eKick, eSnare and eClap sounds.

Innovative Two-Piece DesignThe two-piece sound module provides both operability and expandability required by professionals. Low-profile and compact control surface with touch-screen full-colour LCD. Floor-standing base unit with robust enclosure and reliable cable connections.

Designed for Worship Concerts"Its ability to produce crisp, clear drum tones while keeping stage volume to a minimum has been a game-changer for us." - Rock Harbor Church. Visit Churchfront to learn the real voices of worship drummers.

Discrete Foot Stage LightA foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box. Great for dark stages. Adjustable brightness.

Beautiful Kit Images InspireKit themes that highlight the musicality of each kit. Simple interface design for professionals. High-definition and high-brightness screen.

Easy Left Handed SetupJust like acoustic drums, EFNOTE Drums allow for easy left-handed setting. The Global Pan function makes it easy to adjust sound localization for left-handed setup.

Perfect CustomizingMix and match the expansion packs and optional components to create your ideal set. Beautiful white sparkle shell finish. Consistent pad design. Supports EFNOTE 3/3X/5/5X/7/7X pads.

High-Powered Headphone Amp1x 1/4" jack + 1x 1/8" jack for headphones (can be used simultaneously). Dedicated 2x headphone amp circuit for enough loudness. High quality DAC and audio circuit.

up to 7 Shells and 8 CymbalsBuild a custom kit for any stage. 5x 2-zone input for toms. 6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals. Traditional individual trigger connections (TRS), for professional reliability.

ELISE™ Sensing Processor 2.0EFNOTE have evolved, delivering improved sensitivity for capturing your most delicate touch. The new algorithm for even more natural dynamics.

Full Drum Pad LineupBirch wood shells and 2-ply mesh drum heads. Multi-sensor for hot-spotless and high-resolution sound. 20” and 16” kick drums, 14” and 12” snare drums, 8”, 10”, 11” rack toms, 12”, 13”, 15” floor toms.

“World's First” Cymbal PadsTru-Motion™ 14” hi-hat cymbal. 8” to 20” full size cymbal lineup, the first of their kind. New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK™ mount.

12-ch Buses to the Console12-ch buses, and 12x XLR balanced bus output. Dedicated bus compression for Bus 1 to 6. HPF and 2-band EQs for Bus 1 to 12. Stereo-Link for two adjacent buses. Ground lift switches.

XLR Inputs from the Console2-ch Monitor In (XLR balanced) for monitoring return from the console. 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad. Ground lift switch for Monitor In.

EFNOTE Desktop ToolsAllows for simple and intuitive management of UT and IX. Compatible with Mac and Windows. Visit the V2.0 page to get started.

Remote ControlEFNOTE Tools App available for remote control/file-management. Save and upload kit/trigger/bus settings. Control the bus assign/effect/mix/output settings. Select the drum kit and preview each pad sound.

USB 12-ch Multi-Track RecordingSimultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available. Confirmed with major DAWs. 5-pin DIN MIDI Out.

BluetoothBluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone. Bluetooth MIDI.

Centralized Volume ControlJust press the left knob to access the central volume management window. One-touch switching between Main L/R and Bus Mix L/R monitoring. One-touch mute for Monitor In.

Graphical Bus AssigningGraphical bus assignment helps you setup your intended routing correctly. All Pads can be assigned as both stereo and mono outputs. Click, Line In, Monitor In can be set to a bus individually.

Bus Effect OverviewAllows viewing of each bus’s settings of effects and stereo link in one window. HPF, EQ, Comp, and Stereo-link can be selected ON/OFF at once.

Personalized Mix and Pre MixBus Mixer function allows you to mix the 12-ch buses and monitor them with the best balance for the drummer. Pre-mixing for small stage, with EQ and compression before sending to the console for fewer audio channels.

Drum-Centric Bus CompressionBus Compressor (for Bus 1 to 6) helps you dial in the sound, especially for non-robust PA systems. Designed with a focus on processing speed and accuracy. The attack time can be set to 0 ms.

Bus HPF and Bus EQBus High-Pass Filter and 2-band Bus EQ (for Bus 1 to 12) allow flexible sound correction according to the PA environment.

Bus Gain SwitchesIf necessary, the signal-to-noise ratio can be improved by increasing the gain of each bus.

Output ManagementAttenuator (up to -30dB) for XLR outputs. XLR 5/6 can output Bus Mix L/R instead of Bus 5/6 for a small mixer. XLR 1/2 can also output Main L/R instead of Bus 1/2. Rename-able bus labels.

HPF/EQ for Main L/RHigh-pass filter and 2-band EQ are also available even when using Main L/R for 2-mix audio output.
