EFNOTE 3X Electronic Drum Kit
EFNOTE 3X Electronic Drum Kit 6-Piece Shell and 4-Piece Cymbal Set with EFD-3X Sound Module
Email me when the availability or price changes
Finance this product
- From £64.54 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £57.17 / month (APR 15.9%)
3X Electronic Drum Kit
EFNOTE - EST-3X

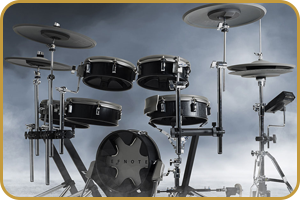

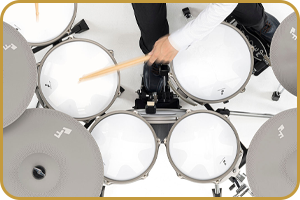

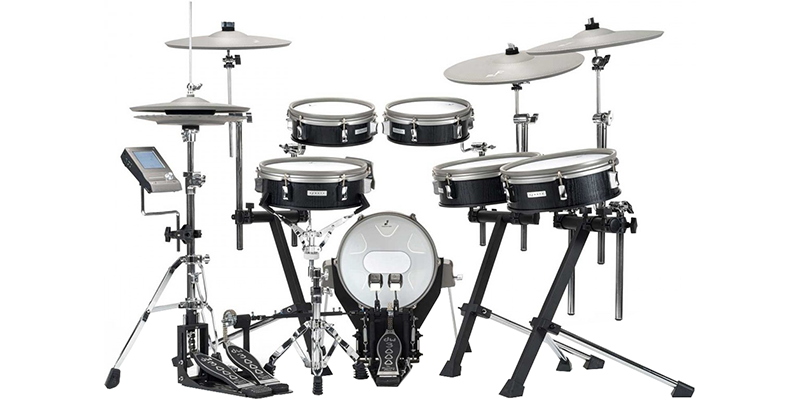

The Ultimate PerformanceThe EFNOTE 3X Electronic Drum Kit comes as a 6-piece kit in a stunning black oak-ish finish, with hi-hat, 2x crash cymbals and a ride cymbal. This kit is designed to reproduce the sound and feel of an acoustic kit, while keeping all the benefits of an electronic kit. All the full stereo acoustic drum/cymbal samples are recorded and mastered by EFNOTE themselves. The included sound module features a touch screen user interface with a high quality DAC and audio circuit and high power headphone amplifier. Equipped for the studio and small gigs, you get plenty of recording, practice and performance features for you to immerse yourself in and take your drum journey to the next level.
Amazing Features

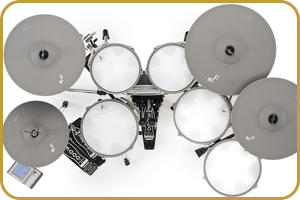

• 6-piece shell and 4-piece cymbal set
• Drum module with aluminium housing
• LCD touch screen
• 111 multilayer sounds
• 16 preset kits, 34 user kits
• Metronome
• Onboard Recording & Rhythm Box
• 50 recording user songs
• Built-in 8 Out / 2 In USB audio interface
• Bluetooth and USB for MIDI In/Out
• MIDI Out
• 3.5 mm jack stereo headphone output
• Bluetooth receiver
Please note: Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.
EFNOTE 3X : The Ultimate Performance
The Full SpecSpecially full-expanded based on EFNOTE 3. 6-piece shell and 4-piece cymbal set. Dignified black oak-ish finish Full stereo drum/cymbal sounds. USB Audio/MIDI, Bluetooth, Remote App available.
Hi-Tuned Performance14" 2-piece hi-hat cymbal, 16"/18" full-sized cymbals, 12" mesh snare pad, 4x 10"/12" mesh tom pad, 12" mesh kick pad, Innovative independent rack stands.

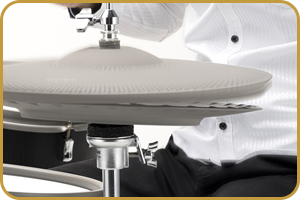

Finest Hi-Hat Cymbals14" top/bottom cymbals. World's first multi-optical sensing to capture the motions in 3D. Tru-Motion™ technology for expressiveness leap. 360° free-swinging top/bottom cymbal design.

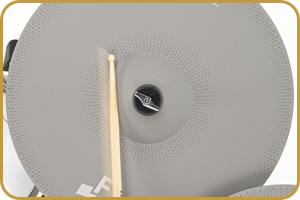

18" Full Ride Cymbal18" ride cymbal, 3-zone (bow/edge/cup). Multi-sensored 360° play/choke area. 360° free-swinging design. Responsive thin edge.
3-Zone Crash Cymbals2x 16" crash cymbal, 3-zone (bow/edge/cup). Multi-sensored 360° play/choke area. 360° free-swinging design. Responsive thin edge.
Beautiful Cymbal SurfaceElegant warm-gray surface with fine engravings. Clean silicone rubber surface that is resistant to drumstick marks.

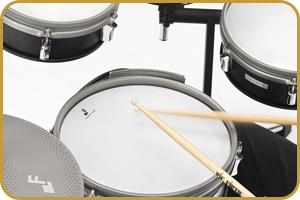

Monocoque Drum Shells10 x 3.5" and 12 x 4", 6 lugs, 2ply mesh drum heads. Monocoque FRP shell for stiffness and durability. Multi-sensor for hotspotless and high-resolution sounding. Suspended tom mount.

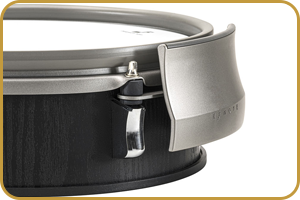

Independent Side-RimEasy, intuitive and reliable. No switch operation required. Elegant arc design.

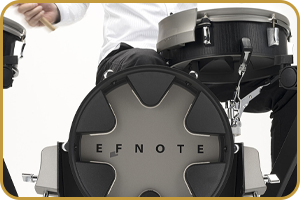

Solid and Stable Kick12 x 4", 6 lugs, 2ply mesh drum head. Monocoque FRP shell for stiffness and durability. Stable multi-sensing for single/double beater(s). Rugged spars with rubber/spike tips.
λ (Lambda) TripodsEasy and flexible setup with independent rack stand design. Stable metal tripod stands.
Sound Module

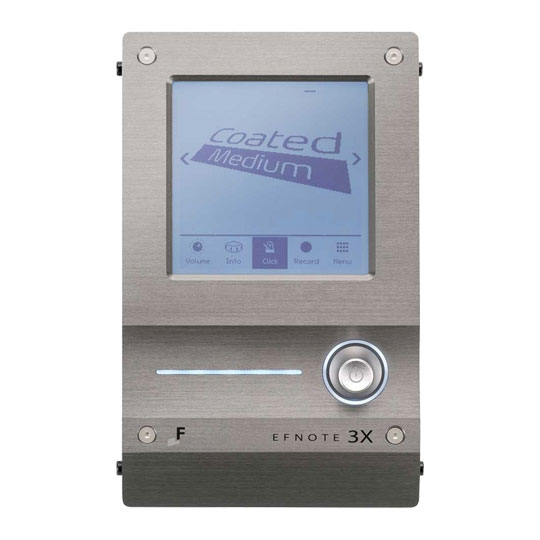

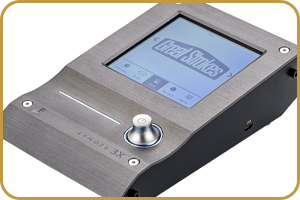

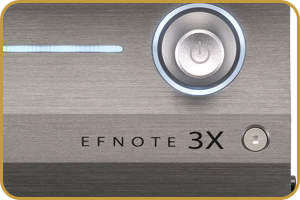

Ultra-Compact Sound ModuleUltra-small form factor with uncompromised features. Metal chassis and aluminum finish. High quality DAC and audio circuit. High power headphone amplifier. Touch screen intuitive user interface.
ELISE™ Sensing ProcessorCapturing drummer's intentions from each stroke. Low latency, wide dynamic-range, consistent and stable sensing. Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads.
Full-Scale Acoustic SoundFull stereo acoustic drum/cymbal samples recorded by EFNOTE. Tru-Aco™ sound technology provides real drum/cymbal sound behaviors. Raw sound without resynthesis.
For TrainingMulti-function metronome with beat LED indicator. Built-in metronome speaker for daily training without headphones. On-board drum recording function (15 tracks). Stroke Analyzer. Rhythm Box feature provides over 90 basic drum beats.
For RecordingUSB 8-ch individual audio outputs with Mac / Windows (ASIO). USB 2-ch audio inputs for playback. Analogue 4-ch audio outputs. USB MIDI in/out with individual MIDI channels. MIDI output (5-pin DIN).
For Small GigsSetlist feature enables you to configure kit order with tempo for each song. Kick and Snare can be output individually with analogue 4-ch outputs. Click and Audio-In can be assigned only for headphones. High-power headphones output.MIDI output (5-pin DIN).
Stroke Analyzer"Stroke Scope" displays your strike points on time-line. "Accuracy Score" estimates your strike accuracy.
Sound EditTuning, Muffling, 2-band EQs for each pad. Pad layer function can overlay two sounds. User Inst Library enables you to store 128 customized instruments. On-board reverb. Dedicated level control screen.
Flexible Audio Routing10-ch output buses. Flexible output routing for each pad. Output assignable click. Output: 4-ch analogue / 8-ch USB. Input: Analogue / Bluetooth / 2-ch USB.
BluetoothBluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone. Bluetooth MIDI. EFNOTE Tools App for remote control.
Various Optional ComponentsFull compatible various Optional Components. Off-the-shelf drum hardware available.
EFNOTE Tools AppBackup, restore, and share your favourite drum kits with your smartphone. Visit the official Kit Library to get new drum kits. Sound level balance can be adjusted remotely.
The Tech Spec
| Features | Specification |
|---|---|
| Drum Kit | EFD-K12P (Kick) | Size: 12 x 4" Finish: Black Oak-ish Zone: Head Sensor: Multi Head: Low-rebound double-layered mesh with beater patch Connector: Head (TRS Phones) Features: Angle-adjustable kick pedal attachment |
| EFD-S12P (Snare) | Size: 12 x 4" Finish: Black Oak-ish Zone: Head / Rim / Side-Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim, Side-Rim (2x TRS Phones) Features: Monocoque drum shell, Colored hoop rubber, Side-Rim |
| EFD-T10P (Tom 1/2) | Size: 10 x 3.5" Finish: Black Oak-ish Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Monocoque drum shell, Coloured hoop rubber, Suspended tom mount |
| EFD-T12P (Tom 3/4) | Size: 12 x 4" Finish: Black Oak-ish Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Monocoque drum shell, Coloured hoop rubber, Suspended tom mount |
| EFD-H14 (Hi-Hat) | Size: 14" (Top/Bottom) Colour: Warm gray Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) / Optical Connector: 6-pin Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used. |
| EFD-C16 (Crash 1/2) | Size: 16" Colour: Warm gray Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface |
| EFD-C18 (Ride) | Size: 18" Color: Warm gray Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface |
| EFD-3X Sound Module | |
| Trigger Interface | 3-Zone: Snare, Crash 1/2*, Ride 2-Zone: Tom 1/2/3/4, HH, Crash 3 1-Zone: Kick |
| Audio / MIDI Interface | Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced) Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω) Audio Input: Stereo Mini-Phone (+2dBu Max) USB: Micro-B Type USB 2.0 Hi-Speed Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO MIDI: In/Out Bluetooth Audio Input Bluetooth MIDI In/Out MIDI Out: 5-pin DIN |
| Drum Kits / Instruments | Preset Drum Kits: 16 (Editable) User Drum Kits: 34 Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements User Inst Library: 50 (Can be stored customized instruments) |
| Edit Parameters | Level, Pan, Tuning, Muffling (for each pad) 2-Band EQ (for each pad) Ambience Effect (8 types) Pad Layer |
| Dimensions | 106 (W) x 172 (D) x 47 (H) mm |
| Weight | 700g |
| Tripods / Stands | |
| Tripods | 3x Lambda Tripod |
| Snare Drum Stand | For 12" to 14" diameter snare drums Geared basket tilter Double braced legs Tube diameter: φ19.1 mm (3/4") Height adjustment range: 500 -- 650 mm |
| Tom Holder | 4x Tom Holder Arm Geared L-rod tilter Knurled carbon steel rod L-rod diameter: φ11.5 mm (7/16") Tube diameter: φ22.2 mm (7/8") Height adjustment range: 550 -- 900 mm |
| Cymbal Arm | 3x Boom Cymbal Arm Gearless tilter Cable holder Tube diameter: φ22.2 mm (7/8") Boom length: 300 mm Height adjustment range: 650 -- 1250 mm |
| Sound Module Arm | 1x Sound Module Arm 1x Smartphone Tray |
| Accessories | Brake-Out Cable: EFD-MULTI-A-X Brake-Out Cable: EFD-MULTI-B 4x Trigger Cable 3.0 m: EFD-TRS-LL3 Cable Ties Quickstart Guide |
