Dynatron Z60 Black 1.5U Server Radial Intel CPU Air Cooler
Dynatron Z60 Radial Air CPU Cooler, 1.5U, Black, 80mm PWM Fan, Double Ball Bearing, Aluminium Fins, 1700
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

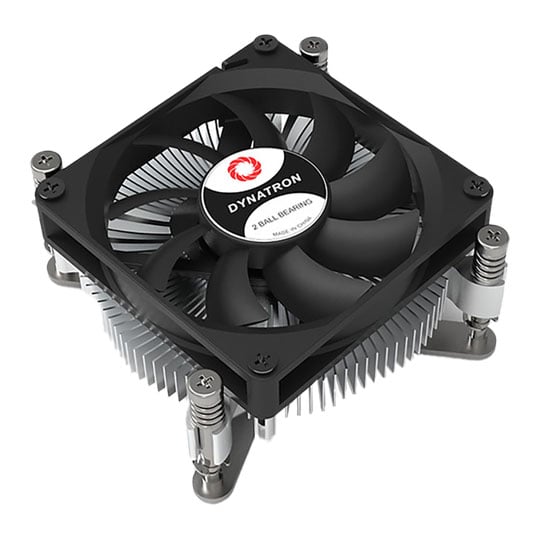

Low-Profile Intel Server Cooling
The Dynatron Z60 is a compact CPU cooler for Intel processors using the LGA1700 socket, built for 2U server systems and above. Measuring just 93 x 93 x 31.3 mm and weighing 185 ±5 g, its low-profile design suits space-conscious server configurations.

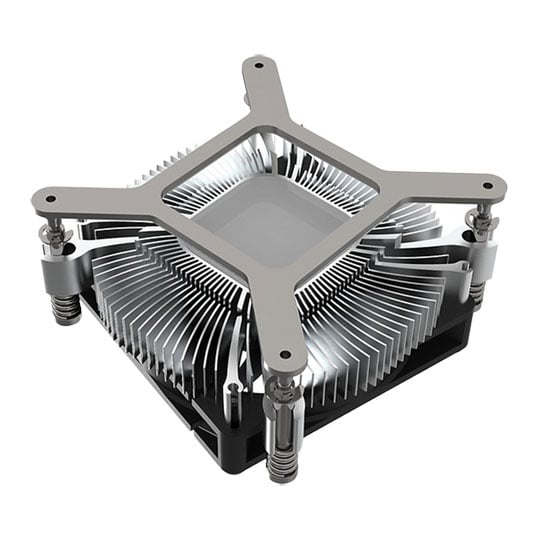

Aluminium Radial Fin Heatsink
An extruded Aluminium 6063-T5 radial fin heatsink provides the main cooling surface, paired with an 80 x 80 x 15 mm fan. The lightweight 185 g construction keeps the cooler compact while providing an effective solution for Intel server CPUs.

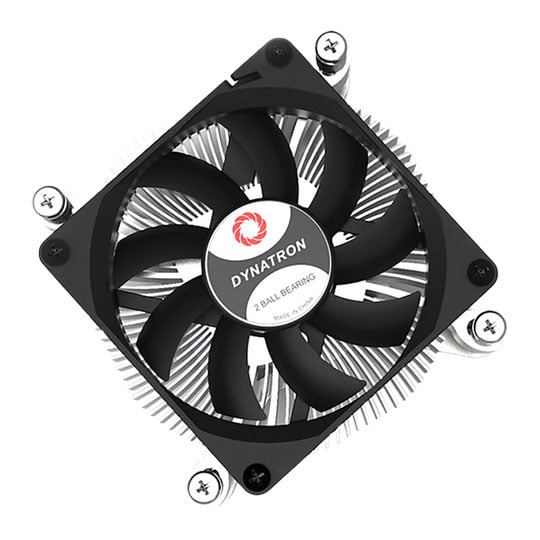

Quiet 80mm Cooling
The 12V double-ball-bearing fan runs from 800 RPM at 0–20% duty cycle to 2500 RPM at full duty, delivering up to 30.80 CFM of airflow and 2.60 mm-H2O static pressure. Noise levels remain between 16.0 and 27.3 dBA across the rated duty cycles.
PWM Fan Control
A four-pin connection provides power, tachometer/signal output, and PWM control, allowing fan speed to be managed according to system requirements. Power consumption ranges from 0.36 W at 0–20% duty to 2.4 W at 100%.
Built for Long-Term Server Operation
The Z60 uses M3 screw mounting with an installation torque of 5–7 in-lb. Its fan is rated for 70,000 hours of continuous operation at 40°C (104°F), making it suited to long-running server environments.
• 2U-and-up server CPU cooler for Intel LGA1700.
• Built for Intel Core 12th Gen, 13th Gen and 14th Gen processors.
• Aluminium 6063-T5 extruded radial fin heatsink.
• 80 x 80 x 15 mm double-ball-bearing fan.
• 800–2500 RPM across 0–100% duty cycle
• Up to 30.80 CFM airflow and 2.60 mm-H2O static pressure.
• 16.0–27.3 dBA noise level.
• 12V four-pin PWM fan connection with tachometer/signal output.
• 0.36–2.4 W power consumption.
• 70,000-hour continuous operating life at 40°C.
• M3 screw mounting with 5–7 in-lb installation torque.
