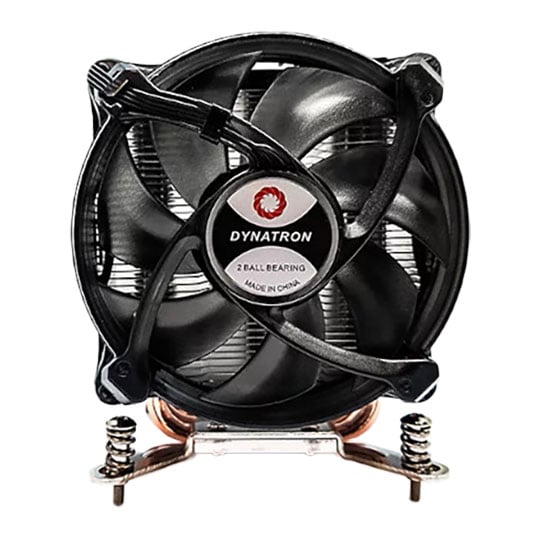

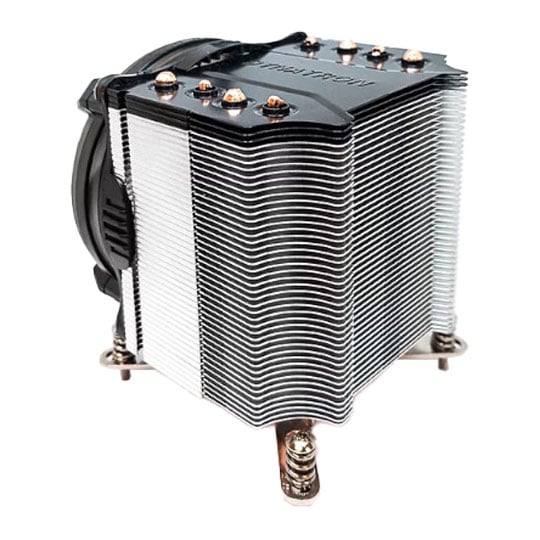

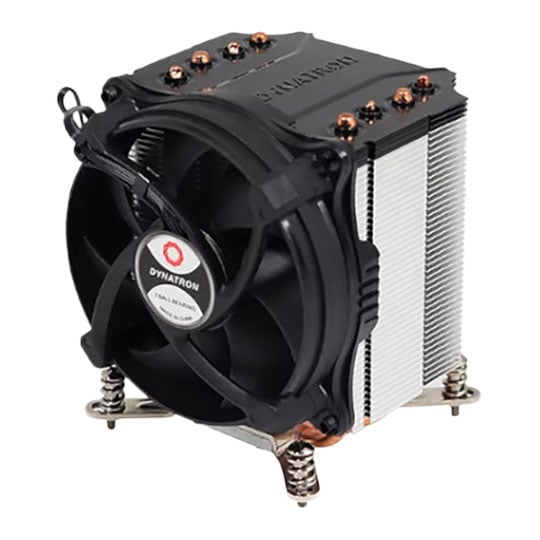

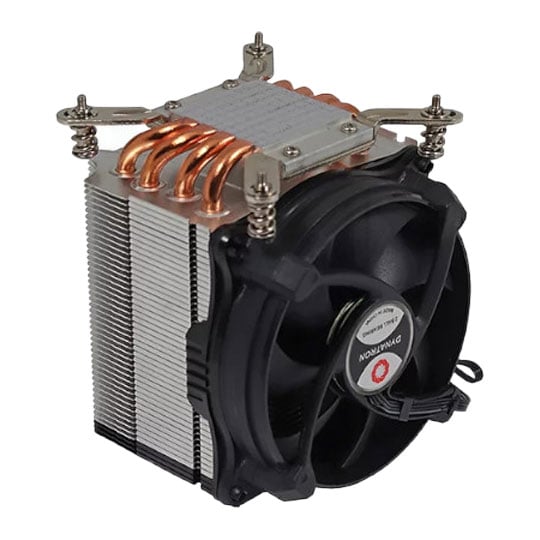

Dynatron Q6 Black 3U Server Radial Intel CPU Air Cooler
Dynatron Q6 Air CPU Cooler, Black, Single Tower, 4 Heatpipes, 1x 92mm PWM Fan, Aluminium / Copper
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Single-Tower Cooling for 3U
The Dynatron Q6 is a single-tower CPU cooler designed for 3U servers and above, as well as workstation systems. Measuring 91.0 x 91.0 x 110.0 mm, its taller tower format provides a larger cooling structure while remaining suitable for compatible server and workstation chassis.
Four Heatpipes with H.C.C. Technology
The Q6 uses four heatpipes with H.C.C. Technology alongside an aluminium fin array to transfer heat away from the processor and through the tower. The cooler weighs 539 ± 5 g, giving it a substantial cooling assembly for higher-clearance systems.
92 mm High-Speed Fan
A 92 x 25 mm fan provides the airflow, operating at 1,200 ± 200 RPM at 0–20% duty cycle, 2,850 ± 10% RPM at 50%, and up to 6,000 ± 10% RPM at full speed. Airflow reaches 21.45 CFM, 48.83 CFM and 107.25 CFM respectively, while air pressure reaches up to 17.10 mm-H2O.
Flexible Cooling Performance
The 12V, dual-ball-bearing fan delivers low noise at lower operating speeds, measuring 15.50 dBA at 0–20% duty cycle and 26.0 dBA at 50%, rising to 46.50 dBA at full speed. Power consumption ranges from 0.6W to 1.8W and 12.0W across the same duty-cycle levels, with four-pin PWM and tachometer/signal connectivity.
Intel LGA1851 and LGA1700 Support
The Q6 is compatible with Intel® Core™ 12th–15th Gen processors using the LGA1851 and LGA1700 sockets. Installation uses M3 screws with a recommended torque of 5–7 in-lb, while the fan is rated for 70,000 hours of continuous operation at 40°C (104°F).
• 3U-and-up server and workstation cooling solution with LGA1851 and LGA1700 CPU socket support.
• For Intel Core 12th, 13th, 14th and 15th Gen processors.
• Aluminium fins with four heatpipes and H.C.C. Technology
• 92 x 25 mm 12V dual-ball-bearing fan; up to 6,000 ± 10% RPM
• Up to 107.25 CFM airflow and 17.10 mm-H2O air pressure
• 15.50–46.50 dBA noise range across 0–100% duty cycle
• Four-pin PWM connection with tachometer/signal output
• 70,000-hour continuous operating life at 40°C (104°F)
• M3 screw mounting with 5–7 in-lb installation torque
