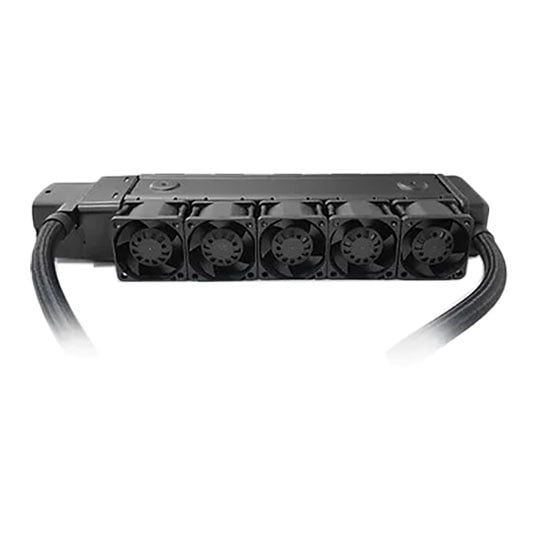

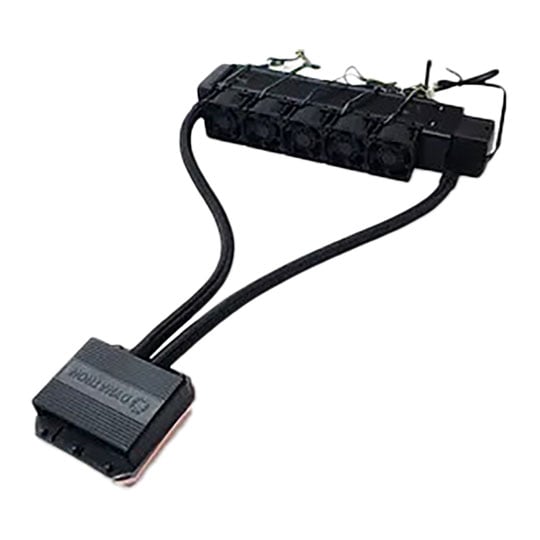

Dynatron TL33 Water Cooling Multi Socket Low Profile All in One Liquid Server CPU Cooler
Dynatron L3 Low Profile AIO Hydro CPU Cooler, Black, 5x 40mm Fans, 1U Server, Intel / AMD
Email me when the availability or price changes
Finance this product
- From £10.84 / month (APR 0%) for 12 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High-Capacity Liquid Cooling for 1U Servers
The Dynatron TL33 is a liquid cooling solution for Intel and AMD processors, designed for 1U servers and above. It supports CPU power levels of up to 280W for Intel and 185W for AMD, making it suited to high-performance server platforms with demanding thermal requirements.
Compact Liquid Cooling Design

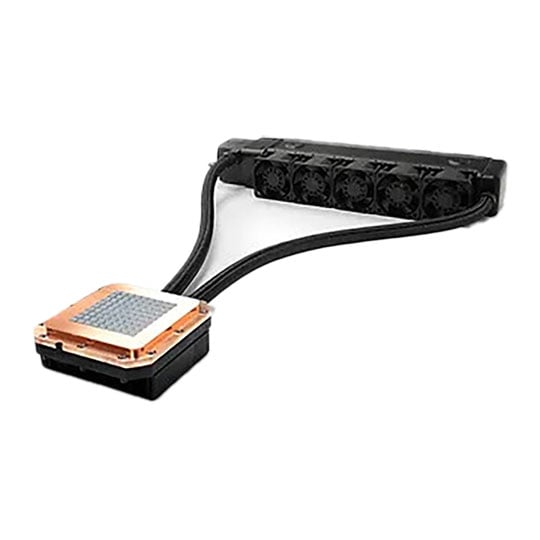

The TL33 combines a copper-base cold plate, space-saving lightweight radiator and standalone water pump. The pump delivers a flow rate of 3.2 litres per minute, providing a high rate of coolant circulation within the compact 1U-compatible design.
Extreme-Speed 40 mm Fans
The 40 x 40 x 28 mm fans operate at 3,300 ± 10% RPM at 20% duty cycle, rising to 15,000 ± 10% RPM at 50% and 26,000 ± 10% RPM at 100%. Airflow reaches 4.74 CFM, 21.53 CFM and 37.32 CFM respectively, while air pressure rises from 1.612 mm-H2O at 0–20% duty cycle to 33.30 mm-H2O at 50% and 100.06 mm-H2O at full speed.
High-Speed Fan Requirements
The fans use a 12V supply and dual-ball bearings, with power consumption rated at 0.72W at 20% duty cycle, 6W at 50% and 22.80W at 100%. Due to the high current consumption at full speed, each fan requires its own fan header. Noise levels range from 19.35 dBA at 20% duty cycle to 52.23 dBA at 50% and 64.17 dBA at full speed.
Broad Intel and AMD Compatibility
The TL33 supports Intel® LGA115X, LGA1200, LGA1356, LGA1366 and LGA1700 sockets, alongside AMD® AM4, AM5, FM2+, FM2, AM2, AM2+, AM3, AM3+ and FM1 sockets. Its four-pin fan connection provides negative, positive, tachometer/signal output and PWM connections.
• 1U all-in-one cooling solution with copper-base cold plate and space-saving lightweight radiator.
• Intel LGA1851/1700, LGA1200/115X socket support.
• AMD AM4/AM5/FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1 socket support.
• 5x 40mm cooling fans with four-pin PWM connectors and dual-ball bearings.
• Fan speeds from 3,300 ± 10% RPM at 20% duty cycle to 26,000 ± 10% RPM at 100%.
• Airflow up to 37.32 CFM at 100% duty cycle.
• Noise levels from 19.35 dBA at 20% duty cycle to 64.17 dBA at 100%.
• CPU TDP support up to 250W and above.
• Thermal compound comes pre-printed.
