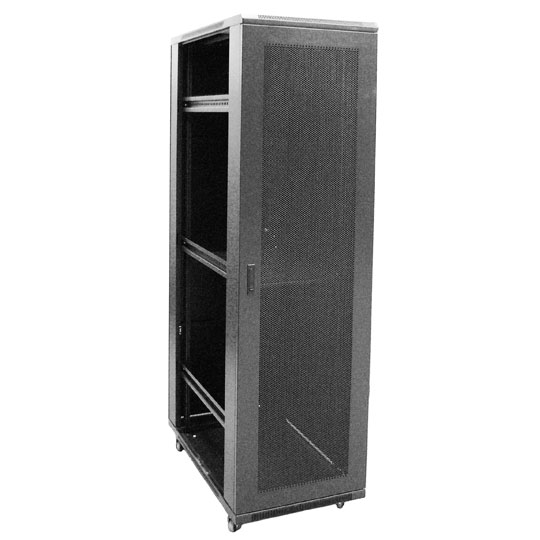

Dynamode 27U Floorstanding Server Cabinet
Dynamode 27U 19" 800x1000 Floor Standing Server Cabinet / Rack
Email me when the availability or price changes
Dynamode 27U Floorstanding Server Cabinet
Offering excellent quality coupled with value for money, this Server Enclosure range is ideal for your IT installation, no matter how big or small. Designed to the exacting standards, the Server Enclosure range offer total Server and high valued IT device containment coupled with ease of installation and post maintenance. Used throughout both Public and Private Sector installations across the UK and Europe, the server cabinets include genuine useful features such as superior hot air venting (both passive and active), heavy duty vertical uprights (both front and back) which can be fully adjusted and multiple cable entry points for correct cable placement. Using Universal mount system means that almost any Server, 19" Network device, Telco/PBX device and of course passive patching systems can be quickly added as and when needed. Apart from the standard 600mm(w) x 1000mm(d) design, the Enclosure is also available as an 800mm(w) x 1000mm(d) design for installations which need more space for cable patching, etc.
Please note this is shipped ready-assembled strapped to a pallet
Flatpack option available with additional Carriage surcharge (Strapped across two pallets - upto £80) This applies to flatpack shipments to UK Mainland (up to Glasgow) or AB, PA, IV, KA , KW, PH postcodes and Northern Ireland Cost depending on postcode and area
Curbside palletised delivery - forklift is recommended
Please enquire via the Call Centre for the correct shipment charges to your area
• Standard, UK Type Free Standing Enclosure
• Dimensions: w800 x d1000 x h1370 (mm), weight 115kg
• Supplied with 4 Way Rooftop Fan tray, Fixed Shelf, Castors, Levelling Feet, M6 Cage Nuts and Front Vertical Cable Management (Left/Right)
• Up to 500kg static load capacity
• Welded steel frame
• Lockable tempered glass front door, the border with integral slotted air vents
• Lockable steel rear door
• Keys supplied as standard
• Front and rear doors are fully reversible instantly
• Removable side panels with latch, optional lock
• ETSI standard 19” front and rear adjustable vertical profiles
• Front, rear and top vented slots for improved air flow
• Multiple cable entry (gland plates) in the base of the cabinet (slotted for precise cable fit)
• Integral Electrical Earth connection
• Adjustable Jacking Feet and Castors are supplied as standard
• Supplied and fitted vented Shelf
• Supplied and fitted “roof mount” Fan Tray (populated)
• Supplied Cabinet nuts and bolt fixings for devices
• Black Ral 9005 powdered coated finish
• Include complete integral vertical cable management system for cable routing
• Various accessories available
Complete Server Cabinet Solutions –with all the basic accessories you need:
• Fixed Vented Shelf
• 4 Way Roof Top Fan Tray
• Castors & Leveling Feet
• Bag of M6 Nuts & Screws
• Front Vertical Cable Management with cover
Standard:
• Comply with ANS/EIA RS -310-D, IEC297-2, DIN41491 PART1, DIN41491 PART7, GB/T3047.2-92 Standard
Material:
• SPCC quality cold rolled steel
• Thickness: Mounting profile: 2mm
Degree of protection:
• IP20
Surface Finish:
• Degreasing
• Picking
• Phosphating
• Powder Coated
