Multichannel Power Amplifier for Commercial Installations

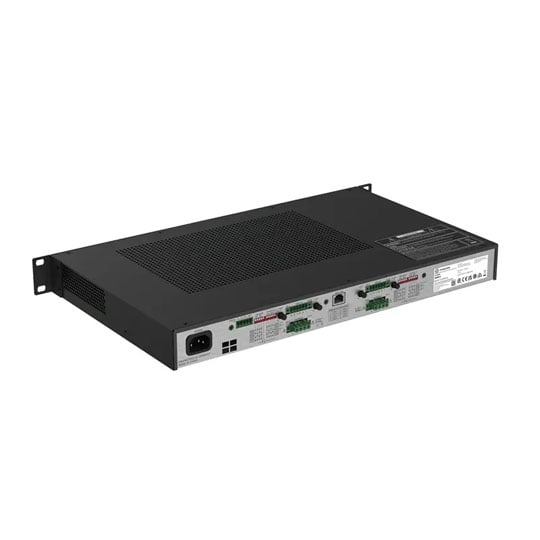

Dynacord - V600:4
4-Channel Amplifier
System installers and integrators looking for a flexible multichannel amplifier will be pleased with the Dynacord V600:4, a lightweight 4-channel amplifier well suited for background music and announcements in small to midsized commercial installations. With its low energy consumption and flexible power-load allocation, the V600:4 provides easy and trouble-free performance with a reduced cost of ownership.
Notable features include powerTANK, which provides a reservoir of power while the Variable Load Drive (VLD), ensures the powerTANK provides consistent power to any channel with any impedance. The built-in DSP handles input routing and provides HPF, LPF, and peak limiting per channel. The amplifier is equipped with a PFC power supply and protection to ensure reliable and safe operation for years to come.
at a glance
• 4‑channel amplifier, with a total powerTANK
capacity of 600 W
• dualCOOL convection cooling with additional
intelligent fan in case of extreme thermal
conditions
• ecoRAIL and APD deliver significant reduction
in power consumption
• Variable Load Drive (VLD) providing the same
power into 4 Ω, 8 Ω, 70 V or 100 V
• amp‑LINK single cable solution for easy
installation
ideal for
• Supermarkets
• Bars and restaurants
• Retail outlets
• Education
• Houses of worship
• Museums and galleries
• Transport hubs
• Conference centers
Dynacord V600:4
Features
powerTANKpowerTANK is a reservoir of available amplification power that is deployed flexibly across the 4 channels of the amplifier. There is no need to set up the powerTANK as it adapts to the requirements of each zone or output without extra manual configuration of each individual channel.
ecoRAILecoRAIL’s power consumption is similar to a regular standby level, yet ecoRAIL still produces audio output suitable for background music levels, and the Auto Power Down (APD) mode can be engaged to further reduce power consumption to less than a watt when there is no signal present for extended periods.
amp‑LINKThe single cable installation feature of amp‑LINK is compatible with AES72‑1E (RJ45 connectors) wired devices. This solution provides easy installation for all four channels without needing to wire all the connections individually
Variable Load DriveVariable Load Drive (VLD) ensures that the powerTANK capacity is utilized efficiently, providing consistent power to any channel with any impedance.
dualCOOLThe dualCOOL thermal design means that the amplifier typically operates as a convection cooled amplifier, but in extreme thermal conditions the amplifier is also equipped with an intelligent multi‑speed fan to ensure maximum performance and reliability in any application.
PFC power supplyEquipped with a PFC power supply and protection features usually reserved for the professional power amplifiers, means that the amplifier resists complete shutdown situations and will always perform at its best under all conditions.
The Tech Spec
| Features | Specification | Number of Channels | 4 |
|---|---|
| Power Rating | 4 Ohms / 8 Ohms / 70 V / 100 V: 4 x 150 W per Channel 4 Ohms / 70 V: 1 x 500 W One Channel Driven (1 kHz) 8 Ohms / 100 V: 600 W One Channel Driven (1 kHz) |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | 4 / 8 Ohms per Channel 70 V (33.2 Ohms) 100 V (36.2 Ohms) |
| Protections | DC Fault, DC Offset, Output Limiter, Overcurrent, Overvoltage, Power Supply, RF, RMS, Short Circuit, Thermal, Ultrasonic, Undervoltage |
| Frequency Response | 20 Hz to 20 kHz -3 dB |
| Input Impedance | 20 Kilohms (Balanced) |
| Max Gain | 30 dB (at 2 Ohms) 33 dB (at 4 Ohms) 39.2 dB (at 70 V) 42.2 dB (at 100 V |
| Max Input Level | 18 dB |
| SNR | > 98 dB (at 4 Ohms) > 100 dB (at 8 Ohms) > 101 dB (at 70 V) > 103 dB |
| THD+N | < 0.1% |
| Crosstalk | < -70 dB (4 Ohm) < -75 dB (8 Ohm) < -90 dB (70 V) < -95 dB (100 V) |
| Analog Audio I/O | 2 x Block 6-Pin Balanced Line Input 1 x Proprietary 5-Pin Remote Input 2 x Block 4-Pin Speaker Output |
| Digital I/O | 1 x RJ45 Amplink Input (I/O, Network) |
| Rackmount Size | 1 RU |
| Dimensions | 19.0 x 10.6 x 1.7" / 48.3 x 26.9 x 4.3 cm |
| Weight | 3.6 kg |
