8‑Channel Compact Power‑Mixer

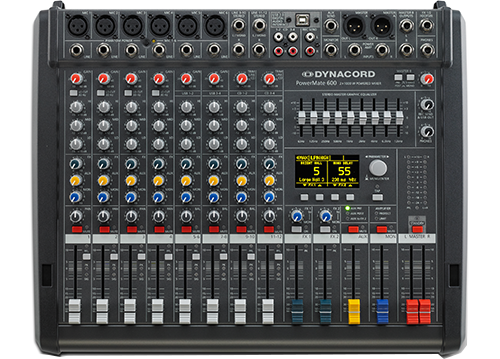

Dynacord - PowerMate 600-3
THE BEST IN GERMAN DESIGN & BUILDThe PowerMate compact power mixers incorporate profound know-how, based on our research, development and inter-communication with our customers in the professional audio market, for decades.
It incorporates not less than six dedicated audio devices into one compact frame: mixing console, two effects units, graphic equalizer, USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand-alone device. The PowerMate is a real all-rounder for almost all applications with maximum feature set at minimum size.
The mixing section starts with 6 lowest noise, discrete microphone preamps. 3 auxiliary busses, one of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. Further, each preset can be edited and stored to 20 User memories.
The 9 band stereo graphic equalizer allows precise tone control for speakers and room matching.
The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class-D output stage, it’s very efficient and lightweight, too. An optional speaker protection allows limitation of long-term power without giving up dynamics.
9-BandGraphic EQ
2 x 1000W RMSat 4ohms
100xFactory Effects
at a glance
• Mixer with 8 input channels (4 Mic/Line + 2 Mic/Stereo-USB + 2 Stereo-Line)
• Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
• 2 High-Quality editable effects, 100 factory and 20 user presets
• Lightweight (9.5 kg) road-ready package with extra-robust plastic cover-lid
suitability
• A versatile powered mixer suitable for almost any application requiring power to passive speakers
The Tech Spec
| Features | Specification | Channels | 4 x Mic/Line 2 x Mic/Stereo-USB 2 x Stereo-Line |
|---|---|
| Auxiliary | 1 x Pre 1 x Post 1 x Pre/Post Switchable |
| Output Power | Max Single Channel, Dynamic-Headroom, IHF-A: Into 2.66 Ohms: 2 x 1600 W Into 4 Ohms: 2 x 1250 W Into 8 Ohms: 2 x 675 W Max Single Channel, Continuous, 1 kHz, THD = 1%: Into 2.66 Ohms: 2 x 1350 W Into 4 Ohms: 2 x 1150 W Into 8 Ohms: 2 x 650 W Max Midband, 1 kHz, THD = 1%, Dual Channel: Into 2.66 Ohms: 2 x 1350 W Into 4 Ohms: 2 x 1000 W Into 8 Ohms: 2 x 600 W Rated, 20 Hz to 20 kHz, THD < 0.5%, Single Channel: Into 4 Ohms: 2 x 900 W Into 8 Ohms: 2 x 450 W |
| Maximum Output Voltage | Power Amplifier, 1 kHz, No Load: 74 V rms |
| Maximum THD @ 1kHz | MBW = 80 kHz: MIC Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005% Power AMP Inputs to Speaker L/R Outputs: < 0.075% |
| DIM 30 | Power Amplifier, 3.15 kHz, 15 kHz: < 0.05% |
| IMD SMPTE | Power Amplifier, 60 Hz, 7 kHz: < 0.15% |
| Frequency Response | -3 dB, ref. 1 kHz: Any Input to Any Mixer Output: 15 Hz to 70 kHz Any Input to Speaker L/R Output: 20 Hz to 30 kHz |
| Crosstalk @ 1 kHz | Amplifier L/R: < -85 dB Channel to Channel: < -80 dB Mute- and Standby-Switch Attenuation: > 100 dB Fader and FX/AUX/MON-Send Attenuation: > 85 dB |
| CMRR | MIC Input, 1 kHz: > 80 dB |
| Input Sensitivity | All Level Controls in Max Position: Microphone: -74 dBu (155 µV) Line (Mono): -54 dBu (1.55 mV) Line (Stereo): -34 dBu (15.5 mV) CD (Stereo): -34 dBu (15.5 mV) Power AMP Inputs: +8 dBu (1.95 V) |
| Maximum Level | Mixing Desk: Microphone Inputs: 11 dBu Mono Line Inputs: 31 dBu Stereo Line Inputs: 31 dBu All Other Inputs: 22 dBu All Other Outputs: 22 dBu |
| Input Impedances | Microphone: 2 Kilohms CD Input: 10 Kilohms All Other Inputs: > 15 Kilohms |
| Output Impedances | Phones: 47 Ohms All Other Outputs (Balanced/Unbalanced): 150 Ohms / 75 Ohms |
| Equivalent Input Noise | Microphone Input, A-Weighted, 150 Ohms: -130 dBu |
| Noise | Channel Inputs to Master A L/R Outputs, A-Weighted: Master Fader Down: -100 dBu Master Fader 0 dB, Channel Fader Down: -92 dBu Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -82 dBu |
| Signal / Noise | Power Amplifier, A-Weighted, 4 Ohms: 105 dB |
| Output Stage | Amplifier: Class-D |
| Equalization | LO Shelving: ±15 dB / 60 Hz MID Peaking: ±12 dB / 2.4 kHz HI Shelving: ±15 dB / 12 kHz Master EQ 9-Band (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 6.3 kHz, 12 kHz): ±10 dB / Q = 1.5 to 2.5 |
| Filter | LO-CUT, Mono Inputs: f = 80 Hz, 18 dB/oct., Switchable Speaker Processing: LPN, Switchable |
| Effects | Type: Dual Stereo 24/48-Bit Multi-Effects Processors Effects Presets: 100 Factory + 20 User, Tap-Delay Remote Control: Footswitch, MIDI |
| Display | 128 x 64 pixels, OLED |
| Digital Audio | Channels: 4 x Inputs / 4 x Outputs AD/DA Conversion: 24-Bit Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz PC Interface: USB 2.0, Female Type-B Peak Display: 6 dB Before Clip |
| MIDI Connectors | 1 x 5-Pin DIN, Input / Output |
| Power Control | Output: Adjustable Longterm RMS Limiter |
| Protection | Mixer Outputs (Relay Controlled): AUX, MON, MASTER A L/R Amplifier: Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On Delay, Back EMF Switching Mode Power Supply (µC controlled): Inrush Current Limiters, Mains Over/Undervoltage, Mains Overcurrent, High Temperature |
| Cooling | Continuous Speed-Controlled Fans |
| Phantom Power | Switchable: 48 VDC |
| Power Requirements | SMPS with Auto Range Mains Input: 100 to 240 VAC, 50/60 Hz |
| Power Consumption | At 1/8 Maximum Output Power, 4 Ohms: 450 W |
| Safety Class | I |
| Ambient Temperature | 40 to 105°F / 5 to 40°C |
| Dimensions | 17.3 x 6.4 x 14.3" / 438.8 x 161.7 x 362.5 mm (with Lid) 19 x 5.3 x 12.2" / 483 x 135.8 x 310.3 mm (7 RU, Rackmount) |
| Weight | 19.8 lb / 9 kg (without Lid) 20.9 lb / 9.5 kg (with Lid) |
