Dynacord - L2800FD-UK DSP 2 x 1400 w Power Amplifier For Live Performance Applications
Dynacord - L2800FD-UK DSP Power Amplifier 2 x 1400W @ 4 ohms with FIR Drive
DSP 2 x 1400w Power Amplifier

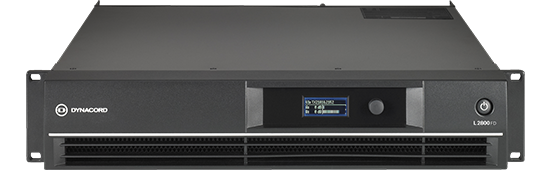

Dynacord - L2800FD
DSP 2 x 1400 w power amplifier for live performance applications
Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability.

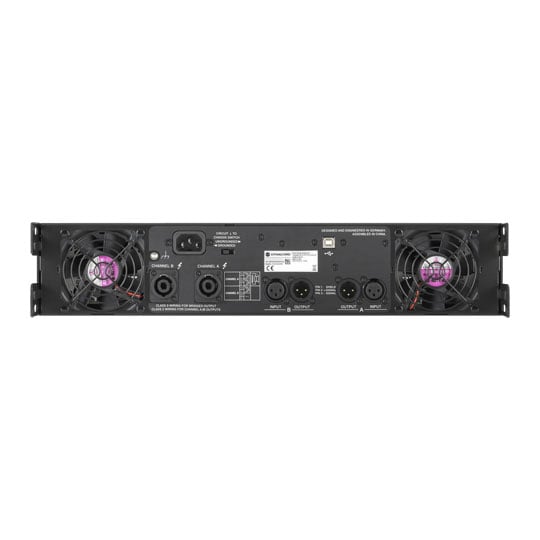

The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
at a glance
• Professional DSP amplifier for live and mobile application
• Market-leading acoustic performance and rock solid reliability
• Fully integrated professional speaker processing with FIR drive technology
• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
• Powerful Control Software
• Engineered in Germany
Dynacord Two-Channel Power Amplifiers: L Series & C Series
The Tech Spec
| Features | Specification | Load Impedance | 2 Ohms 2.7 Ohms 4 Ohms 8 Ohms |
|---|---|
| Maximum Output Power | Single Channel 2 Ohms: 2300 W 2.7 Ohms: 2000 W 4 Ohms: 1400 W 8 Ohms: 700 W Dual Channel 2 Ohms: 2200 W 2.7 Ohms: 1800 W 4 Ohms: 1300 W 8 Ohms: 650 W Bridged 4 Ohms: 4400 W 8 Ohms: 2600 W |
| Maximum RMS Voltage Swing | 78.8 V |
| Voltage Gain | 32.0 dB (ref 1 kHz) |
| IMD SMPTE | IMD-SMPTE, 60 Hz, 7 kHz: < 0.1% |
| DIM 30 | < 0.05% (3.15 kHz, 15 kHz) |
| Maximum Input Level | +21 dBu |
| Crosstalk | < -80 dB (ref. 1 kHz, at 100 W / 4 Ohms) |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance | 20 kOhms |
| Signal-to-Noise Ratio (SNR) | >107 dB (A-weighted) |
| Output Noise | < -68 dBu (A-weighted) |
| Output Stage Topology | Class H |
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption ⅛ Maximum Output Power @ 4 Ω | 700 W |
| Mains Fuse | 240 V/230 V: T15AH; 120 V/100 V: T25AH |
| Protection | Audio limiters High temperature DC HF Back-EMF Peak current limiter Inrush current limiters Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) |
| Safety Class | I |
| Colour | Black |
| Dimensions (W x H x D), mm | 483 x 88 x 462.4 |
| Weight | 16.2 kg (35.7 lb) |
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance |
