Scan code: LN125270 Manufacturer code: F.01U.322.273

Dynacord - L1800FD-UK - DSP Power Amplifier

Dynacord - L1800FD-UK - DSP Power Amplifier 2 x 950W @ 4 ohms with FIR Drive

Thumbnail 1 : Dynacord - L1800FD-UK - DSP Power Amplifier Thumbnail 2 : Dynacord - L1800FD-UK - DSP Power Amplifier Thumbnail 3 : Dynacord - L1800FD-UK - DSP Power Amplifier
Scan code: LN125270 Manufacturer code: F.01U.322.273
Order now and get it tomorrow, Tue 28th May
£766.00
Get it Tomorrow, 28 MayIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £26.83 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £69.40
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £766.00
Total inc. interest: £832.77
Monthly Payment: £37.41
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £766.00
Total inc. interest: £897.61
Monthly Payment: £26.83
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £766.00
Total inc. interest: £965.56
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £20.36 / month (APR 19.9%)
Delivery Options
  • By DPD On 29th May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

DSP 2 x 950w Power Amplifier
Dynacord - L1800FD

Dynacord - L1800FD

DSP 2 x 950 w power amplifier for live performance applications Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability.

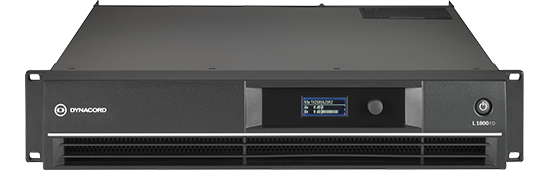

The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

at a glance • Professional DSP amplifier for live and mobile application
• Market-leading acoustic performance and rock solid reliability
• Fully integrated professional speaker processing with FIR drive technology
• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
• Powerful Control Software
• Engineered in Germany

Dynacord Two-Channel Power Amplifiers: L Series & C Series

The Tech Spec

Features Specification
Load Impedance 2 Ohms
2.6 Ohms
4 Ohms
8 Ohms
Maximum Output Power Single Channel
2 Ohms: 1600 W
2.6 Ohms: 1300 W
4 Ohms: 950 W
8 Ohms: 480 W

Dual Channel
2 Ohms: 1400 W
2.6 Ohms: 12000 W
4 Ohms: 850 W
8 Ohms: 450 W

Bridged
4 Ohms: 2800 W
8 Ohms: 1700 W
Maximum RMS Voltage Swing 65.1 V
Voltage Gain 32.0 dB (ref 1 kHz)
IMD SMPTE IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
DIM 30 < 0.05% (3.15 kHz, 15 kHz)
Maximum Input Level +21 dBu
Crosstalk < -80 dB (ref. 1 kHz, at 100 W / 4 Ohms)
Frequency Response 10 Hz to 21 kHz (±1 dB)
Input Impedance 20 kOhms
Signal-to-Noise Ratio (SNR) >105 dB (A-weighted)
Output Noise < -68 dBu
Total Harmonic Distortion < 0.05% (at 450 W / 4 Ohms MBW = 80 kHz, 1 kHz)
Topology Class-AB
Signal Processing FIR filters
Audio limiters
Output delay per channel
31-band GEQ per channel
PEQ per channel
Load impedance
Protection Audio limiters
High temperature
DC
HF
Back-EMF
Peak current limiter
Inrush current limiters
Turn on delay
Cooling Front-to-rear, 3-stage-fans
Safety Class I
Colour Black
Operating Temperature 40 to 105°F / 4 to 41°C
Power Power Requirement: 120 VAC, 60 Hz
Power Consumption: 550 W (1/8 maximum output power @ 4 Ohms)
Mains Fuse: T20AH
Dimensions 3.5 x 19.0 x 18.2" / 88.9 x 482.6 x 462.3 mm
Weight 33.5 lb / 15.2 kg
Specifications
Speaker Configuration
Dynamic Power

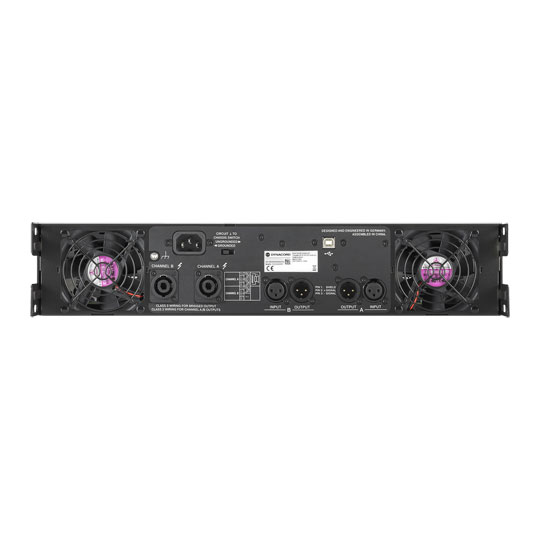

Inputs / Outputs
  • 2 x Speaker Out
  • 2 x XLR
Power Consumption (In Use) 950 W
Dimensions 483 x 88 x 462.4 mm (WxHxD)
Weight 15.2 kg
