DSP 2 x 650w Power Amplifier

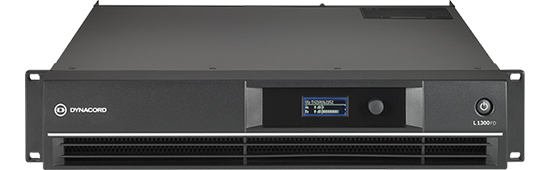

Dynacord - L1300FD
DSP 2 x 650 w power amplifier for live performance applications
Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability.
The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
at a glance
• Professional DSP amplifier for live and mobile application
• Market-leading acoustic performance and rock solid reliability
• Fully integrated professional speaker processing with FIR drive technology
• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
• Powerful Control Software
• Engineered in Germany
Dynacord Two-Channel Power Amplifiers: L Series & C Series
The Tech Spec
| Features | Specification | Load Impedance | 2 Ohms 2.6 Ohms 4 Ohms 8 Ohms |
|---|---|
| Maximum Output Power | Single Channel 2 Ohms: 1100 W 2.6 Ohms: 950 W 4 Ohms: 660 W 8 Ohms: 350 W Dual Channel 2 Ohms: 1000 W 2.6 Ohms: 850 W 4 Ohms: 600 W 8 Ohms: 320 W Bridged 4 Ohms: 2000 W 8 Ohms: 1200 W |
| Maximum RMS Voltage Swing | 55.3 V |
| Voltage Gain | 32.0 dB (ref 1 kHz) |
| IMD SMPTE | IMD-SMPTE, 60 Hz, 7 kHz: < 0.1% |
| DIM 30 | < 0.05% (3.15 kHz, 15 kHz) |
| Maximum Input Level | +21 dBu |
| Crosstalk | < -80 dB (ref. 1 kHz, at 100 W / 4 Ohms) |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance | 20 kOhms |
| Signal-to-Noise Ratio (SNR) | >104 dB (A-weighted) |
| Output Noise | < -68 dBu |
| Total Harmonic Distortion | < 0.05% (at 450 W / 4 Ohms MBW = 80 kHz, 1 kHz) |
| Topology | Class-AB |
| Signal Processing | FIR filters Audio limiters Output delay per channel 31-band GEQ per channel PEQ per channel Load impedance |
| Protection | Audio limiters High temperature DC HF Back-EMF Peak current limiter Inrush current limiters Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Safety Class | I |
| Colour | Black |
| Operating Temperature | 40 to 105°F / 4 to 41°C |
| Power | Power Requirement: 120 VAC, 60 Hz Power Consumption: 550 W (1/8 maximum output power @ 4 Ohms) Mains Fuse: T20AH |
| Dimensions | 3.5 x 19.0 x 18.2" / 88.9 x 482.6 x 462.3 mm |
| Weight | 28.4 lb / 12.9 kg |
