8‑Channel Compact Mixing System

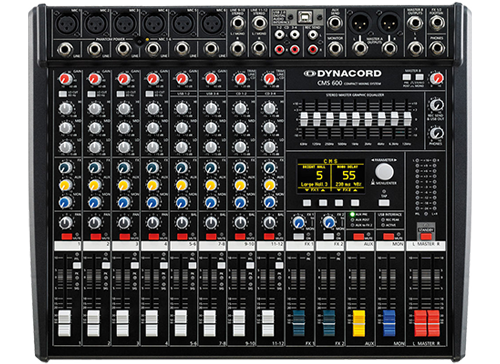

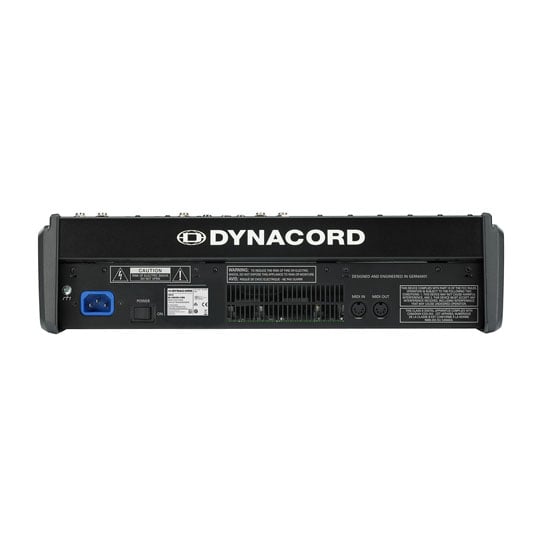

Dynacord - CMS 600-3
'Performance without compromise'Dynacord’s CMS 600-3 is a best in class compact 8-channel mixer featuring 4 mic/line, 2 mic/stereo-line and 2 stereo line channels, alongside 2 aux ports, one with pre and one with pre/post switchable faders. Dual effects processors offer the user up to 100 factory presets and a handy tap function to dial in precision settings on delay times. Each single preset is able to fully edited and stored in one of 20 user memories.
The integrated USB audio interfaces features 4 playback and 4 recording channels simultaneously with a PC, this all follows standard 24-bit, 96kHz. Also included in an additional MIDIO interface to allow for the integration of instruments such as keyboard and synths.
Best in ClassSmall Format Mixer
9-BandGraphic EQ
x2Programmable FX Processors
at a glance
• Intuitive mixer section: with 8 input channels with 4 Mic/Line, 2 Mic/Stereo-Line, 2 Stereo-Line inputs
• Professional 4x4 24-bit/96kHz USB interface, recording software and MIDI interface for FX control please see information on available drivers
• First-class components ( e.g. ALPS faders and potentiometers)
• Lightweight (5.8kg) super compact package
• Large, contrast rich OLED display
suitability
• Thanks to its impressive feature set and versatility, Dynacord's CMS 600-3 mixer is the ideal choice for all professional applications in which few channels, yet high audio quality, are required.
The Tech Spec
| Features | Specification | Channels | 4 x Mic/Line 2 x Mic/Stereo Line 2 x Stereo Line |
|---|---|
| Auxiliary | 1 x Pre (MON) 1 x Pre/Post Switchable (AUX) |
| Gain | Microphone (Line -20 dB): 10 to 60 dB Trim Line/CD (Stereo): -10 to 20 dB |
| Maximum THD @ 1kHz | Microphone Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005% Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer Output: 15 Hz to 70 kHz |
| Crosstalk @ 1 kHz | Fader and FX/AUX/MON-Send Attenuation: > 85 dB Channel-to-Channel: < -80 dB Mute and Standby Switch Attenuation: > 100 dB CMRR, Microphone Input:> 80 dB Input Sensitivity (All Level Controls in Max. Position Microphone / Line, Mono / Line, Stereo / CD, Stereo): -74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV) |
| Maximum Level | Microphone Inputs: 12 dBu Mono Line Inputs / Stereo Line Inputs: 31 dBu / 30 dBu All Other Inputs: 22 dBu All Other Outputs: 22 dBu |
| Input Impedances | Microphone / Insert Return: 2 Kilohms / > 3.3 Kilohms 2-Track Return and CD Input: 10 Kilohms All Other Inputs: > 15 Kilohms |
| Output Impedances | Headphones: 47 Ohms All Other Outputs: 75 Ohms (Unbalanced), 150 Ohms (Balanced) |
| Equivalent Input Noise | Microphone Input, A-Weighted, 150 Ohms, -130 dBu Noise, Channel Inputs to Master A L/R Outputs, A-Weighted Master Fader Down: -100 dBu Master Fader 0 dB, Channel Fader Down: -92 dBu Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -82 dBu |
| Equalisation | LO Shelving: ± 15 dB / 60 Hz MID Peaking: ± 12 dB / 2.4 kHz HI Shelving: ± 15 dB / 12 kHz Master EQ 9-Band (63, 125, 250, 500, 1 kHz, 2 kHz, 4 kHz, 6.3 kHz, 12 kHz): ± 10 dB / Q = 1.5 to 2.5 |
| Power Consumption | At 1/8 Maximum Output Power, 4 Ohms: 35 W |
| Filter | LO-CUT, Mono Inputs: f = 80 Hz, 18 dB/oct. |
| Effects | Type, Effects Presets: Dual Stereo 24/48-Bit Multi-Effects Processors, 100 Factory + 20 User, Tap-Delay, Remote Control Footswitch, MIDI Display: 128 x 64 pixels, OLED |
| Digital Audio | Channels: 4 Inputs / 4 Outputs AD/DA Conversion, Sampling Rate 24-Bit, 44.1 / 48 / 88.2 / 96 kHz PC Interface: USB 2.0, Female Type-B MIDI Interface: 5-Pin DIN Connector, Input / Output |
| Mixer Output Connections | AUX, MON, Master A L/R (Relay Controlled) |
| Power Supply | Switching Mode µC Controlled: Mains Over/Undervoltage |
| Phantom Power | 48 VDC (Switchable) |
| Power Requirements | 100 to 240 VAC, 50/60 Hz (SMPS with Auto Range Mains Input) |
| Safety Class | I |
| Ambient Temperature | 40 to 105°F / 5 to 40°C |
| Dimensions | 16.4 x 4.3 x 13.7" / 416.9 x 108.6 x 347.8 mm Rackmount (7.5 HE): 19 x 3.9 x 13.1" / 483 x 99.1 x 332.6 mm |
| Weight | 12.8 lb / 5.8 kg |
