Dune HD TV 301 Standard NON-WiFi Version
Scan code: LN41749
Manufacturer code: TV-301
End Of Life
Dune HD TV 301 Standard NON-WiFi Version
Dune HD TV 301 Sigma 8670 Network 1080p MKV Streamer with Hot swappable 2.5" HDD, USB 3.0, BitTorrent, IPTV Functions
Scan code:
LN41749
Manufacturer code:
TV-301
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
Dune HD TV-301 is a compact size hybrid universal media player which allows to play back video of standard and high definition up to Full HD (1080p), and also can be used as a specialized set-top-box for digital TV programs reception. TV-301 – is remarkable primarily for its ultra-compact size, elegant modern design and modest price. Despite the fact that the device can fit on a plam, its functionality has not been sacrificed to miniature size. TV-301 copes with its responsibilities not worse than senior representatives of the Dune HD players model line, which has to date won all possible awards of specialized printed media and exhibitions. This was made possible by using the most recent Sigma Designs SMP8670 media processor.
Key Features
The newest Sigma Designs 8670 media processor: enjoy excellent playback and performance of interactive features.
HDD player: connect an HDD to the player and play content directly from the HDD.
Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).
MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate.
2 USB ports: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.

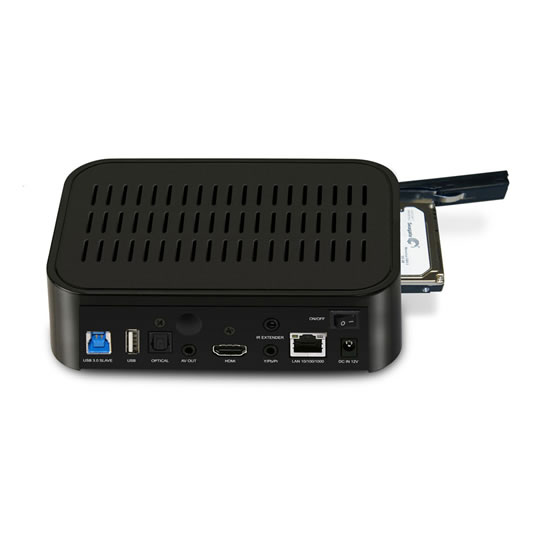

HDD rack with hot swap function: easily and quickly insert and exchange internal 2.5" SATA HDD.
USB 3.0 slave port: easily and quickly transfer files between the HDD in the player (when installed) and a PC.
SD card slot: easily play media files on SD memory cards from your camera or other devices, or use an SD memory card as a local or system storage.
HDMI 1.3: ensure the best possible quality of HD video and audio.
Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.
File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).
Specification
Processor: Sigma Designs 8670/8671 - most powerful low-cost solution from Sigma Designs
RAM: 256 MB
Flash memory: 128 MB, expandable with a HDD partition, USB flash drive, or SD card
Media sources: HDMI 1.3, 2x USB 2.0 (1x rear, 1x side), composite, component, analog stereo output, optical S/PDIF, USB 3.0 slave, Ethernet 10/100/1000 Mb/s, Wi-Fi 802.11n (optional), SD card slot (side), power input, power switch (back), LED indicator (front)
Internal storage: Internal HDD rack with hot swap function for SATA HDD 2.5". USB 3.0 slave interface and provided USB 3.0 (slave-host) cable allow fastest possible way of transferring data between PC and player
DVB-T or ISDB-T support: *by request (*option not Included)
Media sources: external HDD (USB), external optical drive (USB), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC), PC and NAS in local network (SMB, NFS, UPnP, HTTP), other Internet and local network media sources (HTTP, multicast UDP RTP)
Web Browser: NetFront (ACCESS) or WebKit
Widgets support: when using NetFront browser
HbbTV and iPlayer support: when using NetFront browser
DLNA: Full DLNA (1.5 or 2.0) standard support
Adobe Flash: 3.1 (Lite, standalone) supported
DRM options: Microsoft DRM10 and PlayReady, Verimatrix, Secure Media, Flash Access (in work). Other DRM can be added by request
Video codecs: MPEG2, MPEG4, XVID, WMV9, VC1, H.264; support for very high bitrate video (up to 50 MBit/s and higher)
Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, BDMV, DVD-ISO, VIDEO_TS
Video output modes: wide range of supported output resolutions (up to 1080p) and framerates (including 23.976p, 24p, PAL, NTSC)
Video output framerate: automatic (according to the played content) and manual
Audio codecs: AC3 (Dolby Digital), MPEG, AAC, LPCM, WMA, WMAPro, FLAC, multichannel FLAC, Ogg/Vorbis; support for very high quality audio (up to 192 kHz / 24-bit)
Audio file formats: MP3, MPA, M4A, WMA, FLAC, APE (Monkey’s Audio), Ogg/Vorbis, WAV, AC3, AAC
Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (Blu-ray, TS, MKV)
Picture file formats: JPEG, PNG, BMP, GIF
Playlist file formats: M3U, PLS
Photo viewer functions: slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle
Audio playback functions: browse playlist, repeat, shuffle, ID3 tags, plasma TV burn-in prevention
Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3 (read-write), NTFS (read-write)
Ethernet: 10/100/1000 Mb/s
Dune Network Playback Accelerator: special optimizations ensuring best-in-class network playback performance for the Sigma Designs 864x-865x-867x platform and enabling smooth playback of any supported kind of media content via any network protocol (including NFS and SMB) even in 100 Mbit/s Ethernet networks.
Dimensions
Player itself: 160mm (width), 115mm (depth), 36mm (height)
Weight
Net weight: around 0.4 kg
For the Lastest Firmware updates please check here http://dune-hd.com/firmware/ Features High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, etc).
Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.
NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP).
BitTorrent: use built-in BitTorrent client to download files from P2P networks.
Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).
Internet radio: playback and record various Internet radio stations (HTTP/MP3 and other formats).
IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider (check availability of multicast UDP/RTP streams with your Internet provider).
Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle (Digital TV USB dongle is not included; this option can be purchased separately).
