Scan code: LN99022 Manufacturer code: V2862-K

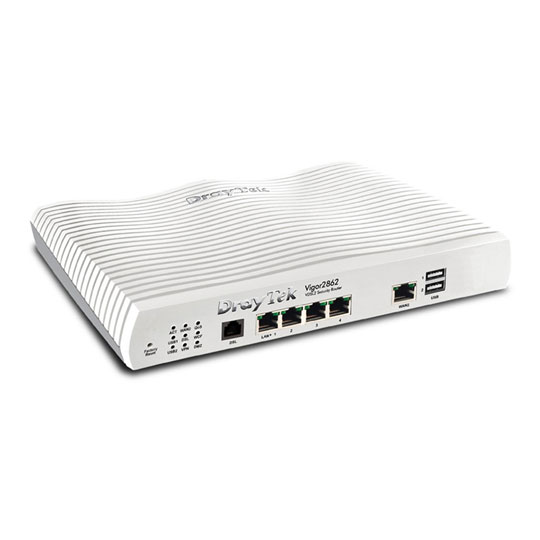

DrayTek Vigor 2862 VDSL/ADSL/3G/4G/LTE USB Router/Firewall

DrayTek Vigor 2862 Router/Firewall (ADLS+VDSL) Supports VDSL2, ADSL, 3G/4G and Ethernet-based Broadband

Scan code: LN99022 Manufacturer code: V2862-K
£179.99
From £16.16 / month (APR 14.9%)
Monthly Payment: £31.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £187.40
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The Vigor 2862 series is our new flagship router/firewall. Exact feature support varies by model (see specification tab). It is what we've called the 'Ultimate DSL router' supporting both ADSL or VDSL (BT Infinity™/FTTC) and packed with professional level features to increase security, flexibility and functionality, making it ideal as your standard router for almost any scenario.

As well as ADSL/VDSL support, alternative WAN ports can instead provide connectivity to Ethernet feeds (Gigabit WAN2 is switchable with LAN Port 5*), secondary xDSL modems or a 3G/4G cellular service using a supported USB adapter (or there is the Vigor 2862Ln model with 3G/4G/LTE built-in). These multiple LAN feeds can be combined for failover or load-balancing.

This latest router series includes support for other professional features such as VLAN tagging, QoS (Quality of Service Assurance), High Availability, DNS Filter, Policy Based Routing, and User Access Control. Hotspot features with customisable branding and wording which can be applied to guest network VLANs & SSIDs. If you deploy DrayTek Wireless Access Points, the Vigor 2862 can act as the Central Management controller

Runs on either ADSL or VDSL
The Vigor 2862's built in DSL interface will connect to either an ADSL or VDSL2 line. If you have a second line (of either type) you can add an additional modem (or your existing modem from your other line) to the Vigor 2862's Ethernet WAN ports. You can set the two lines up in load balancing mode, where traffic is split across both of them, or into failover mode, where the other DSL line only kicks-in if your primary DSL line fails (or vice versa). ADSL makes a particularly good method of failover for VDSL because they are delivered differently. VDSL service is provided and powered by a cabinet in your street - that's where the line terminates. ADSL service, on the other hand, comes all the way from your local exchange, which could be miles away and is powered from there. That means that if your street's VDSL cabinet is damaged, its DSLAM fails or you lose power to your street, you lose VDSL, but your ADSL line comes via a different method and route, so it's less likely that both would be affected.

Robust & Comprehensive Firewall
Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems.
The DrayTek object-based firewall allows even more setup flexibility than ever, enabling you to create combinations of users, rules and restrictions to suit multi-departmental organisations. The Vigor 2862 also allows selective direction firewall rules of LAN to WAN, WAN to LAN or LAN to VPN.

Central Management with VigorACS
The Vigor 2862 series (along with most other DrayTek routers, Access points and switches) can be centrally managed by our VigorACS central management platform.
This scalable solution provides visibility, control and reporting of your entire DrayTek product estate, ideal for dealers/SIs managing customers' devices or any user who wants to know what's going on with their devices. VigorACS also provides features like automated/bulk firmware updates, VPN management and alarms for connectivity or other issues.

IPv6 - Next Generation Internet Routing
The Vigor 2862 supports IPv6 - the successor to the current IPv4 addressing system that has been used since the Internet was first created. IPv4 address space is full up and IPv6 allows for much more efficient routing and a larger address space. IPv6 is supported both from your own ISP, but if your ISP does not (yet) support IPv6, the Vigor 2862 also supports IPv6 broker/tunnel services to provide IPv6 access using either TSPC or AICCU via 3rd party IPv6 providers.

Web Content Filtering
The content control features of the Vigor 2862 series allow you to set restrictions on web site access, blocking download of certain file or data types, blocking specific web sites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or universal and according to time schedules.

WAN Load Balancing & Backup
The Vigor 2862 features multiple methods of WAN connectivity - ADSL/VDSL, Ethernet, USB port for connection of a 3G/4G modem, optional built-in 3G/4G or (on wireless models) and Wireless WAN. The Ethernet port can connect to a second ADSL/VDSL modem (e.g. Vigor 130), a cable modem or any other Ethernet-based Internet feed.
The multiple WAN interfaces can be used either for WAN-Backup or Load-Balancing. WAN-Backup provides contingency (redundancy) in case of your primary ADSL line or ISP suffering temporary outage). Internet Traffic will be temporarily routed via the secondary Internet access. When normal service is restored to your primary line, all traffic is switched back to that.

User Management/Authentication
The Vigor 2862 has built-in user management which allows you to provide conditional internet access with Time and Data usage quotas to different users, based on their own unique login (stored in the router, or on an external Radius server).

USB Port for Ad-Hoc Storage / Logging
The Vigor 2862's USB port can also be used to add storage memory to the unit in the form of a USB memory key (as shown right). The Vigor 2862 then provides FTP access file uploading/downloading which can be from the local LAN or from anywhere on the Internet - ideal for a simple to deploy file depository.
Features • 4-WAN: VDSL/ADSL, Ethernet, Dual optional USB 3G/4G
• BT SIN 498 MCT Approved - New!
• Can be centrally Managed by VigorACS
• DrayDDNS Service Support - New!
• Hotspot Web Portal - New!
• IPv4/IPv6 Dual-Stack
• High Availability (Hardware failover) - New!
• 5-Port Gigabit Ethernet LAN Switch
• Up to 8 Private LAN Subnets - New!
• Larger Subnets - up to 1022 IPs per subnet (LAN1-3) - New!
• Temperature Monitoring (optional Thermometer)
• SMS (Text Message) Alert
• VLANs (Port, 802.1q & Wireless)
• Content Filtering (by keyword, data type or category)
• Internal RADIUS Server
• LDAP Integration for VPN and user access
• Quality of Service (Layer 2&3, 802.1p & TOS/DCSP)
• Up to 32 VPN tunnels for LAN-to-LAN or teleworkers
• VPN Trunk/Backup to remote sites
• SSL VPN - Tunnel or Proxy (16 users)
• USB Port for Printer, memory stick or 3G/4G/LTE Modem
• Optional VigorCare Available
Specifications
Networking, Connectivity & Ports
Model V2862-K
Form-Factor Desktop
Device Type Router
Compatible Internet Connections
  • 3G via Compatible USB Modems
  • 4G via Compatible USB Modems
  • ADSL
  • Cable-based Modems
  • VDSL 2
Network Connectivity 10/100/1000
Network Ports 5 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
Other Connectors 2 x USB 2.0
USB Applications 3G/4G Sharing
Wired Protocols
  • IPv4
  • IPv6
Total LAN Connections 5
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance Uknown
Wireless
Wireless Speed N/A
Wireless Protocols N/A
Wireless Band
Frequency
Operation Channel
Wireless Transmitter Power N/A
Antenna
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
OS Support
Max. Power Consumption . W
PSU Type External
Security & VPN
Security Protocols
  • WEP
  • WPA
  • WPA2
  • WPS
Firewall/NAT Yes
Management
VPN Support
  • IPSec Pass-Through
  • L2TP Pass-Through
  • PPTP Pass-Through
Physical Specifications
Dimensions 165.07 x 43.96 x 240.96 mm (WxHxD)
Weight
Additional Information
Scan Code LN99022
Model Number V2862-K
GTIN 4712909121811
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan/Draytek
Telephone:
0845 527 7864 9:00am-5:30pm Mon/Fri
