Scan code: LN113225 Manufacturer code: V166-K

Draytek Vigor 166 G.fast/VDSL2 Full Bridge Modem

Draytek Vigor 166, G.fast (Ultrafast Fibre) & VDSL2 (Superfast Fibre) to Ethernet Modem, 2x Gigabit LAN, 1x RJ-11

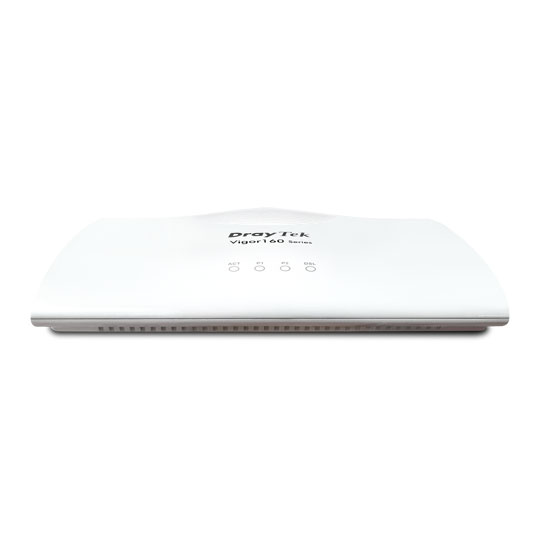

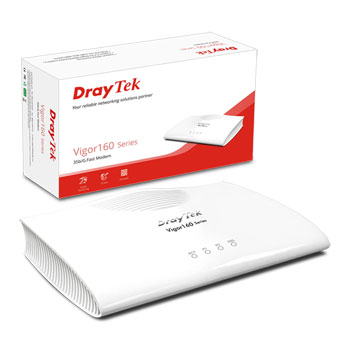

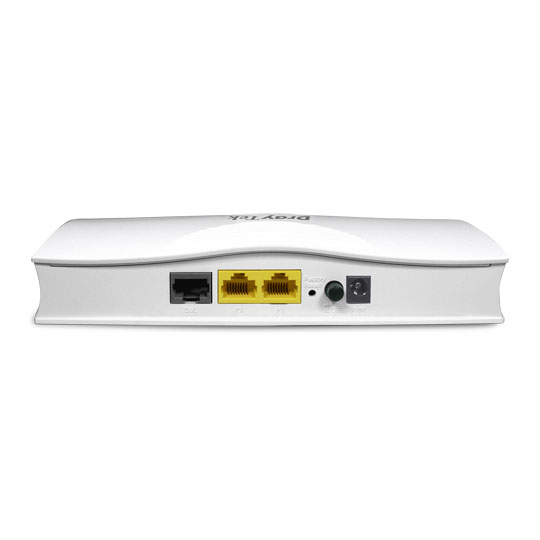

Thumbnail 1 : Draytek Vigor 166 G.fast/VDSL2 Full Bridge Modem Thumbnail 2 : Draytek Vigor 166 G.fast/VDSL2 Full Bridge Modem Thumbnail 3 : Draytek Vigor 166 G.fast/VDSL2 Full Bridge Modem
Scan code: LN113225 Manufacturer code: V166-K
£106.49Item overdue since 06 June 2021
Pre order
From £9.56 / month (APR 14.9%)
Monthly Payment: £9.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £106.49
Total inc. interest: £114.72
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

G.fast & VDSL2 35b Capable

Up to 330mbps download and 50mbps upload with G.fast technology. Can be used with all the latest DSL standards, with Vectoring and 35b SuperVectoring.


No Setup Needed

Works as a modem with most ISPs, straight out of the box. Pre-Configured to work with most UK ISPs. Just set the username and password on your router.


Two Gigabit LAN Ports

Connect two devices to the Vigor 166 with 2 Gigabit (10/100/1000Mbps) LAN ports. No need to disconnect Ethernet WAN to check connectivity.


Full-Bridge Modem and More

Two operation modes for the Vigor 166 allow it to operate as a fully bridged DSL to Ethernet Modem, or as a mini Router with NAT DMZ Host.


Add DSL Connectivity to Any Router

Ideal Partner device for DrayTek dual-WAN products or any other vendor's Ethernet WAN firewall. Reports DSL Line Status on DrayTek Vigor routers.


Wall or Shelf Mountable

Can be installed securely on a wall or shelf with screw fixings to hold it in place. Mounting kit included.

Features
• G.fast (Ultrafast Fibre) & VDSL2 (Superfast Fibre) to Ethernet Modem.
• Bridges DSL to your Router or Firewall.
• Pre-Configured to work with most ISPs.
• Ideal Partner device for DrayTek dual-WAN products or any other vendor's Ethernet WAN firewall.
• IPv6 and IPv4 Compatible.
• Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q).
• 2 Gigabit LAN Ports.
Specifications
Networking, Connectivity & Ports
Model Vigor 166
Form-Factor Desktop
Device Type VDSL2/ADSL2+ Modem
Compatible Internet Connections
  • ADSL 2+
  • VDSL 2
Network Connectivity 10/100/1000
Network Ports
  • 1 x RJ11 for xDSL
  • 2 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections 2
Total WAN Connections 1
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed N/A
Wireless Protocols N/A
Wireless Band
Frequency
Operation Channel
Wireless Transmitter Power N/A
Antenna
Core Features
Features VPN Client(PPTP/L2TP/Open VPN)
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
OS Support
Max. Power Consumption 6.6 W
PSU Type Internal
Security & VPN
Security Protocols
  • DHCP server/client
  • DoS protection
  • MAC Address Filter
  • NAT Firewall
  • SPI
  • TR-069
  • URL Filter
Firewall/NAT Yes
Management
  • Diagnostics
  • NTP Client
  • SNMP
  • System Logging Local/Remote Syslog
VPN Support
  • IPSec Pass-Through
  • L2TP Pass-Through
  • PPTP Client
Physical Specifications
Dimensions 181 x 40 x 125 mm (WxHxD)
Weight 280 g
Additional Specifications
Note N/A
Additional Information
Scan Code LN113225
Model Number V166-K
GTIN 4712909128230
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
