DPA DDK4000 Drum Microphone Kit
DPA - DDK4000 Drum Microphone Kit, Natural and Precise Sound Reproduction of the Entire Kit
Drum Microphone Kit
DPA - DDK4000
complete drum microphone kitThe DPA DDK4000 drum microphone kit features selection of mics designed specifically to put the sound engineer in control of the sound. By starting with the clear, true sound of the entire kit, the engineer has the best starting point to shape the right sound required for the situation. These mics ensure a natural and precise sound reproduction of the entire kit. The specific mic placements prevent artefacts, bleed and other shadowing effects.
At A Glance
• Natural and precise sound reproduction of the entire kit
• Picks up the sound like the drummer hears their kit, no or minimum EQ is needed
• Specific mic placements prevent artefacts, bleed and other shadowing effects
• A clean slate to convey the wanted “mood” to the audience

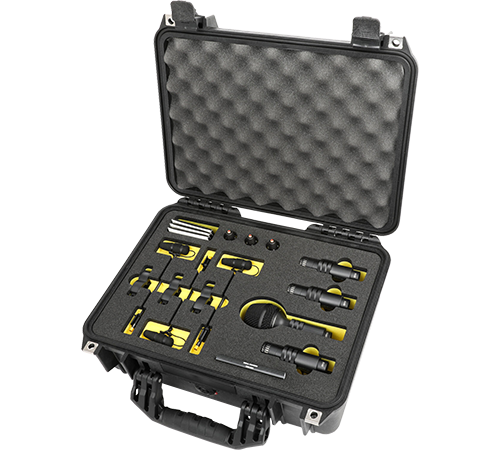

What's Included?
• 1 x 2012 Cardioid Microphone
• 2 x 2015 Wide Cardioid Microphone (Stereo Pair)
• 1 x 4055 Kick Drum Microphone
• 3 x 4099 Core Instrument Microphone, Extreme SPL

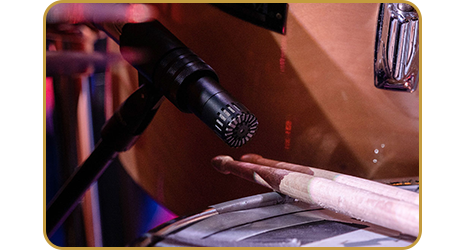

2012 Compact Cardioid Microphone
An all-around generalist pencil micThe 2012 can be used as an all-around microphone in applications where dynamic microphones are commonly used. As a condenser mic, it has several advantages over its dynamic counterparts.
This mic can capture higher frequencies, has an extended frequency range and a flat frequency response – all in a smaller form factor.
It can handle high SPLs whilst still capturing very delicate sounds, so it works well on many different instruments. It also has a far better transient response than any dynamic microphone, which allows it to pick up the most delicate sound with incredible accuracy.

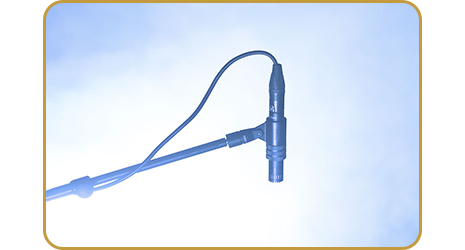

2015 Compact Wide Cardioid Microphone
Uniform wide cardioid directionalityThe 2015 is a wide cardioid overhead microphone for ambient pick up of a drum kit or other instrument groups.
The 2015 can be positioned close to the drum kit (i.e., over the cymbals) and still capture sound evenly across the full drum kit. This closer position results in stronger signal from the drum kit and therefore less bleed from the stage.

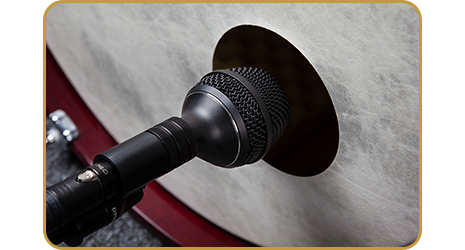

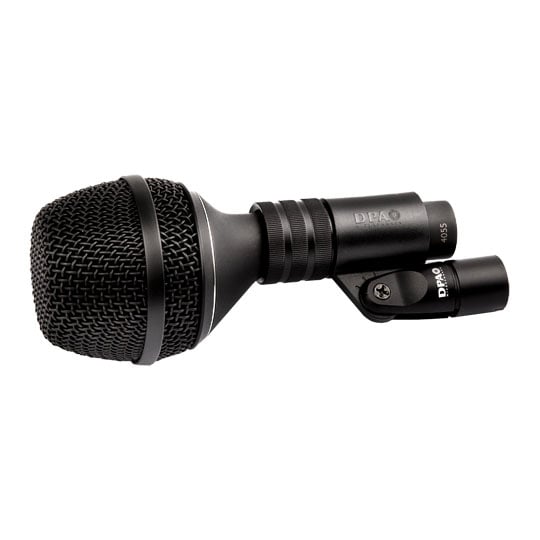

4055 Kick Drum Microphone
shape the sound your wayThis is a flexible, professional mic that captures the power and true sound of the kick drum, when placed inside or outside the drum. The 4055 is one of the only kick drum mics that is not sonically pre-tailored to fit a traditional sound in a specific genre.
Featuring low frequency response and dynamics are superb and result in a tight, natural, well-defined sound, providing the best low-end with detailed mids and highs.

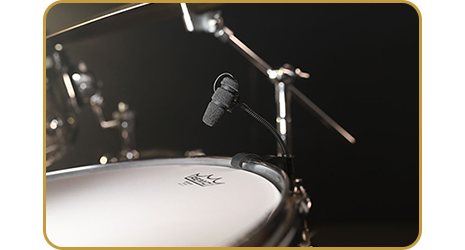

4099 Instrument Microphone
Superior gain-before-feedbackThe 4099 perfectly captures the booming sounds of drums and percussion instruments. The mic can be easily positioned to fit diverse types of drums and excel on the snare, toms and hi-hats.
The flexible gooseneck can be positioned at different angles, allowing for a variety of sound nuances. The mic is elegant, lightweight, unobtrusive and designed to keep out of the way during performance.
2012 Tech Specs
| Features | Specifications | Directional pattern | Cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 40 Hz to 20 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 8 mV/Pa; -42 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 20 dB(A) re 20 µPa (max. 22 dB(A)) |
| Distortion, THD < 1% | 148 dB SPL (151 dB SPL peak) |
| Dynamic range | Typ. 131 dB |
| Max. SPL, THD 10% | 153 dB SPL (156 dB SPL peak) |
| Switchable attenuator, filters etc. | - |
| Rated output impedance | 60 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with Active Drive |
| Common mode rejection ratio (CMRR) | > 60 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 0.7 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Colour | Matte black |
| Weight | 83 g (2.9 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 17 mm (0.67 in) |
| Microphone length | 94 mm (3.7 in) |
| Maximum output voltage, RMS | 8.7 V (21 dBu) |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
2015 Tech Specs
| Features | Specifications | Directional pattern | Wide cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 40 Hz to 18 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 12 mV/Pa; -37.7 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 18 dB(A) re 20 µPa (max. 20 dB(A)) |
| Distortion, THD < 1% | 147 dB SPL (150 dB SPL peak) |
| Dynamic range | Typ. 132 dB |
| Max. SPL, THD 10% | 150 dB SPL (153 dB SPL peak) |
| Switchable attenuator, filters etc. | - |
| Rated output impedance | 60 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with Active Drive |
| Common mode rejection ratio (CMRR) | > 60 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 0.7 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Colour | Matte black |
| Weight | 83 g (2.9 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 17 mm (0.67 in) |
| Microphone length | 94 mm (3.7 in) |
| Maximum output voltage, RMS | 8.7 V (21 dBu) |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
4055 Tech Specs
| Features | Specifications | Directional pattern | Open Cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 40 Hz - 18 kHz with a 6 dB soft boost at 10 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 2 mV/Pa; -54 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 27 dB(A) re. 20 µPa (max. 29 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 39 dB (max. 41 dB) |
| Distortion, THD < 1% | 156dB SPL RMS, 159 dB SPL peak |
| Dynamic range | Typ. 132 dB |
| Max. SPL, THD 10% | 164 dB SPL peak |
| Switchable attenuator, filters etc. | - |
| Rated output impedance | 380 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with Active Drive |
| Common mode rejection ratio (CMRR) | > 55 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 2.0 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Colour | Matte black |
| Weight | 241 g (8.5 oz) |
| Microphone diameter | 57 mm (2.24 in) |
| Capsule diameter | 17 mm (0.67 in) |
| Microphone length | 132 mm (5.19 in) |
| Maximum output voltage, RMS | 9.75 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
4099 Tech Specs
| Features | Specifications | Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC |
| Sensitivity, nominal, ±3 dB at 1 kHz | 2 mV/Pa; -54 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A)) |
| Distortion, THD < 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 109 dB |
| Max. SPL, THD 10% | 152 dB SPL peak (label colour yellow) |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Colour | Black |
| Weight | Microphone: 17 g (0.60 oz) Instrument Microphone Clamp Mount (CM4099): 16 g (0.56 oz) Instrument Microphone Clip for Accordion (AC4099): 5 g (0.18 oz) Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz) Instrument Microphone Clip for |
| Microphone diameter | 57 mm (2.24 in) |
| Microphone length | 45 mm (1.8 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Gooseneck length | 140 mm (5.5 in) |
