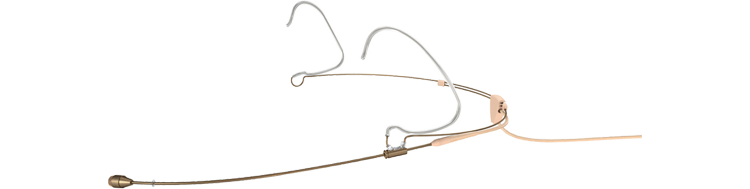

DPA 4466 CORE Omni Headset Mic, Beige, Microdot
DPA 4466 CORE Omnidirectional Headset Microphone (Beige)
- SCANPROTECT Protect against installation damage for 28 days. More info
Omnidirectional Headset Microphone
DPA - 4466 CORE
(Beige)
the most advanced headset microphone
The 4466 CORE Omnidirectional Headset Microphone combines DPA’s renowned 5 mm capsules with CORE by DPA technology and the Red Dot award-winning headset.
These are the most advanced headset microphone – secure, durable and flexible – for segments including: Theatre, Broadcast, House of Worship and Conferencing.
Electret CondenserCapsule
144 dBMaximum SPL
OmnidirectionalPolar Pattern
at a glance
• One-size-fits-all - head sizes and shapes
• Comfortable 3-point grip - above, below, behind the ear
• Non-reflective PVD surface on headset frame, boom, capsule
• Easily adjustable - frame size, boom length, placement
• 90° adjustable cable guide - keeps cable out of sight
what's in the box?
• DPA Microphones 4466 CORE Omnidirectional Headset Microphone
• Limited 2-Year Manufacturer Warranty
• Foam Windscreen
• Carry Case
Unmatched Sound, Award-Winning Design
The Tech Spec
| Features | Specification | Sound Field | Mono |
|---|---|
| Operating Principle | Pressure Operated |
| Capsule | 1 x Electret Condenser |
| Diaphragm | 0.2" / 5.4 mm |
| Polar Pattern | Omnidirectional |
| Windscreen | Foam (Included) |
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 137 dB SPL Peak (Plug-In Power, 1% THD) 144 dB SPL Peak (Plug-In Power, 10% THD) |
| Impedance | 40 Ohms |
| Sensitivity | 6 mV/Pa |
| Dynamic Range | 111 dB A-Weighted |
| Equivalent Noise Level | 26 dB A-Weighted |
| THD | < 1% |
| Outputs | 1 x Microdot 1-Pin Male Unbalanced (Lockable) |
| Cable Length | 4.3' / 1.3 m |
| Mounting | Over-Ear (Double/Neckband) (via Integrated Hardware) |
| Weight | 11.34 g (with Cable) |
