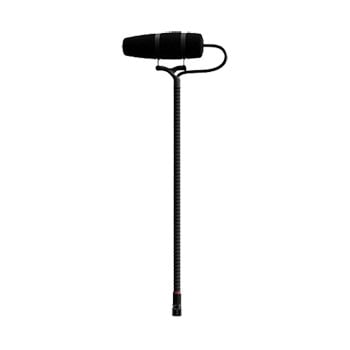

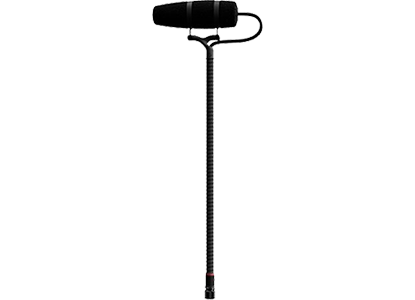

DPA 4099 CORE+ Instrument Microphone
Scan code: LN160396
Manufacturer code: 4099-DP-1
£449.99
DPA 4099 CORE+ Instrument Microphone
DPA - 4099 CORE+ Mic Instrument Microphone, Loud SPL Version (6 mV/Pa sensitivity)
Scan code:
LN160396
Manufacturer code:
4099-DP-1
£5.48 Next day delivery
Order in the next 1 hr 18 mins and get it tomorrow
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £11.96 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Instrument Microphone
DPA - 4099 CORE+
Loud SPL version (6 mV/Pa sensitivity)The DPA 4099 CORE+ mic delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, this mic provides even better stability and flexibility on any type of instrument.
Typ. 118 dBDynamic Range
20 Hz - 20 kHzFrequency Response
145 dBMax. SPL
at a glance
• CORE+ technology
• High SPL handling
• Wide dynamic range
• Supercardioid pick up pattern
• Superior gain before feedback
• MicroLock® connector
• IP58 certified
• Advanced, flexible clip program
The Tech Spec
| Features | Specification | Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) |
| Distortion, THD < 0.5% | 135 dB SPL RMS, 138 dB SPL peak |
| Distortion, THD < 1% | 138 dB SPL RMS, 141 dB SPL peak |
| Dynamic range | Typ. 118 dB |
| Max. SPL, THD 10% | 145 dB SPL peak |
| Rated output impedance | From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter |
| Output balance principle | Signal balanced with DAD9099 or DAD9001 XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter |
| Connector | MicroLock |
| Weight | Microphone: 18 g (0.63 oz) |
| Microphone diameter | 5.7 mm (0.22 in) |
| Microphone length | 50 mm (1.97 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
| Polarity | +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | 140 mm (5.5 in) |
| Gooseneck length | 1 x Type B |
| Sensitivity selection tolerance (at 1 kHz) | ±1 dB |
| Colours | Black |
