DPA - 4099 CORE Rock Touring Kit

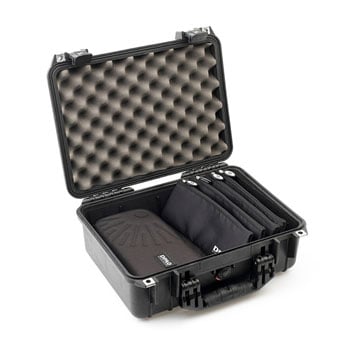

DPA - 4099 CORE Rock Touring Kit, 4 Mics and accessories, Extreme SPL, DPA Peli™ Case
Rock Touring Kit with 4 Mics and Accessories
DPA - 4099 Rock Touring Kit
designed 'for live rock band performances'The DPA KIT-4099-DC-4R d:vote CORE 4099 Rock Touring Kit includes 4 of the Extreme SPL microphones with accessories allowing you to use different specialist clips to set up around anything you come across or simply have a range of spare microphones for a variety of jobs. In this kit you will get a range of clips for different instruments and 4 DPA 4099 CORE extreme spl microphones.
The d:vote is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. d:vote CORE 4099 brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE – every musician, live sound engineer and anyone else who takes pride in quality audio.
CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. DPA have minimized distortion. From pianissimo to forte, you will experience increased clarity and openness. Learn more about CORE by DPA.
From the piano to guitar; strings to woodwinds; brass to percussion, the d:vote Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly.The award-winning d:vote series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.
at a glance
• CORE by DPA technology inside
• Supercardioid condenser microphone
• Handles high SPLs
• Superior gain-before-feedback
• Flexible and easy mounting
• Gentle and easy to mount on the instrument
• Detachable cable and a versatile gooseneck extender

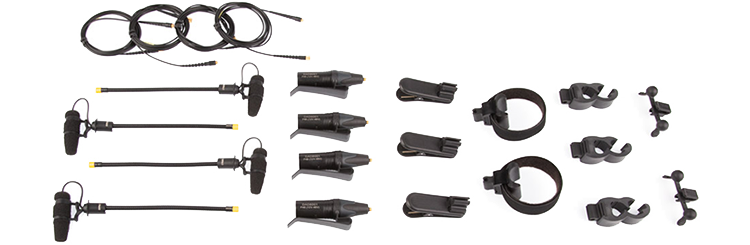

Key Features
• 4 x Supercardioid Microphones
• 4 x XLR Adapters
• 4 x 2.2mm Diameter Extension Cable
• 3 x Drum Clips, 3 x Clamp Mounts
• 2 x Clips for Sax, 2 x Universal Clips
• Core Amplifier Increases Performance
• Increases in THD and Dynamic Range
•
For Instrument Capture
• Handles High SPLs
The Tech Spec
| Features | Specification | Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC |
| Sensitivity, nominal, ±3 dB at 1 kHz | 2 mV/Pa; -54 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A)) |
| Distortion, THD < 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 109 dB |
| Max. SPL, THD 10% | 152 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter |
| Power supply (for full performance)y | For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Weight | Microphone: 17 g (0.60 oz) Instrument Microphone Clamp Mount (CM4099): 16 g (0.56 oz) Instrument Microphone Clip for Accordion (AC4099): 5 g (0.18 oz) Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz) Instrument Microphone Clip for Cello (CC4099): 13 g (0.46 oz) Instrument Microphone Clip for Drum (DC4099): 13 g (0.46 oz) Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz) Instrument Microphone Clip for Piano (PC4099): 19 g (0.67 oz) Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz) Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz) Universal Instrument Microphone Clip (UC4099): 15 g (0.53 oz) Mic Stand Mount (MS4099): 27.5 g (0.97 oz) Cold Shoe Mount with standard 1/4" in thread (CS4099): 5 g (0.18 oz) |
| Microphone diameter | 5.7 mm (0.22 in) |
| Microphone length | 45 mm (1.8 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Gooseneck length | 140 mm (5.5 in) |
