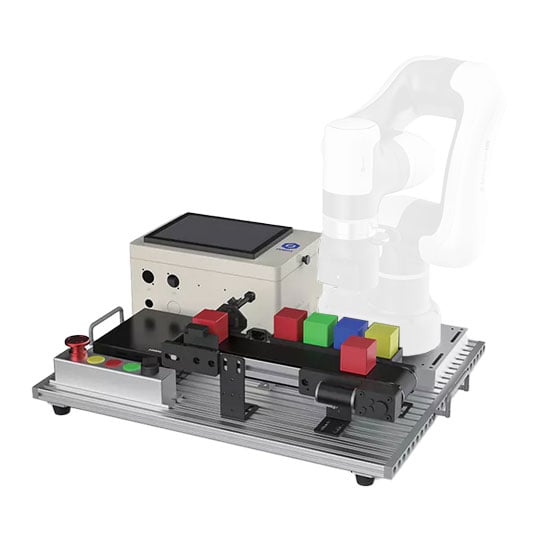

Magician E6 Mini Training Platform
The DOBOT Magician E6 Training Platform is an affordable, practical automation training system designed for high school students. It brings together mechanics, electronics, pneumatics and programming, covering everything from robot motion control to PLC programming in a single teaching platform.
Modular Practical Learning
Each component is independently designed for straightforward teaching, assembly and maintenance. The conveyor belt and PLC module with HMI touch screen can be used independently with the Magician E6 or combined for interactive control, supporting progressive experimental teaching.
Multi-Disciplinary Automation
The platform covers 6-axis robotic arm operation, motor and conveyor belt control, sensor applications, pneumatic component control, PLC programming and HMI interaction. Students can explore robotic structure, kinematics and motion control, simulate Industry 4.0 material transportation, and learn how sensors support positioning and detection.
Pneumatics and Control
A pump box and cylinder pushrod module provides practical experience with pneumatic systems and their role in automation. The PLC and HMI environment introduces control logic and interface operation, allowing students to progress from basic programming to controlling the wider system.
Intuitive and Safe
The integrated HMI touch screen provides an accessible interface for understanding automation control processes, while the emergency stop module and start/stop buttons support safety training and emergency response exercises.
Education and Demonstration
The platform is suited to high schools and vocational technical schools for robotics and automation courses, as well as science museums and youth science centres for demonstrations and hands-on experiences with modern industrial automation technology.
• Practical automation training platform developed for use with the Magician E6.
• Supports 6-axis robot motion control training covering structure, kinematics and control principles.
• Independent conveyor belt kit and PLC module for progressive teaching exercises.
• Integrated HMI touch screen for PLC control and automation interface training
• Motor and conveyor belt control for Industry 4.0 material transportation exercises.
• Block-sensing sensors for material positioning and detection.
• Pump box and cylinder pushrod module for pneumatic system training.
• PLC programming and HMI interaction for control logic development.
• Emergency stop module and start/stop buttons for safety operation training.
• Cross-disciplinary training covering robotic operation, motor control, sensors, pneumatics and PLC programming.
• Suitable for high school and vocational technical education, in addition to science museums and youth science centres for automation demonstrations.
