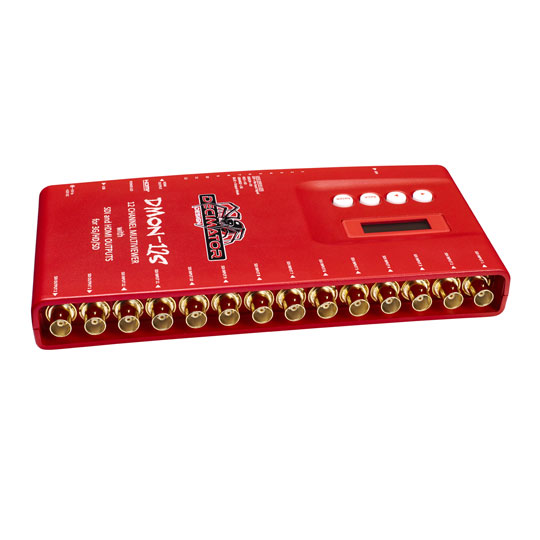

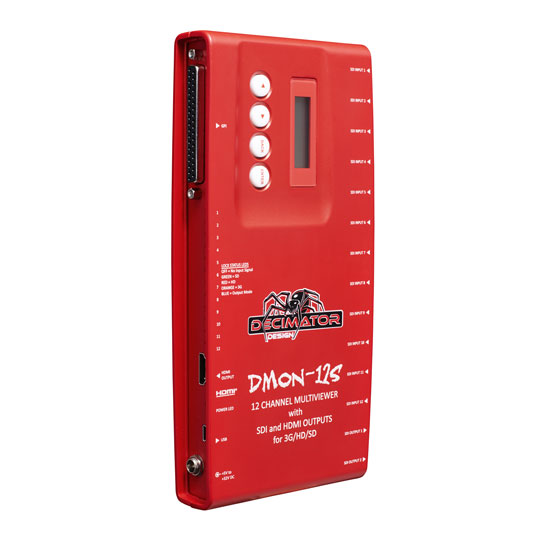

Decimator Design DMON-12S

DMON-12S: 1 to 12 Channel Multi-Viewer with HDMI and SDI Outputs for 3G/HD/SD

Decimator Design
Scan code: LN63387 Manufacturer code: DD-12S Request call
£1,078.99Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview 1 to 12 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts

The DMON-12S is a truly portable converter, which incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features that have been unavailable without a computer until now. The days of having to play with complicated dip switches or having to carry around a computer to change a simple setting are gone. Features • Low cost miniature (3G/HD/SD)-SDI 1 to 12 channel Multi-Viewer or 12 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Safe Action and Safe Title overlay per window with individual enables and adjustment
• Centre Cross overlay per window with individual enable
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
• Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 12 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• Pass-Through mode allowing any of the 12 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
• The DMON-12S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
• This unit also includes:
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
