DJI - 'Zenmuse P1'
The New Benchmark for Aerial SurveyingProfessional-level results are effortless with DJI RSC2. This compact stabiliser for mirrorless and DSLR cameras features a foldable design and intuitive features, empowering filmmakers, one-man crews, and content creators everywhere.
accuracy without GCPs3 cm horizontally / 5 cm vertically [1]
High Efficiency3 km2 covered in a single flight [2]
45 MP Full-frame Sensor

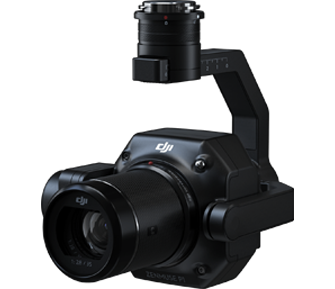

3-axis Stabilized GimbalSmart Oblique Capture
Global Mechanical Shutter[3]Shutter Speed 1/2000 Seconds
TimeSync 2.0Synchronization at the microsecond level
Your Go-to Tool for Aerial Photogrammetry

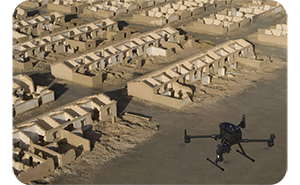

Extraordinary EfficiencyThe P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km2 [2] in a single flight.

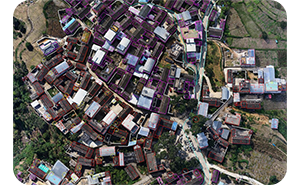

Remarkable AccuracyEquipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.

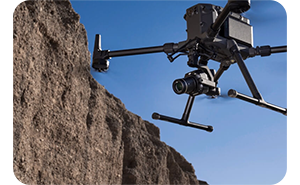

Robust VersatilityCreate 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.
Full-Frame Camera
Efficiency to Cover it All• 45MP Full-frame Sensor
• 4.4μm Pixel Size
• Low-noise, high sensitivity imaging
extends daily operational time
• Take a photo every 0.7 s during the flight
• TimeSync 2.0 aligns the camera, flight controller,
RTK module, and gimbal at the microsecond level

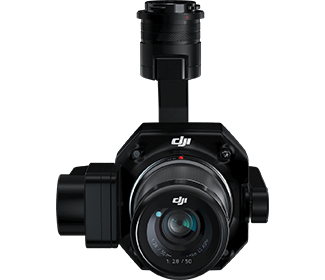

Multiple Fixed-Focus Lens Options
Flexibility to Capture it all• Global Mechanical Shutter[3], Shutter Speed 1/2000 Seconds
• Sends the median exposure pulse in microseconds

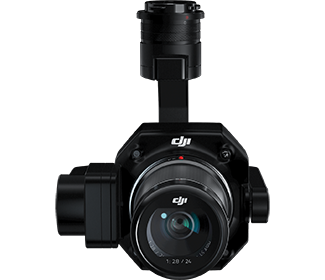

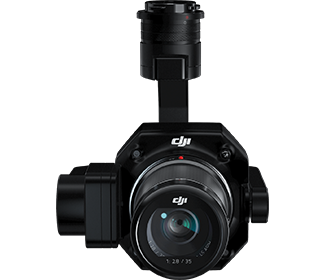

• Supports 24/35/50mm lenses with DJI DL mounts
Work Smart, Work Fast
Smart Oblique CaptureCover 7.5 km2 [4] in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20%[5] to 50%[6].
Smart Data Management

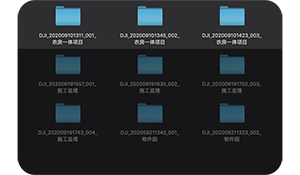

Mission result files are automatically associated with the Mission Name and Mission Time.

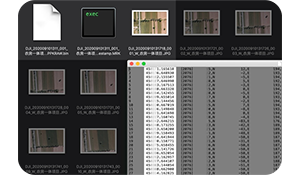

A centralized storage location for photos, GNSS data, and TimeStamps.MRK files.

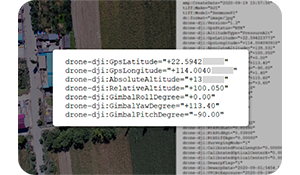

The image metadata contains the camera’s intrinsic and extrinsic parameters and the status of RTK.

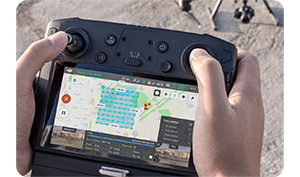

Fieldwork Report [7]Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.
A Mission Mode for Any Scenario

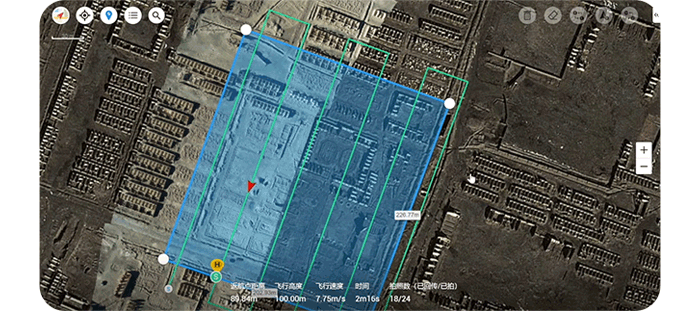

2D Orthomosaic Mission Generate orthomosaics without GCPs using the P1, perfect for medium to large-area operations.
3D Oblique MissionEffortlessly acquire oblique images from multiple angles that meet 3D modeling requirements across industries such as urban planning and centimeter-level accurate cadastral surveys to serve 3D reality models and smart city planning.
Detailed Modeling Mission Acquire ultra-high resolution image data of vertical or slanted surfaces from a safe distance that faithfully recreates fine textures, structures, and features, for detailed reconstructions, geological surveys, heritage site conservation, hydraulic engineering, and more.
Real-time Mapping Mission Gather geographic information of large areas in real-time using DJI Terra so that teams can make crucial decisions quickly on site.
Application Scenarios
Topographic MappingCapture data that meet the 1:500 scale accuracy requirements without GCPs.
Cadastral SurveyingQuickly generate centimeter-level accurate 3D reality models.
AEC and SurveyingManage the full project lifecycle with 2D and 3D drone data.
Natural Resource ManagementMeasure, classify, or determine the ownership of water bodies and forests.
Geological InvestigationSafely gather millimeter-level accurate aerial data of geological hazard sites.
Disaster Site ModelingGain real-time overviews of vast disaster-struck areas to help teams make critical decisions.
The Tech Spec
Features | Specification | Dimensions | 198 x 166 x 129 mm |
---|---|
Weight | Approx. 800g |
Power | 20W |
IP Rating | IP4X |
Supported Aircraft | Matrice 300 RTK |
Operating Temperature | -20° to 50° C |
Storage Temperature | -20° to 60° C |
Absolute Accuracy |
Horizontal: 3 cm, Vertical: 5 cm * * Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate. |
Sensor | Sensor size (Still): 35.9×24 mm (Full frame) Sensor size (Max video recording area): 34×19 mm Effective Pixels: 45MP Pixel size: 4.4 μm |
Supported Lenses | DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8° |
Supported SD Cards | SD: UHS-I rating or above; Max capacity: 512 GB |
Storage Files | Photo / GNSS Raw Observation Data/ Image Log File |
Photo Size | 3:2 (8192×5460) |
Operation Modes | Photo, Video, Playback |
Minimum photo interval | 0.7 s |
Shutter Speed | Mechanical Shutter Speed: 1/2000*-1 s Electronic Shutter Speed: 1/8000-1 s *Aperature value no larger than f/5.6 |
Aperture Range | f/2.8-f/16 |
ISO Range | Photo: 100-25600 Video: 100-25600 |
Video Format | MP4, MOV |
Video Resolution | 16:9 (1920×1080) 16:9 (3840×2160)* *Only 35mm lens supported |
Frame Rate | 60fps |
Stabilised System | Photo, Video, Playback |
Minimum photo interval | 3-axis (tilt, roll, pan) |
Angular Vibration Range | ±0.01° |
Mount | Detachable DJI SKYPORT |
Mechanical Range | Tilt: -130° to +40°; Roll: -55° to +55°; Pan: ±320° |
