DJI Zenmuse H20T Camera

DJI Zenmuse H20T Quad Sensor Camera Solution for use with the Matrice Drones

Scan code: LN110032 Manufacturer code: ZENMUSEH20T
£10,200.00Item currently awaiting an ETA
Pre order
From £278.58 / month (APR 14.9%)
Monthly Payment: £915.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £10,200.00
Total inc. interest: £10,988.21
Monthly Payment: £489.59
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £10,200.00
Total inc. interest: £11,750.07
Monthly Payment: £348.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £10,200.00
Total inc. interest: £12,544.59
Monthly Payment: £278.58
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £10,200.00
Total inc. interest: £13,371.56
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £254.76 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

DJI Zenmuse H20T Thermal Camera for DJI Matrice Drones

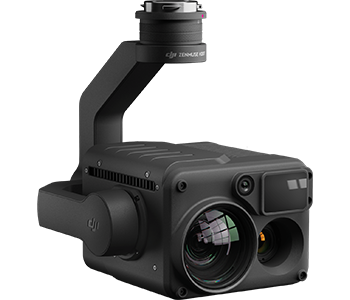

DJI Zenmuse H20T

UNLEASH THE POWER OF ONE Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms. Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

down

12 MP Wide Camera82.9° DFOV

down

20 MP Zoom Camera23× Hybrid Optical Zoom

down

Radiometric Thermal Camera640×512 px

down

Laser RangeFinder1200 m Max Range

down

IP44Rating

down

-20°C to 50°COperating Temperature

down

Active Image Stabilizationand EIS

down

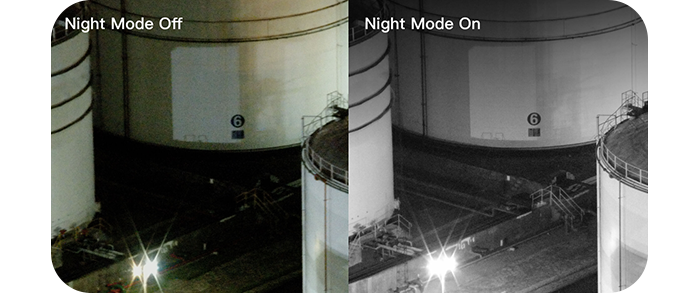

Night SceneMode

See the Full Picture

zoom

night

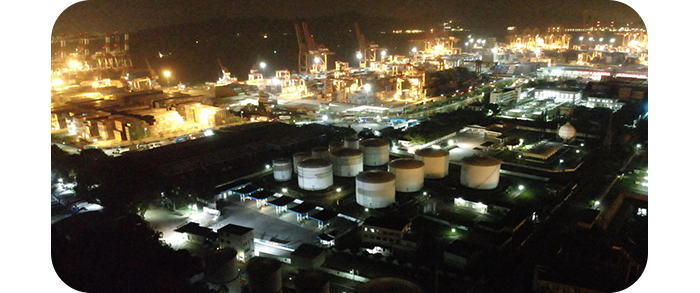

wide

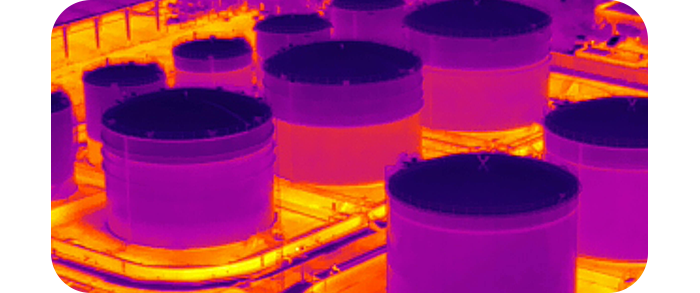

thermal

Seamless User Interface

SWITCH WITH EASEA new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

Intelligent Ways to Collect Data

back

AI Spot-CheckAutomate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.


back

High-Res Grid PhotoFrame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.


back

PinPointA quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.


back

Smart TrackIdentify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Visualize Temperatures Immediately

Accurate Temperature Measurement Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

down

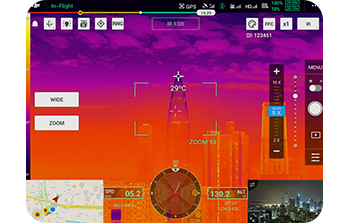

Spot MeterTap a point to get a real-time reading of the surface temperature.

up

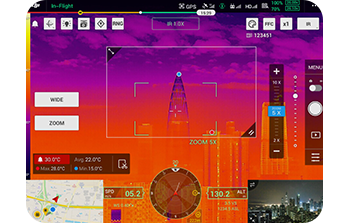

Area MeasurementSelect an area to view the lowest, highest, and average temperatures.

Utilize Intelligent Features

Gain ModesAdjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG ImagesImages captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Temp AlarmReceive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

IsothermsVisualize a specific band of temperatures to find what is important.

Color PalettesAdjust the colors applied to the thermal data based on the needs of specific scenarios.

Specifications
Legal Max Height in the UK
Max Flight Time N/A
Weight (with payload) N/A
Weight (without payload) N/A
Camera Included No
Megapixels
Still Image Resolution N/A
Video Resolution
Storage Support
CAA Registration Needed? No
Includes
Included in the Box
Additional Information
Scan Code LN110032
Model Number ZENMUSEH20T
GTIN 00
