DJI Zenmuse H20N Camera
DJI Zenmuse H20N Camera for Matrice 300 RTK, Dual Thermal Cameras, Laser Rangefinder, Starlight Night Vision
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
DJI - 'Zenmuse H20N'

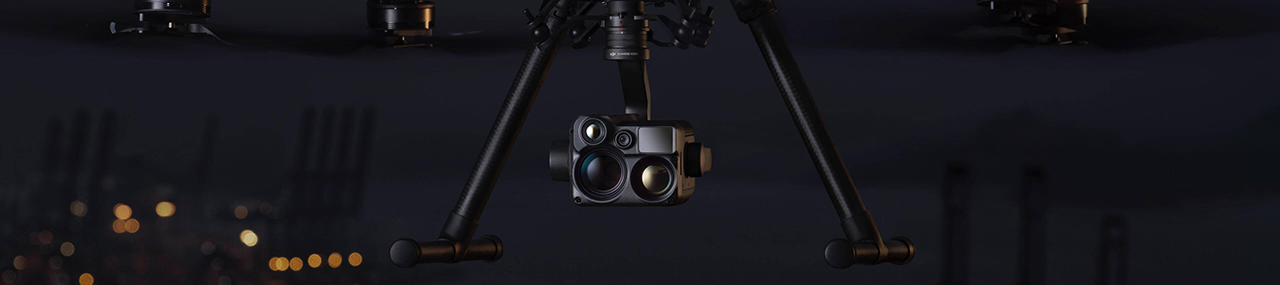

Vision Beyond Darkness
"N" for Night VisionThe Zenmuse H20N is a hybrid sensor solution that combines a starlight-grade night vision camera1, a hybrid zoom thermal imaging camera and a laser rangefinder for use with the M300 RTK, bringing a revolutionary experience to night operations. The ultra-low-illumination starlight-grade night vision camera can capture the scene clearly even in darkness, setting a new standard for search and rescue operation or emergency situations requiring immediate recognition. It features starlight-grade night vision with low illumination to 0.0001 Lux, a 20x hybrid optical zoom, 640x512 resolution thermal imaging camera, 2x\8x optical zoom and a laser rangefinder with 1200m range.
Starlight Night Vision
640×512 Dual Thermal Cameras
2×, 8× Optical Zoom
20× Hybrid
Optical Zoom
Laser Rangefinder
1200 m Max Range
Synchronized
Split-screen Zoom
Intelligent Night Scene Enhancement
IP44 Rating
-20°C to 50°C Operating Temperature
Sensors Upgraded Across Multiple Dimensions

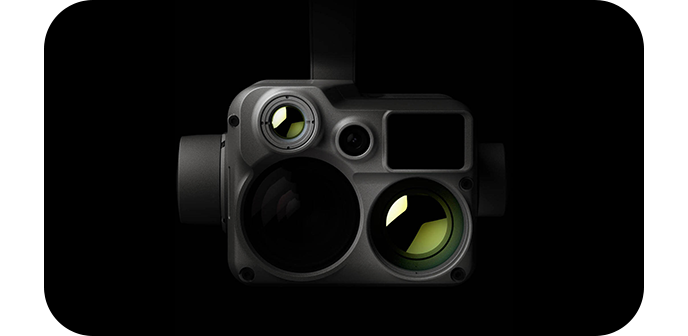

Infrared ZoomDual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm)
8x Zoom (Equivalent Focal Length: 196 mm)

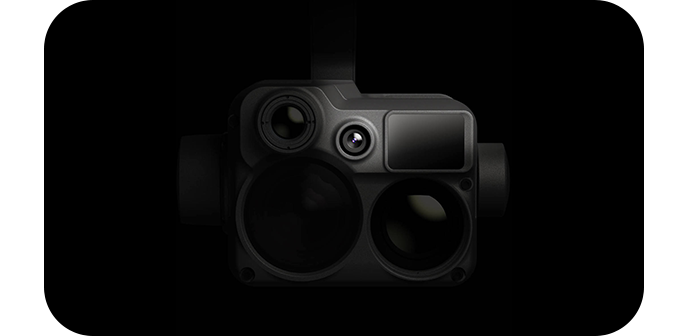

See the Big PictureNight Vision Wide Camera
Starlight Sensor: 2MP
Stronger Low-Light Performance

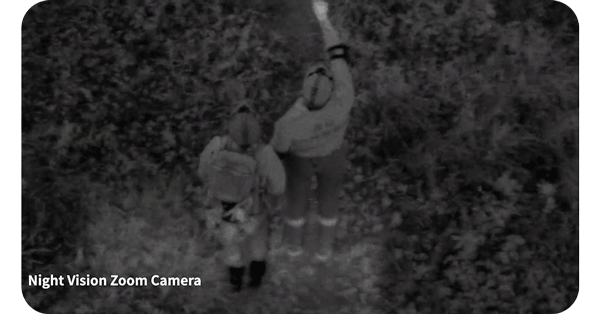

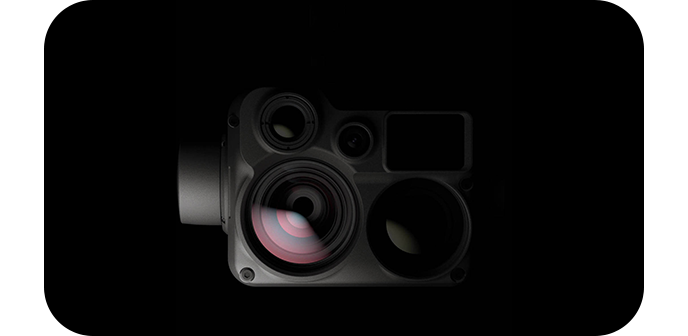

Pierce Through the VeilNight Vision Zoom Camera
Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom
Low-Light Details
Precise Distance DataLaser Rangefinder
Range: 3 m to 1200 m
Accuracy: ± (0.2 m + D×0.15%)2
Dual Thermal Cameras
See Through the NightThe zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

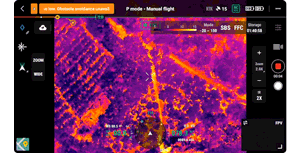

Infrared ZoomTwo thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.

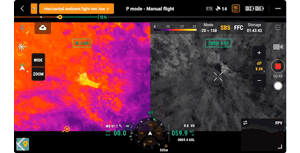

Synchronized Split-screen ZoomH20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.
More Interlligent Features
Thermal Features
Colour PalettesAdjust the colours applied to the thermal data based on the mission requirements.
IsothermsVisualise a specific band of temperatuers to highlight your targets
Temp.AlarmReceive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Gain ModesAdjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
R-JPEG ImagesImages captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
1. On clear, starry nights, people and vehicles are clearly visible at distances up to 150 meters from the drone.
2. D refers to the vertical distance between the laser rangefinder and the reflective surface.
