DJI Transmission (Standard Combo)
DJI Transmission Standard Combo, Video Transmitter/Receiver, 6KM FCC/4KM CE Transmission Range
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
DJI - 'Transmission (Standard Combo)'
Vision Beyond BoundariesDJI Transmission evolves from the DJI Aerial video transmission technology, providing and integrated solution that combines a video receiver, monitor, controller and recorder. Designed for native integration with DJI Ronin-series products and DJI Master Wheels, transforming the industry with a ground-breaking transmission experience that provides vision beyond boundaries.

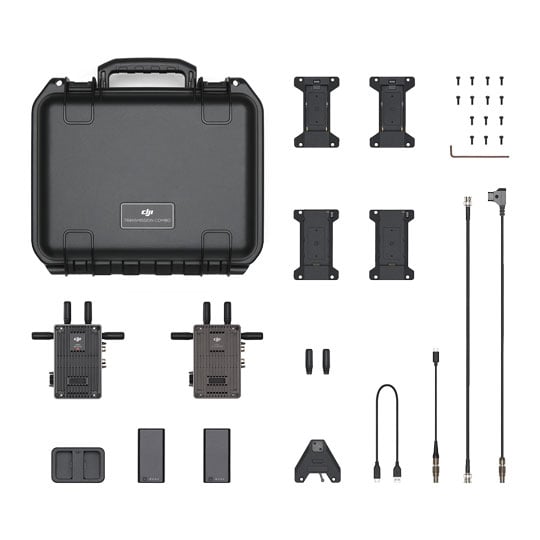

What's Included• 1x DJI Video Transmitter
• 1x DJI Video Receiver
• 2x WB37 Intelligent Battery
• 1x WB37 Battery Charging Hub(USB-C)
• 1x RS Gimbal Mounting Plate
• 2x WB37 Battery Adapter
• 2x NP-F Battery Adapter
• 1x DJI Transmission USB-C Power Cable
• 1x DC to P-Tap Power Cable
• 1x SDI Cable
• 1x USB-C Cable
• 1x Protector Case
• 2x Ronin Video Transmission Antenna
• 1x Installation Toolkit
• 1x DJI Video Receiver Product Information

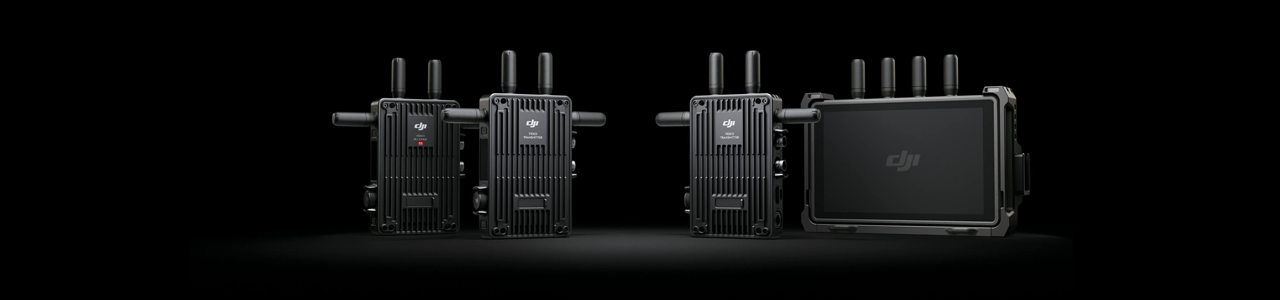

Two Transmission Combos
Two Combos, Diverse CapabilitiesThe DJI Transmission series is now available in both a High-Bright Monitor Combo and a Standard Combo, meeting the needs of diverse shooting scenarios.

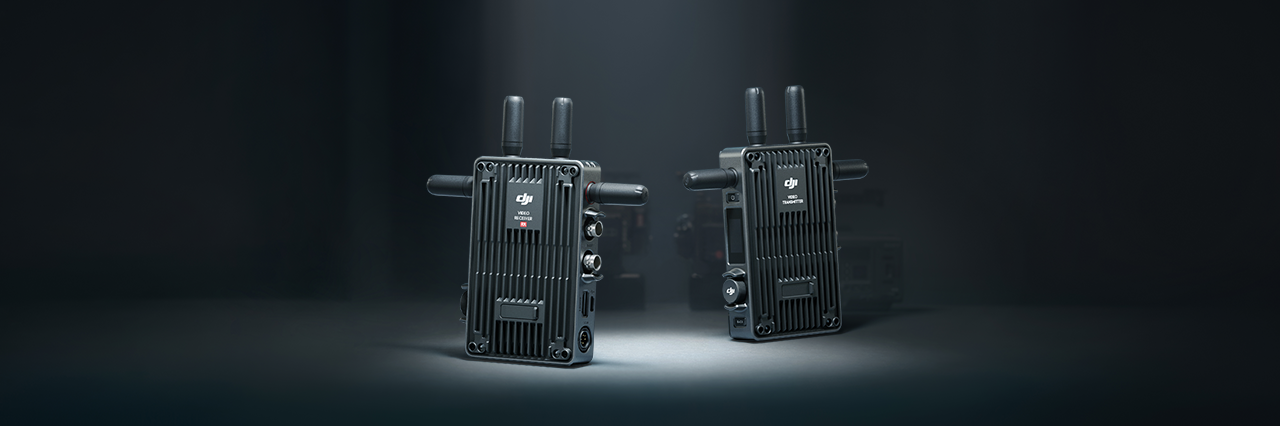

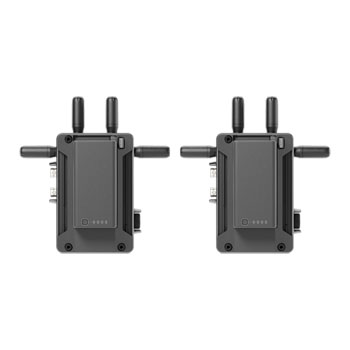

Standard ComboIncludes a DJI Video Transmitter and a DJI Video Receiver.
This combo delivers extended-range, low-latency transmission, making it especially suitable for use with production monitors. It also now supports metadata transmission via SDI in addition to the output of fractional frame rates.
Available Here
High-Bright Monitor ComboIncludes a DJI Video Transmitter and a DJI High-Bright Remote Monitor.
This integrated solution combines reception, monitoring, recording and control into one. Combined with the extensive DJI PRO ecosystem, it delivers a more efficient coordinated experience.
Available Here
A New Era of Transmission Performance

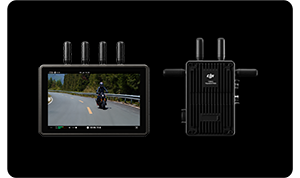

Long-Distance HD Live FeedDJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft [1] on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 50Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.

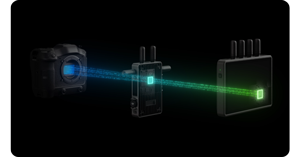

End-to-End Ultra-Low LatencyThe video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.
Seamless Auto Frequency HoppingO3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

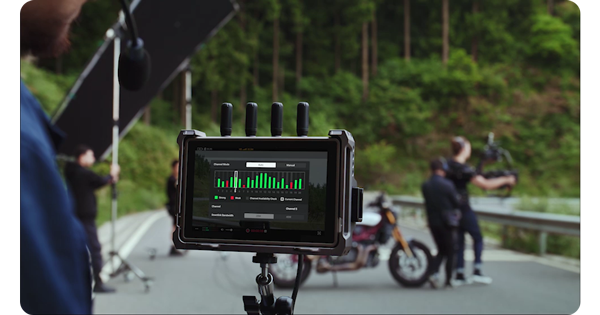

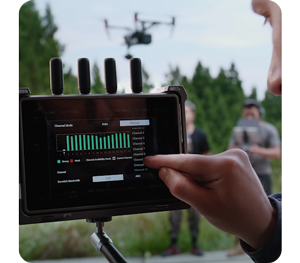

With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices.

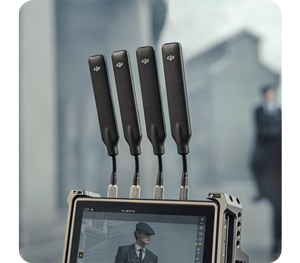

By mounting high-gain antennas, [2] transmission capability is further boosted.

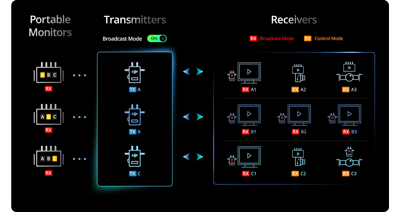

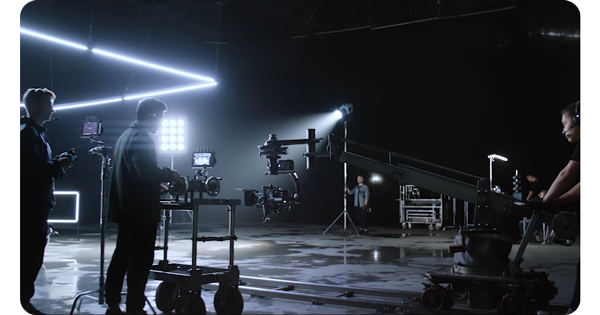

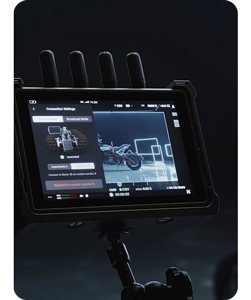

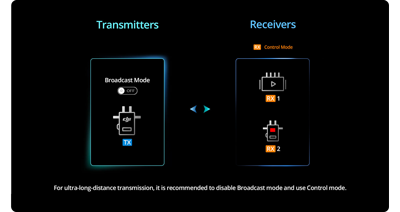

One Transmitter with Multiple ReceiversBoth the High-Bright Remote Monitor and the Video Receiver support one transmitter with multiple receivers for video and audio feeds in two transmission modes. The default Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams such as lighting, art department, and makeup on sets with large crews, and a live feed's bitrate and input feed's video codecs can be displayed in real-time as well. If you want to switch camera index for monitoring, simply select the corresponding index without having to check the transmission channel, which greatly enhances the shooting efficiency.
To connect to DJI Master Wheels or other control devices, select Control mode on the High-Bright Remote Monitor or the Video Receiver and pair it with the Video Transmitter. Then, Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely on up to two receiving ends while not affecting other devices connected via Broadcast mode. In addition, the Video Receiver supports voice calls for real-time, one-on-one, ultra-long-distance voice transmission, providing seamless communication between the cinematographer and the director or client.
Diverse Settings
Camera Metadata Support

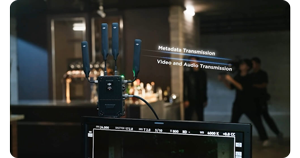

Transmission of MetadataThe DJI Video Receiver supports camera metadata transmission via SDI. When used with ARRI, RED, and other mainstream cinema cameras, it can transmit file name, timecode, recording trigger, camera settings (aperture, focal length, etc.), and lens information (aperture, focal length) from the receiver to monitors and QTAKE, allowing directors, cinematographers, and DIT teams to receive detailed shooting information on set.

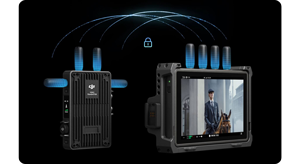

AES 256-bit Encryption
Encypted TransmissionDJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.
Monitoring Experience
Integrated DesignCompared with conventional solutions, DJI Transmission integrates a high-bright monitor with a built-in receiver, providing optimum portability and efficient setup to help you get started fast in any setting.
The remote monitor comes with a built-in image processing chip that is the same as the one used on Ronin 4D. This allows it to offer many features in addition to monitoring for integrated and efficient receiving, monitoring, control, and recording.

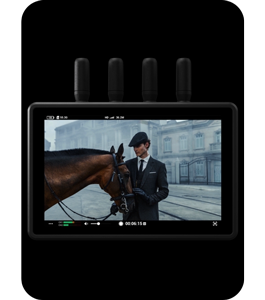

Wide-Gamut TouchscreenThe High-Bright Remote Monitor is equipped with a 7-inch wide-gamut touchscreen with a brightness of up to 1,500 nits. It comes standard with a tempered glass screen protector and professional monitor hood to deliver rich, true-to-life colours, even in strong lighting conditions. With a 1920×1200 resolution, the screen displays a non-intrusive interface (OSD), with visible details like shooting parameters to ensure easily accessible information and seamless monitoring.

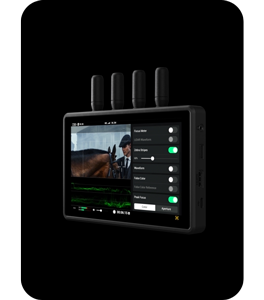

Supportive ToolsThe remote monitor comes with supportive tools like safe zone, frame guide, zebra stripes, false colour, peaking, and waveform for precise composition, exposure, and focusing.

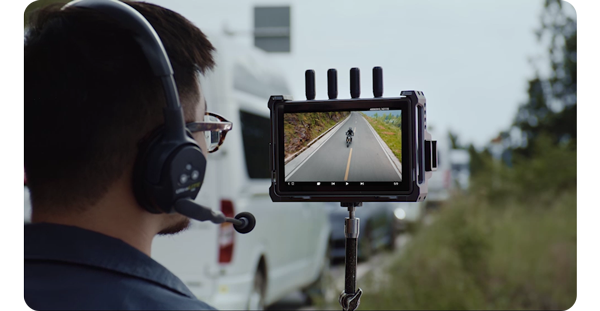

Independent Recording and PlaybackThe remote monitor also features a microSD card slot and allows for recording and playback of a 1080p/60fps H.264 live feed, as well as simultaneous access to video timecodes, [3] making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.
Expansive Control Options

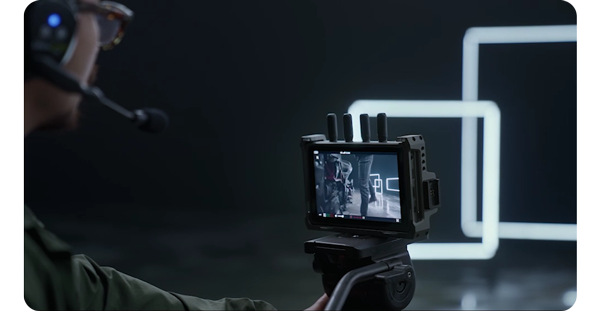

Built-In Motion ControllerThe High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.

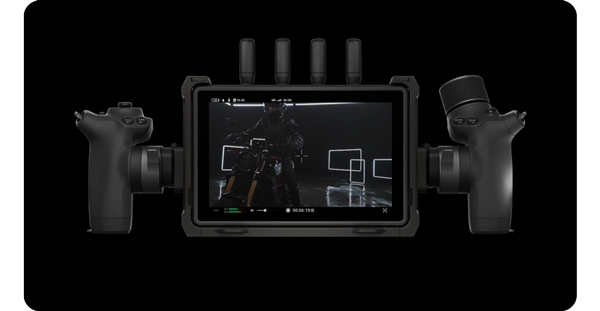

Compatible with Ronin 4D Hand GripsThe High-Bright Remote Monitor comes with an expansion-protective frame. When using with Ronin 4D Hand Grips, [2] the joystick can control the Ronin 2 or RS 3 Pro gimbal, and the focus wheel can control focusing and the adjustment of camera parameters like aperture, shutter, and ISO, while the record button controls start/stop of recording, [4] making the RS 3 Pro user experience similar to that of Ronin 4D.

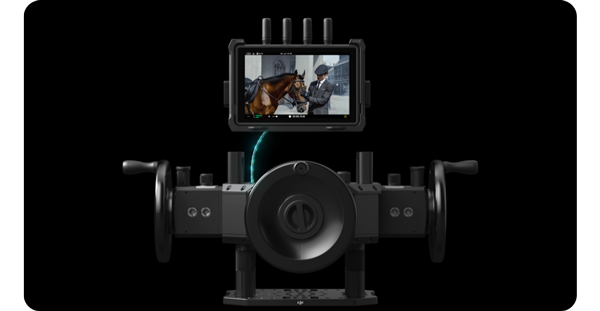

DJI Master WheelsWhen used with the DJI Master Wheels or DJI Force Pro, [5] the remote monitor allows users to achieve more advanced gimbal control when using Ronin 2 or RS 3 Pro. In this scenario, the original equipment will transmit control signals directly through DJI Transmission, no longer utilizing the wireless signals from DJI Master Wheels or DJI Force Pro. This boosts the transmission performance by three times and enhances signal range, stability, and anti-interference capabilities.

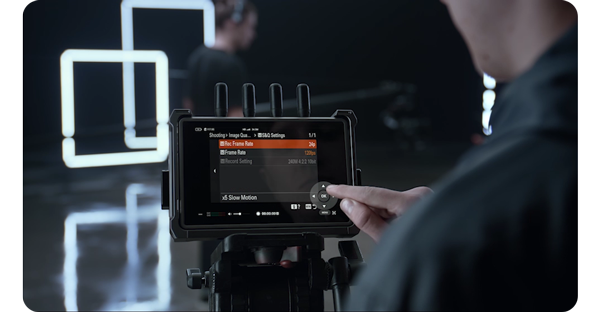

Mirror Control ModeWhen RS 3 Pro is mounted to jibs, cable cams, and vehicles, with Mirror Control mode, [6] you can remotely control the menu of Sony mirrorless cameras from anywhere on set.
Ports and Power Supply

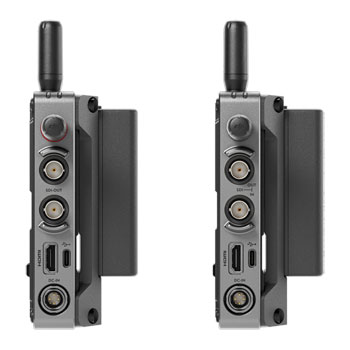

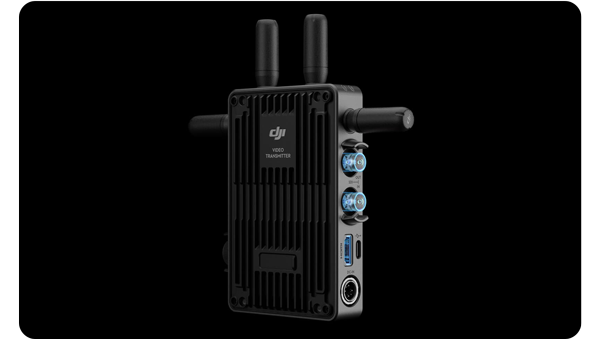

Video Transmitter Ports
3G-SDI Loop Out PortSupports output of 1080p/60fps videos
3G-SDI Input PortSupports input of 1080p/60fps videos
HDMI 1.4 Type-A Input PortSupports input of 1080p/60fps videos
USB Type-C portFor voice calls and firmware updates.
Power Input Port 6.8 V to 17.6 V power input (including CAN input and output, and connection with Ronin 2 or RS 3 Pro)

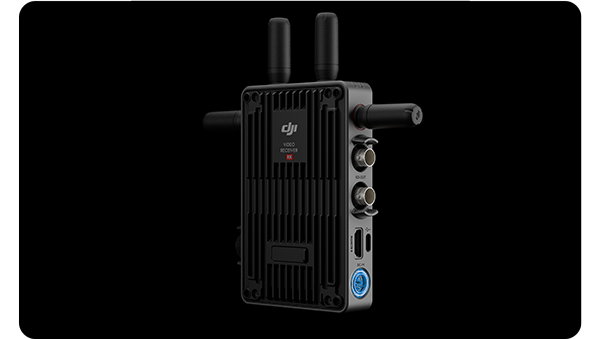

Video Receiver Ports
3G-SDI Output Port Supports output of 1080p/60fps videos
HDMI 1.4 Type-A Input PortSupports input of 1080p/60fps videos
USB Type-C portFor voice calls and firmware updates.
Power Input Port 6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels).

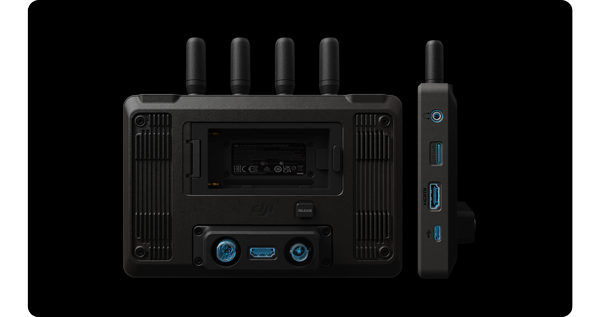

High-Bright Remote Monitor Ports
3.5mm Stereo JackMonitors audio in real time
micro SD card slotFor internal recording and playback on the monitor
HDMI 2.0 Type-A Input PortSupports input of 4K/60fps videos
USB Type-C portFor firmware updates
Power Input Port[7]6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro). [5]
HDMI 1.4 Type-A Output Port[7]Supports output of 1080p/60fps videos
3G-SDI Output Port [7]Supports output of 1080p/60fps videos

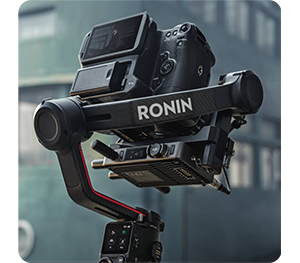

Direct Power Supply by GimbalDJI Transmission can pair with Ronin 2 or RS 3 Pro for a customized shooting solution. The Video Transmitter can be mounted directly to the cold shoe on the bottom of the gimbal and powered by it directly without additional batteries.

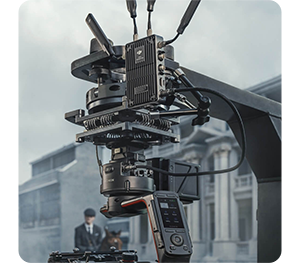

Mounted on Ronin 2
MOunted on RS 3 Pro
Other Power Supply Solutions
WB37 Power SupplyThe Video Transmitter and High-Bright Remote Monitor are all compatible with the DJI WB37 Battery
NP-F Power SupplyThey can also use the included NP-F Battery Adapter for universal batteries.
V-mount Power SupplyThird-party V-mount battery adapters can also be used to provide power to the video transmitter and remote monitor using V-mount batteries. Pogo pins can be found on the front and rear of the video transmitter to mount the specialized V-mount battery adapter to a camera for integrated power supply of the camera and the video transmitter.
DC-IN Power SupplyFor a continuous power supply, a P-TAP to DC-IN power cable can be used to connect to an external power source.
