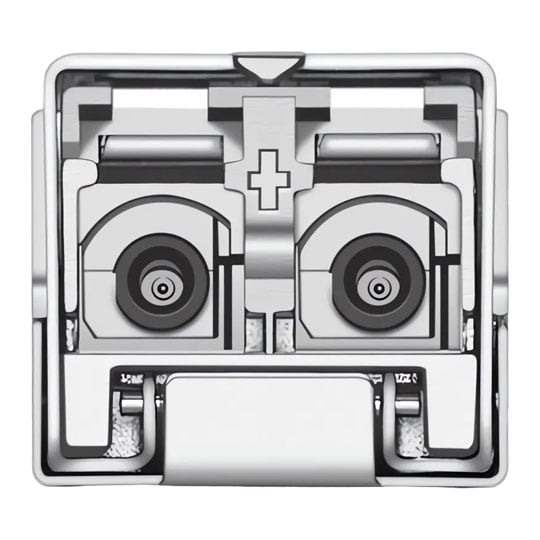

Dell Compatible 25GBASE-SL SFP28 DOM Duplex Optical Transceiver Module
Dell Compatible SFP28 Optical Transceiver, 25GBASE-SL, OM4 MMF, 850nm, 30m, DOM, Duplex LC
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Simple 25G Upgrade Path
At its core, this Dell-compatible SFP28 optical transceiver provides a straightforward way to boost network speed. It connects using LC duplex connectors and supports distances up to 30m over OM4 multimode fibre at 850nm. Because it runs on existing 1G and 10G cabling infrastructure, it allows a smooth transition to 25G—delivering at least a 2.5× speed increase without requiring a full rebuild.
How the Signal is Delivered
The module uses a VCSEL transmitter to send data and a PIN receiver to capture it, forming the backbone of its optical performance. It operates at up to 25.78Gbps, with TX power between -8.4 and 2.4dBm and receiver sensitivity down to -10.2dBm. With a 1.9dB power budget, 2dB extinction ratio, and BER of 1E-12, it maintains clean signal delivery even at high data rates, supported by TX/RX CDR and RS-FEC for signal correction.
Macom Chip
A built-in Macom chip supports stable 25G transmission while keeping efficiency in check, helping maintain consistent performance across demanding data centre workloads.
Integrated DOM
To ensure compatibility, the transceiver complies with SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE 802.3by, and IEEE 802.3cc standards. It also includes Digital Optical Monitoring (DOM), which provides real-time insight into operating conditions—allowing users to track performance metrics and identify potential issues early.
Features
• SFP28 optical transceiver delivering up to 25.78Gbps over existing 1G/10G cabling.
• Supports 30m transmission over OM4 multimode fibre using 850nm wavelength.
• Uses VCSEL transmitter and PIN receiver for stable high-speed optical signalling.
• Keeps power consumption below 0.6W for efficient high-density deployments.
• Built-in Digital Optical Monitoring (DOM) for real-time performance visibility.
• Includes TX/RX CDR and RS-FEC support for signal integrity and error correction.
• Individually tested in targeted switches to ensure reliable interoperability.
• Suitable for 25G Ethernet, telecom, and data centre environments.
Form Factor: SFP28
Max Data Rate: 25.78Gbps
Wavelength: 850nm
Max Distance: 30m
Media: MMF (OM4)
Transmitter / Reciever: VCSEL
/ PIN
TX Power: -8.4 to 2.4dBm
Receiver Sensitivity: -10.2dBm
Power Budget: 1.9dB
Receiver Overload: 2.4dBm
Extinction Ratio: 2dB
Power Consumption: <0.6W
