Deepcool Tristellar SW Mini ITX Gaming PC Case with Window

Deepcool Tristellar SW, Multi Cabin Mini ITX Computer Gaming Chassis, Black, with Window, 2x USB 3.0, 320mm GPU Support

DEEPCOOL
Scan code: LN65772 Manufacturer code: Tristellar SW Request call
£239.99
In stock
Pay on Scan Finance with a 10% deposit from just £5.99 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD On 22nd Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £9.58 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

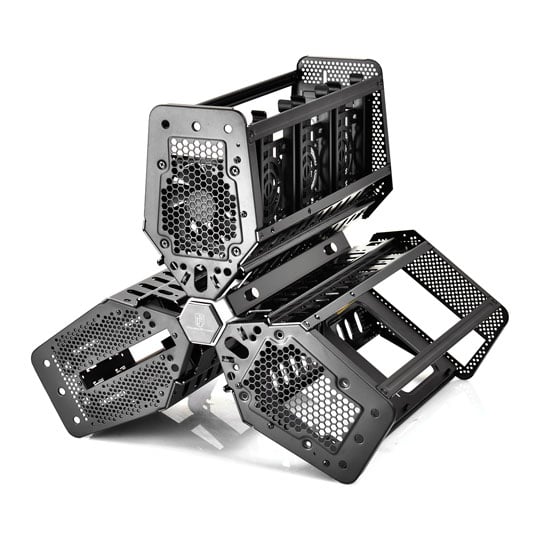

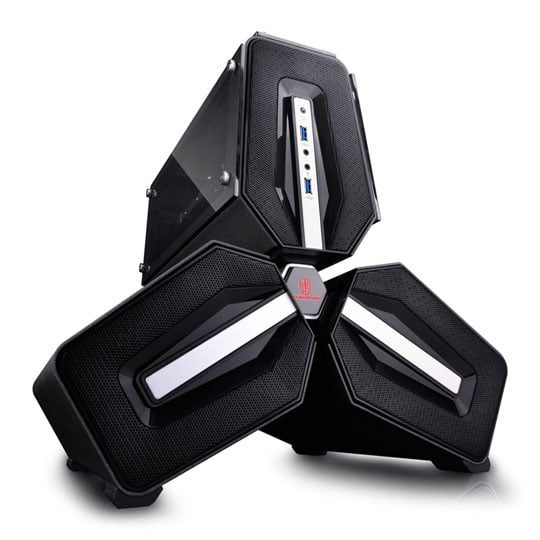

Product Overview Tristellar SW disrupts the traditional concept of a PC case, splits components into three cabins; three high hardness “V” shape metal frames and full metal shells ensure Tristellar has a reliable and solid structure, the system is not only for an artistic appearance, but also a great cooling performance by separating the most heat-generating parts of a PC.

The case supports the latest gaming configuration, it is an excellent choice for gamer or PC builder who want a case with both high performance and aesthetics.

Graphics Card Cabin
This cabin supports full-length (up to 320mm) graphic cards, which is connected to motherboard by a short PCI-E extension cable. Included 90mm case fan in front provides sufficient airflow to the cabin, next to graphic card slot, there are three 2.5"SDD bays with hot plugging (SATA) ports.

Motherboard Cabin
Motherboard cabin supports Mini-ITX motherboard with either Intel or AMD base; low profile (up to 80mm) CPU air cooler or 120mm radiator, it allows to install 120mm case fan as long as radiator is not installed.

Power Supply Cabin
PSU cabin is capable to accommodate 160mm length PSU, it includes two 3.5" HDD bays with hot plugging (SATA) ports, and supports one 5.25" slot-load optical drive installation.

Other Design Elements
To connect components together, cables pass through a hollow aluminum spine in central of ‘’V’’ shape frames, which comes with a LED power button at the front. I/O ports on the top cabin is great for accessibility, it includes two USB 3.0 ports and Audio/Mic ports. Features • Unique compartmentalised system.
• Reliable and solid structure.
• Full black interior.
• Supports the latest gaming configurations.
• Supports long graphics cards up to 320mm in length.
• Supports 1x 120mm liquid cooler radiator.
• Supports standard ATX PSUs with dimensions upto 150x160x86 mm.
• 5x (SATA) Hot-swap ports: Supporting 2x 3.5''HDD / 3x 2.5'' SSD.
• Toughened Glass Side Windows on GPU Compartment enable you to show off your High Performance Graphics Card.
Specifications
Case Edition Tristellar SW
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
Material SPCC / Toughened Glass
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal
  • 2 x 3.5" Internal
  • 1 x 5.25" Tray-load ODD
Expansion Slots 3
Fan Bays
  • 1 x 120mm
  • 1 x 90mm
Fans Included 1 x 90mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 85 mm
Max VGA Card Length 320 mm
Colour Black
Dimensions 435 x 388 x 395 (WxHxD mm)
Weight 16 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
RTB Period:
12 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Reviews
Deepcool Tristellar SW, Multi Cabin Mini ITX Computer Gaming Chassis, Black, with Window, 2x USB 3.0, 320mm GPU Support is rated 3.0 out of 5 by 2.
Rated 3 out of 5 by from Looks great but difficult to build and overheats I really wanted to like this case, but the CPU cabin overheats tremendously to the point that the fan is so loud I can easily hear it blowing away with my headphones on. In addition it is a pain in the ar$e to work with when installing your kit - it wasn't well designed at all and the quality isn't what I expected. For an ITX case it is very heavy, I don't know why they didn't go with aluminium for the chassis to keep it cooler and lighter. The only thing it has going for it is that it looks nice, but no one really gets to see your PC do they??
Date published: 2017-02-18
Rated 3 out of 5 by from Great case This is a great looking case, it is tuff to work in but the end result looks spectacular. The one downside for me was that the cpu section just wasn't being cooled enough, my card got very hot at 87 degrees so some modding to increase cooling would be advisable
Date published: 2016-10-21
