Scan code: LN90634 Manufacturer code: DP-GS-H12L-CSL280RGB

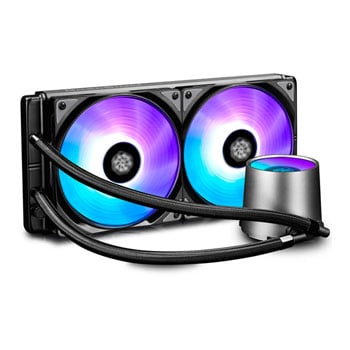

Deepcool GamerStorm Castle 280 RGB Cooler AIO CPU Water Cooler Intel/AMD

Deepcool GamerStorm Castle 280 RGB AIO Liquid Cooler, 280mm All-In-One Hydro CPU Cooler, 2x140mm RGB Fans Intel/AMD

Thumbnail 1 : Deepcool GamerStorm Castle 280 RGB Cooler AIO CPU Water Cooler Intel/AMD Thumbnail 2 : Deepcool GamerStorm Castle 280 RGB Cooler AIO CPU Water Cooler Intel/AMD Thumbnail 3 : Deepcool GamerStorm Castle 280 RGB Cooler AIO CPU Water Cooler Intel/AMD Thumbnail 4 : Deepcool GamerStorm Castle 280 RGB Cooler AIO CPU Water Cooler Intel/AMD
Scan code: LN90634 Manufacturer code: DP-GS-H12L-CSL280RGB
£119.99
From £10.78 / month (APR 14.9%)
Monthly Payment: £20.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £124.93
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

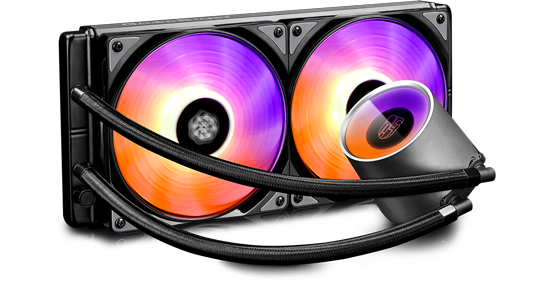

Product Overview DEEPCOOL, the company that specializes in water-cooled and illuminated cases for the PC enthusiast has just introduced a brand new AIO liquid cooler- CASTLE 280RGB, suitable for Intel and AMD based systems. Its featured built-in double window panes and 16.7M true color lighting system provide a perfect display of aesthetic illumination. Its ultra-large, pure copper CPU block and its optimized E-shaped micro water channel designed to enlarge heat contact areas and effectively enhance heat circulation efficiency meet users' needs for high performance and aesthetics

• Double window panes and immersive ambient lighting are designed to provide a perfect display of aesthetic illumination.
• The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
• Motherboards are supported with synchronized lighting control via addressable RGB function*
• Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
• An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
• The ceramic axle bearings and axle cores guarantee an ultra-long service life.
• It supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.

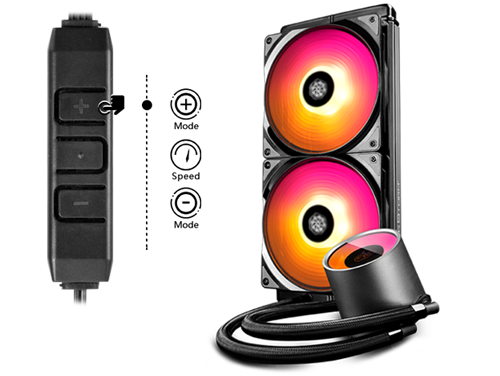

The brand new water-block comes with double window panes and an immersive ambient lighting design which provides a perfect display of aesthetic illumination. In addition, the synchronized RGB lighting system of waterblock and fans are easily controlled with a wired controller (included)

The 16.7M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes and also supports motherboards with synchronized lighting control via an addressable RGB function*

The optimized E-shaped micro water channel design effectively enhances heat circulation efficiency and enlarges heat contact areas

It seamlessly supports the TR4/AM4 and mainstream Intel & AMD socket types

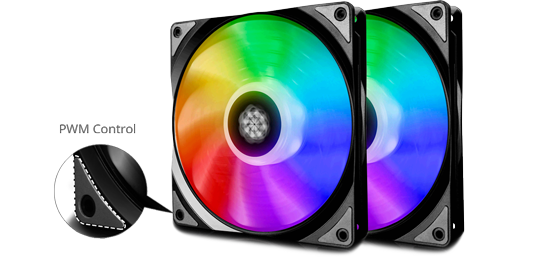

The latest 140mm RGB case fans provide a flowing lighting effect, designed for builders with addressable RGB-enabled PCs to match your system's style perfectlyExhaustive damping technologies successfully minimize noise while maximizing airflow

Features Pump Dimensions 91×79×71mm(L×W×H)
Radiator Dimensions 323×146×27mm(L×W×H)
Radiator Material Aluminum
Fan Dimensions 140×140×26mm(2pcs)
Fan Speed 500±200~1800±10%RPM
Fan Air Flow 96.7CFM
Fan Air Pressure 2.83mmH2O
Fan Life Expectancy 40000 hours
Fan Noise Level 19.8~35.4dB(A)
Fan Bearing Type Hydro Bearing
Fan Connector 4Pin
Fan Rated Voltage 12VDC
Fan Rated Current 0.02±15%A(20%)-0.32±10%A
Fan Power Consumption 3.84W
Pump Life Expectancy 120000 hours
Pump Connector 3Pin
Pump Operating Voltage 10.8~13.2VDC
Pump Rated Voltage 12VDC
Pump Speed 2550±10%RPM
Pump Load Current 0.21±10%A
Pump Power Consumption 2.52W
Net Weight 1559±10g
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 0.48±10%A
LED Rated Power 2.4W
LED Connector 3pin(+5V-D-G)
LED Control M/B with 5V ADD-RGB Header
EAN 6933412726494
P/N DP-GS-H12L-CSL280RGB
Specifications
Cooler Specifications
Edition Castle 280 RGB
Cooler Form Factor 280mm All-In-One Hydro Cooler
Heatpipes
Cooler Features
  • RGB LED CPU Block
  • Sleeved Tubing
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 2066
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
  • TR4
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 140mm w/ RGB LEDs
Fan Edition
PWM Fan Yes
Fan Bearing Type Hydro-Dynamic Bearing
Fan Colour Black
LED Lighting RGB
Fan/Pump Connectors
  • 1 x 3-pin
  • 1 x 4-pin
Max. Fan Speed 1800 rpm
Max. Fan Airflow 96.7 CFM
Max. Air Pressure 2.83 mm H²O
Max. Sound Level 35.4 dBA
Materials
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 323 x 146 x 27 mm (WxHxD)
Total Dimensions
Weight 1559 g
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
