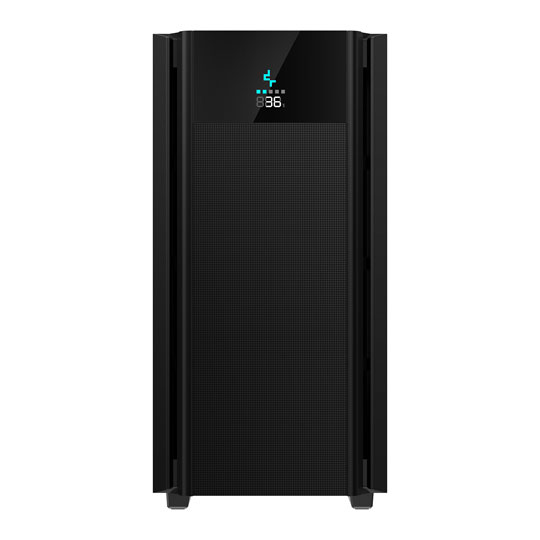

DeepCool CH510 Mesh Digital Mid Tower Tempered Glass PC Gaming Case

DeepCool CH510 Mesh Digital Chassis w/ TG Window, Black, 1x 120mm Fans, USB Type-C, E-ATX/ATX/mATX/mITX

Thumbnail 1 : DeepCool CH510 Mesh Digital Mid Tower Tempered Glass PC Gaming Case Thumbnail 2 : DeepCool CH510 Mesh Digital Mid Tower Tempered Glass PC Gaming Case Thumbnail 3 : DeepCool CH510 Mesh Digital Mid Tower Tempered Glass PC Gaming Case Thumbnail 4 : DeepCool CH510 Mesh Digital Mid Tower Tempered Glass PC Gaming Case
Scan code: LN128776 Manufacturer code: R-CH510-BKNSE1-G-1
Order now and get it tomorrow, Wed 24th Jul
£59.99
Get it Tomorrow, 24 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

CH510 Mesh Digital Black Mid-Tower ATX Case from DeepCool

CH510 Case

High Airflow and Unique Design The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information up front.

Mid TowerForm Factor

mITX/mATX/ATX/E-ATXCompatible Motherboard Sizes

1×120mmPre-installed Fan

Clear and Accurate Temperature Display

Display

BUILT-IN DISPLAYMonitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.

Stylish and Convenient

Clear View

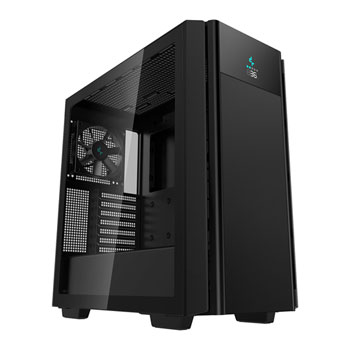

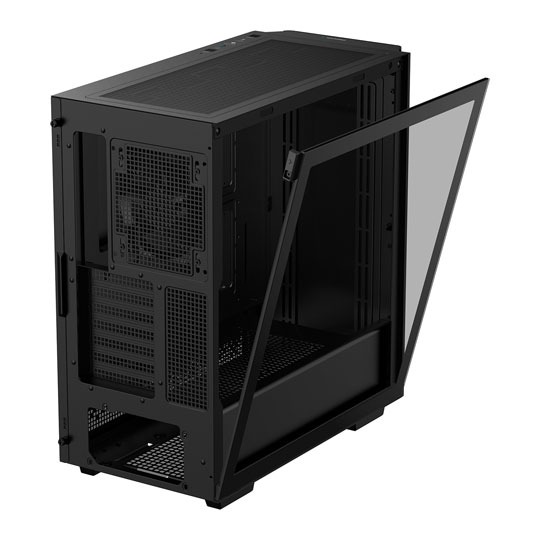

Magnetic Tempered Glass WindowThe clean tempered glass side panel offers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.

WIDE AND SPACIOUS INTERIORMaximise potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.

Connectivity

Fast & Accessible ConnectivityFeaturing a USB 3.0 port, USB Type-C port, mic/audio port, a reset button and a power button, the top front panel provides a series of easily accessible I/O for your favourite devices.

Plenty of Cooling Space

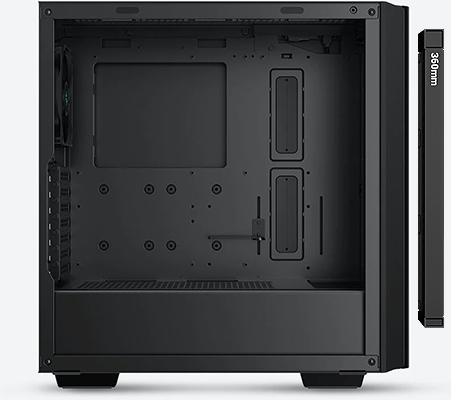

MORE CAPACITY, MORE POWERThe CH510 MESH DIGITAL provides ample mounting locations to install your cooling solutions. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.

9x120mm
5x140mm
360mm Radiator
Specifications
Core Chassis Specifications
Case Edition CH510 Mesh Digital
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x USB 3.0 Type-C
Drive Bays 2 x 3.5" / 3x 2.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 9 x 120mm / 5x 140mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility
  • 1 x 120/140/240/280/360mm
  • 1 x 240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 175 mm
Max GPU Card Length 380 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters Included LED Fan/s
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 170 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials ABS / SPCC
Dimensions 230 x 470 x 455 (WxHxD mm)
Weight 7.5 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN128776
Model Number R-CH510-BKNSE1-G-1
GTIN 6933412775072
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
3 months
Manufacturer Contact Details
Manufacturer:
Beijing Deepcool Industries Co
Telephone:
Scan 0871 472 4747
