Product Overview

DeepCool ASSASSIN IV VC VISION Cooler

DeepCool's flagship air cooler series gets an upgraded addition in the form of the ASSASSIN IV VC VISION. The cooling capacity gets a nice bump with the inclusion of a vapor chamber at the base that pushes the TDP to 300W! The upgrades don't stop there, as a high-end quad-segmented digital display has also been added to the already impressive ASSASSIN IV cooler. An aesthetical cooling powerhouse that has two sound profiles and a digital screen—air coolers can have it all.

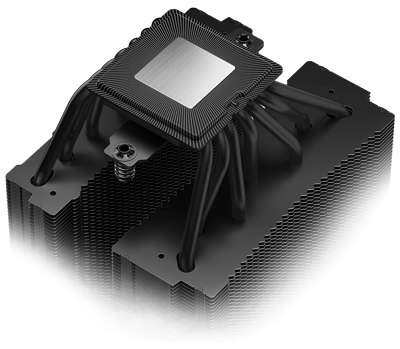

Vapor Chamber-Enhanced

Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

The Digital Touch

The standout addition of the ASSASSIN IV VC VISION is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The digital panel is magnetized, so installation and adjustments are extremely simple. The display is controlled via DeepCool software and only requires an open USB 2.0 header.

Visual Temperature Alerts

A temperature warning alert system has been integrated with a color-coded visual thermometer indicator: under 80 °C, the indicator will stay green; between 80 °C and 90 °C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.

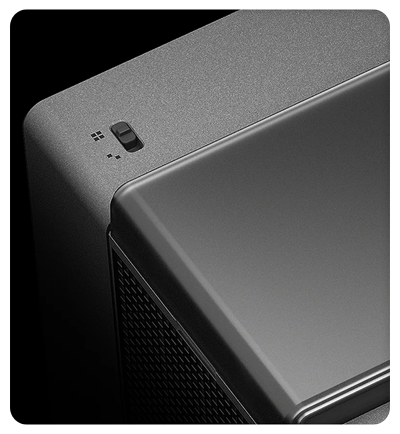

Quiet or Performance Mode

With a simple slide of a switch, the ASSASSIN IV VC VISION can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.

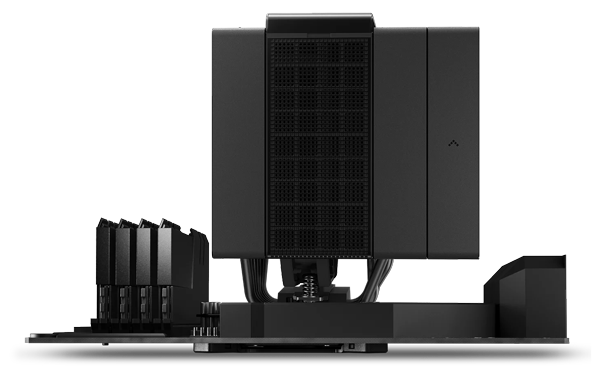

All Clear!

The ASSASSIN IV VC VISION's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.

Be Cool, Be Calm

A key factor in the ASSASSIN IV VC VISION's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason. DeepCool is so confident in our new design that the ASSASSIN IV VC VISION comes with 6 years of limited warranty coverage!

Exceptional by Design

Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissipation. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

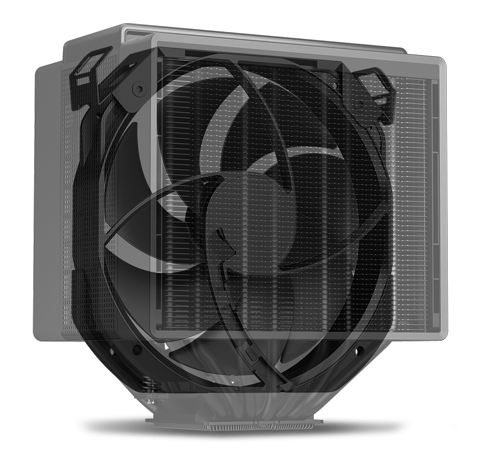

The Flow Below

Due to the center 140mm fan sitting deep into the heart of the ASSASSIN IV VC VISION, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.

Streamlined Installation

Installing larger air coolers can be difficult, which is a prime reason the hardware and installation were designed to be extremely user-friendly with the 172mm tall ASSASSIN IV VC VISION. Even the magnetic display panel and main fan sliding design were crafted with ease of installation in mind.

Features

• Product Dimensions: 147×144×172 mm(L×W×H).
• Fan Speed (Performance Mode): 500~1800 RPM±10% / 500~1700 RPM±10%.
• Fan Airflow (Performance Mode): 61.25 CFM / 58.06 CFM.
• Overall Noise (Performance Mode): 29.3 dB(A).
• Intel Compatibility: LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155.
• AMD Compatibility: AM5/AM4.

Specifications

Cooler Specifications
Edition	ASSASSIN IV VC VISION
Cooler Form Factor	Dual Tower
Heatpipes	7
Cooler Features
Socket Compatibility	1150 1151 1155 1200 1700 1851 2011 2011-3 2066 AM4 AM5
Max. TDP

Fan Specifications
Included Fan Configuration	1 x 120mm 1 x 140mm
Fan Edition
PWM Fan	Yes
Fan Bearing Type	Fluid Dynamic Bearing
Fan Colour	Black
LED Lighting
Fan/Pump Connectors	2 x 4-pin PWM
Max. Fan Speed	1800 rpm
Max. Fan Airflow	61.25 CFM
Max. Air Pressure	3.76 mm H²O
Max. Sound Level	29.3 dBA

Materials
Cooler Materials
Included TIM (Thermal Interface Material)

Dimensions & Weight
Heatsink/Radiator Dimensions	110 × 160 × 140 mm (WxHxD)
Total Dimensions	144 x 172 x 147 mm (WxHxD)
Weight	1780 g

Additional Information
Scan Code	LN152115
Model Number	R-ASN4-BKNVMD-G
GTIN	6933412729136
