Scan code: LN136831 Manufacturer code: R-ASN4-BKNNMT-G

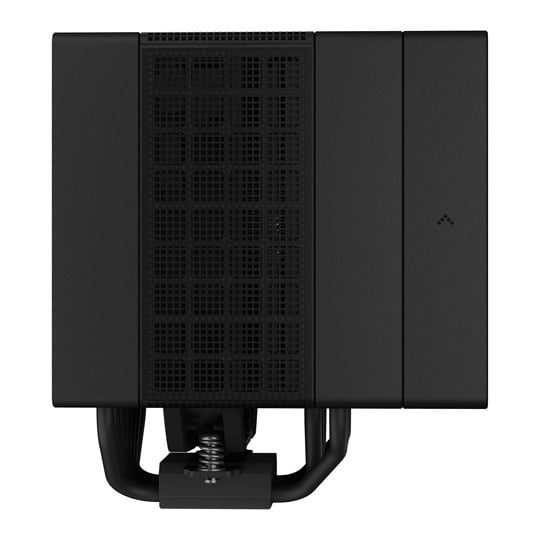

DeepCool ASSASSIN IV Dual Tower 7 Heatpipe Performance CPU Air Cooler Intel/AMD

DeepCool ASSASSIN IV Air CPU Cooler, 1x120mm/1x140mm PWM Fans, Dual Tower, Aluminium Fins, 7x Heatpipes, Quiet Intel/AMD

Thumbnail 1 : DeepCool ASSASSIN IV Dual Tower 7 Heatpipe Performance CPU Air Cooler Intel/AMD Thumbnail 2 : DeepCool ASSASSIN IV Dual Tower 7 Heatpipe Performance CPU Air Cooler Intel/AMD Thumbnail 3 : DeepCool ASSASSIN IV Dual Tower 7 Heatpipe Performance CPU Air Cooler Intel/AMD Thumbnail 4 : DeepCool ASSASSIN IV Dual Tower 7 Heatpipe Performance CPU Air Cooler Intel/AMD
Scan code: LN136831 Manufacturer code: R-ASN4-BKNNMT-G
Order now and get it tomorrow, Thu 30th May
£84.98
Get it Tomorrow, 30 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Assassin IV Dual Tower Air CPU Cooler from DeepCool

DeepCool Assassin IV Dual Tower Air CPU Cooler

Impeccable Cooling for Your CPU The DeepCool ASSASSIN returns with a new stylish design, efficient cooling capacity and whisper-quiet operation. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans which can be shifted to provide unobstructed clearance for high-profile RAM. With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.

Intel LGA2066/2011-v3/2011/1700/1200/115X

AMD SocketAM5/AM4

500~1700 RPM±10%Fan Speed

79.1 CFM Max-Airflow

A Simple Slide of A Switch

Operating switch from quiet to performance

It's in your controlSuperb user control allows you to turn the Assassin IV from a whisper-quiet cooler into a performance cooling beast with a simple sliding switch. Take control of your cooling with DeepCool.

Embrace Silent Operation

six pole fan motors

BE COOL, BE CALMA key factor in the ASSASSIN IV's extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!

Crafted for Perfection

Inc#0c0c0cible Design

EXCEPTIONAL BY DESIGNFeaturing seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

Streamlined Installation

Easy installation

Designed to Make installation EasyInstalling larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.

Built To Fit

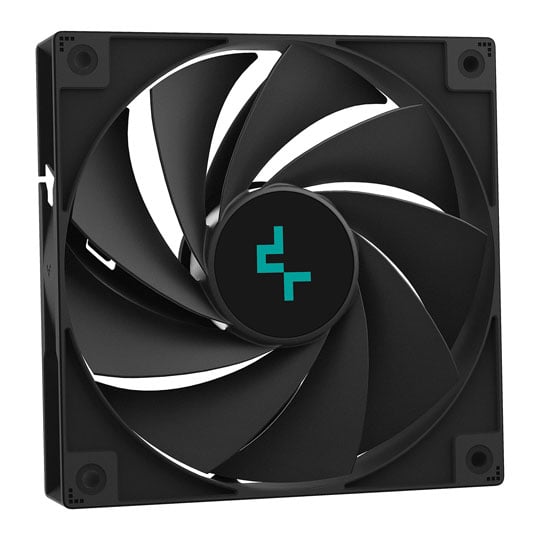

relocatable fans

LET IT SHINE!The ASSASSIN IV's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.


RAM Clearance :-
Intel LGA1700/1200/115X: Unobstructed
Intel LGA20XX: 63mm
AMD: AM4/AM5: Unobstructed

Please Note

Due to differences in motherboard layouts, the following motherboards are not compatible with the ASSASSIN IV: ROG STRIX Z790-H GAMING WIFI, ROG STRIX Z690-E GAMING WIFI, MSI MEG X570 GODLIKE, MSI B650M APE WIFI, and ROG CROSSHAIR X670E GENE.

Specifications
Cooler Specifications
Edition ASSASSIN IV
Cooler Form Factor Dual Tower
Heatpipes 7
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1200
  • 1700
  • 2011
  • 2011-3
  • 2066
  • AM4
  • AM5
Max. TDP
Fan Specifications
Included Fan Configuration
  • 1 x 120mm
  • 1 x 140mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting
Fan/Pump Connectors 2 x 4-pin
Max. Fan Speed 1700 rpm
Max. Fan Airflow 79.1 CFM
Max. Air Pressure 2.44 mm H²O
Max. Sound Level 29.3 dBA
Materials
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 110×160×140 mm (WxHxD)
Total Dimensions 110×160×140 mm (WxHxD)
Weight 1575 g
Additional Information
Scan Code LN136831
Model Number R-ASN4-BKNNMT-G
GTIN 6933412728092
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
3 months
Manufacturer Contact Details
Manufacturer:
Beijing Deepcool Industries CO
Telephone:
Scan 0871 472 4747
