Scan code: LN123805 Manufacturer code: R-AK620-BKNNMT-G

DeepCool AK620 Intel/AMD Dual Tower Performance CPU Cooler

DeepCool AK620 Cooler, 2x 120mm PWM Fans, Dual Tower, Copper Base, Aluminium Fins, 6x Heatpipes, Intel/AMD 260W TDP

Thumbnail 1 : DeepCool AK620 Intel/AMD Dual Tower Performance CPU Cooler Thumbnail 2 : DeepCool AK620 Intel/AMD Dual Tower Performance CPU Cooler Thumbnail 3 : DeepCool AK620 Intel/AMD Dual Tower Performance CPU Cooler Thumbnail 4 : DeepCool AK620 Intel/AMD Dual Tower Performance CPU Cooler
Scan code: LN123805 Manufacturer code: R-AK620-BKNNMT-G
Order now and get it tomorrow, Mon 30th May
£49.99
Get it Tomorrow, 30 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Unlocked Potential

Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.


Cool, Quiet, and Powerful

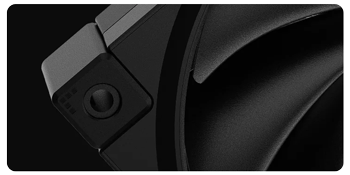

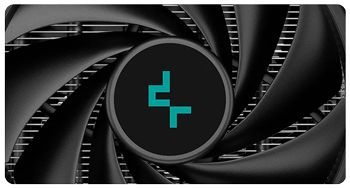

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.

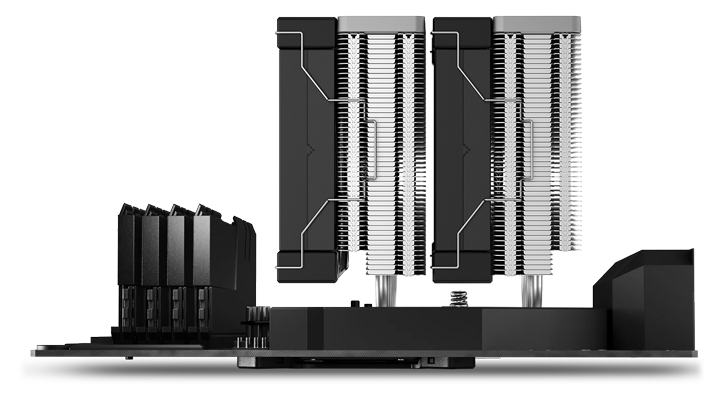

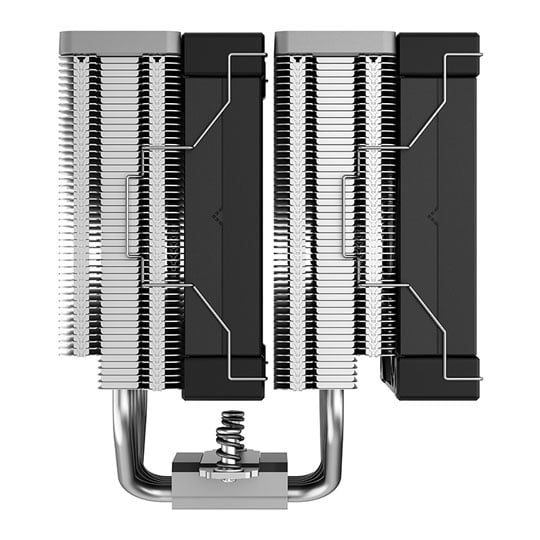

Exceptional Cooling by Design

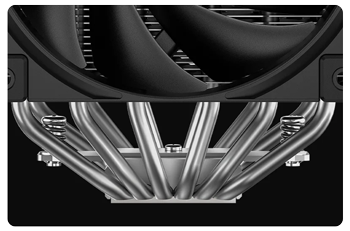

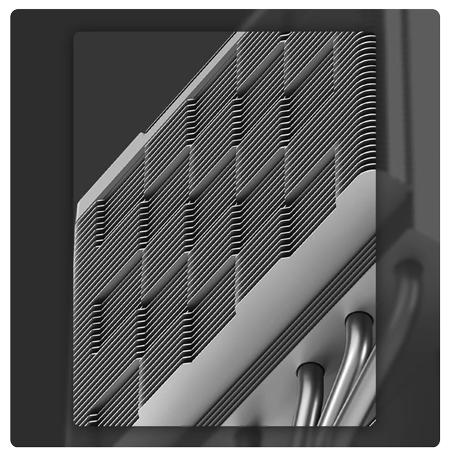

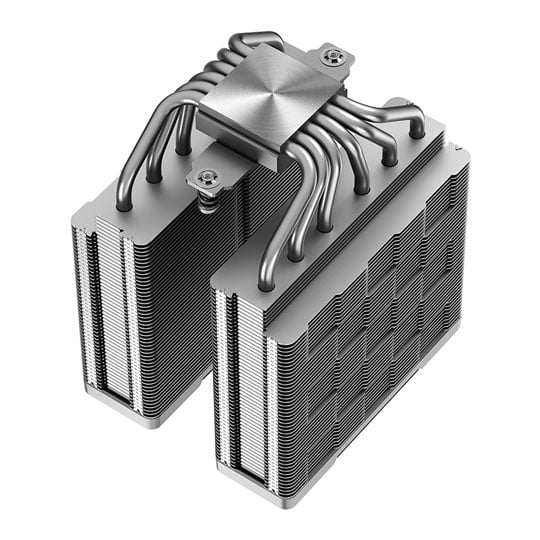

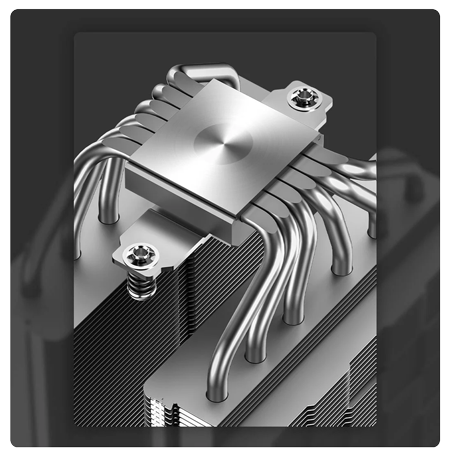

The AK620 features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.


Multi-Platform Simplicity

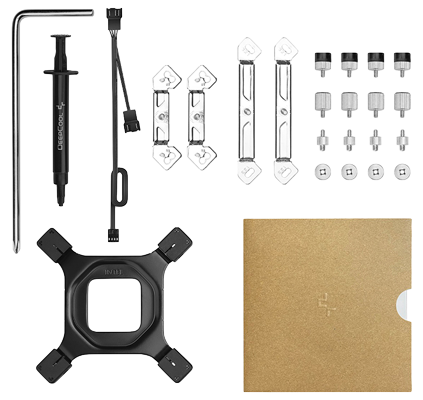

The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.

Features


• Heatpipe: 6 mm×6 pcs.
• Fan Dimensions: 120×120×25 mm.
• Fan Speed: 500~1850 RPM±10%.
• Fan Airflow: 68.99 CFM.
• Fan Air Pressure: 2.19 mmAq.
• Fan Noise: 28 dB(A).
• Fan Connector: 4-pin PWM.
• Bearing Type: Fluid Dynamic Bearing.
• Fan Rated Voltage: 12 VDC.
• Fan Rated Current: 0.12 A.
• Fan Power Consumption: 1.44 W.

Specifications
Cooler Specifications
Edition AK620
Cooler Form Factor Dual Tower
Heatpipes 6
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1200
  • 1700
  • 2011
  • 2011-3
  • 2066
  • AM4
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 120mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 1850 rpm
Max. Fan Airflow 68.99 CFM
Max. Air Pressure 2.19 mm H²O
Max. Sound Level 28 dBA
Materials
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 127×110×157 mm (WxHxD)
Total Dimensions 129×138×160 mm (WxHxD)
Weight 1456 g
Additional Information
Scan Code LN123805
Model Number R-AK620-BKNNMT-G
GTIN 6933412727316
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
3 months
Manufacturer Contact Details
Manufacturer:
Beijing Deepcool Industries Co
Telephone:
Scan 0871 472 4747
