Datavideo SHOWCAST 100 4K Switcher With Built-In Streaming Encoder
Datavideo SHOWCAST 100 4K Switcher With Built-In Streaming Encoder, 14" Touchscreen, Built-in Transitions And Background
Datavideo - 'SHOWCAST 100 4K Switcher With Built-In Streaming Encoder'

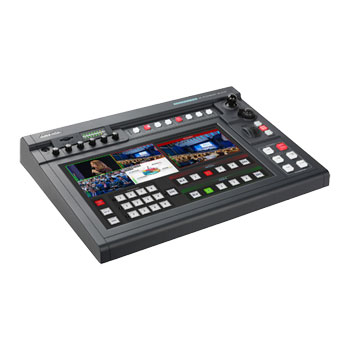

Innovative, Compact, Easy to use and All-in-oneIntroducing the Datavideo SHOWCAST 100, a revolutionary 4K 4-Channel All-in-one Production Studio with incredible versatility. Packed with seven major functions in a single unit: video switching, text and graphics overlay, camera control, live streaming, recording, and audio mixing. With a user-friendly 14-inch touch panel akin to a tablet, you gain effortless and intuitive access to switcher functions. Equipped with 4K HDMI connections for inputs and outputs, it's perfect for connecting to 4K projectors or IMAG screens. Plus, the RJ45 connections facilitate control for up to three PTZ cameras via serial protocol. With an easy setup and a compact, mobile design, the SHOWCAST 100 streamlines your video production workflow, reducing the need for external devices, making it an ideal choice for any live production environment.

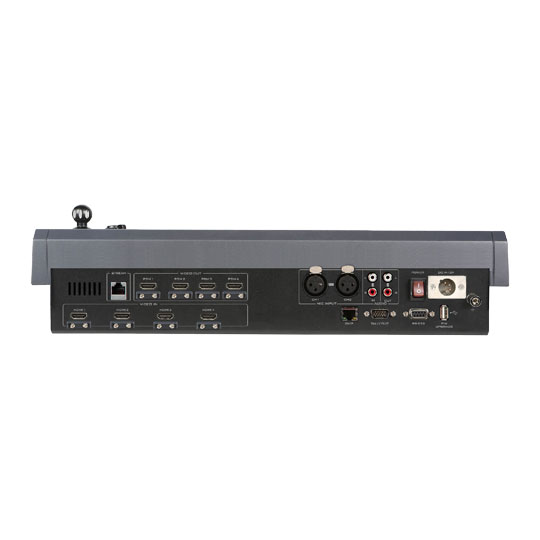

Inputs And Outputs
4K HDMI And RJ454K HDMI connections for inputs and outputs for connecting to a 4K projector or an IMAG screen. RJ45 connections for controlling up to 3 PTZ cameras via serial protocol.
4K60p 4-Channel Touchscreen Switcher
The touch panel allows easy and intuitive access to a variety of switcher functions. The SHOWCAST 100 has many functions with easy setup.
The unique all-in-one design streamline your video production workflow by reducing the number of external devices that you need to connect. SHOWCAST100 is light and compact. Its mobility makes it ideal for any live production environment.
Video SwitchingThe four HDMI input/output channels are designed for basic video production workflow of meetings, corporate conferences, church events, etc.
SubtitlesThe SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Another way is to overlay subtitles using the built-in network streaming encoder.
Camera ControlThe SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt camera lens in real time, zoom in and out of an image, and adjust the white balance, iris and mirror mode.
Video Streaming and RecordingThe built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.
Virtual Buttons
easy operationVirtual buttons on the large touch screen panel makes it easy for operating the switcher as well as setting up presets for cameras.
Operating the SHOWCAST 100 is as easy as using a tablet. Produce professional video productions without having a huge learning curve on how to use and operate a switcher.
Useful And Simple Transition Effects
three useful and simple transition effectsCut, Mix and Wipe are the three useful and simple transition effects built into the switcher. Via an easy-to-use 14 inch touchscreen UI, the transition settings will be immediately accessible after selection of a particular effect. For example, if you've selected WIPE, you can easily adjust the transition speed by dragging a slider with your finger or tap to select a colour for the border.
PIP And Split
PIP
Split
touchscreen UIPIP is often required in video production. Most of the time, the PIP window size need to be adjusted for the program view. The SHOWCAST 100 allows you to drag different sliders on the touchscreen UI with your finger to set the aspect ratio of the PIP window. The split window is usually used for live interview, corporate presentations, and panel discussions.
Camera Control
built-in camera control functionsThe SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt positions in real time and zoom in and out of a shot. In addition, you can adjust the white balance, iris and mirror mode of each camera.
Powerful Camera Presets
save up to four presets per cameraEven though SHOWCAST 100 can control only three PTZ cameras, you can save up to four presets per camera, giving you a total of 12 different angles for your production. The 12 memory presets allow the director to instantaneously switch between different camera angles on SHOWCAST 100 by pushing corresponding preset buttons.
Fine Tuning The Camera Parameters
intuitive touchscreen UIOn the intuitive touchscreen UI, you can easily adjust the camera's focus, iris and white balance settings. Settings of a particular program can be saved in memory presets for future use.
Two Ways to Overlay Subtitles
lumakeyed and built-in network streaming encoderThe SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Lumakeyed subtitles can be previewed on the multiview screen and transitioned to program.
Another way is to overlay the subtitles using the built-in network streaming encoder. On the web UI of the streaming encoder, enter the subtitle texts in the text field of the CG page after which the subtitle will be shown on your streamed video as streaming starts and recorded on the SD card along with the video. If lumkeyed subtitle and CG texts are shown at the same time, they will all be recorded on the SD card.
Lumakeyed Subtitle
Luma keyLuma key is an image processing technique that deals with the brightness level of an image or a video, thereby generating a foreground subtitle or logo. SHOWCAST 100's luma key function is designed for logos, text and animated images.
Character Generation Using The Network Streaming Server
CG texts and imagesThe CG texts or image generated using the network streaming server can be overlaid on the video during streaming. The text size and colour can be customized with a border added. The text or image position can also be adjusted accordingly.
Custom Real-Time Captions And Subtitles For Your Programs Such As News Broadcast
Transcribe audioTranscribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.
Adjust the size, position, colour and borders
Highlight key informationHighlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.
Live Streaming Encoder
built-in dual live streaming encoderThe built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.
Depending on the bandwidth, you can set the bitrate to low, medium or high. To meet growing demand for mobile viewing, the portrait view can now be easily activated on the SHOWCAST 100 by simply pressing the VERTICAL button so that viewers will be able to view the program on their mobile devices by holding them upright without having to change the orientation.
Dual Streaming
stream to two live streaming platformsDuring video production, you can simultaneously stream to two live streaming platforms such as Facebook, Youtube and Twitch. With Datavideo dvCloud, you can stream to 25 live streaming platforms at the same time and automatically back up your video files on the cloud server.
dvCloud And SRT
dvClouddvCloud is a professional live streaming platform developed by Datavideo. Once you've login, you will be allowed to create and manage all video streaming channels on dvCloud and stream your video to 25 live stream servers without any time constraints. The best part about dvCloud is that it allows you to back up video files on the cloud server for future downloads. The SHOWCAST 100 forms a low latency, secure and reliable streaming work flow with the SRT protocol and the dvCloud server.
Vertical Streaming
generate a portrait viewFor each live streaming video, 50% of the audience view on mobile phones, and 94% of the mobile users prefer holding the phone upright to view the video. It takes only a few basic setups for the vertical streaming function of the SHOWCAST 100 to generate a portrait view of your streaming video.

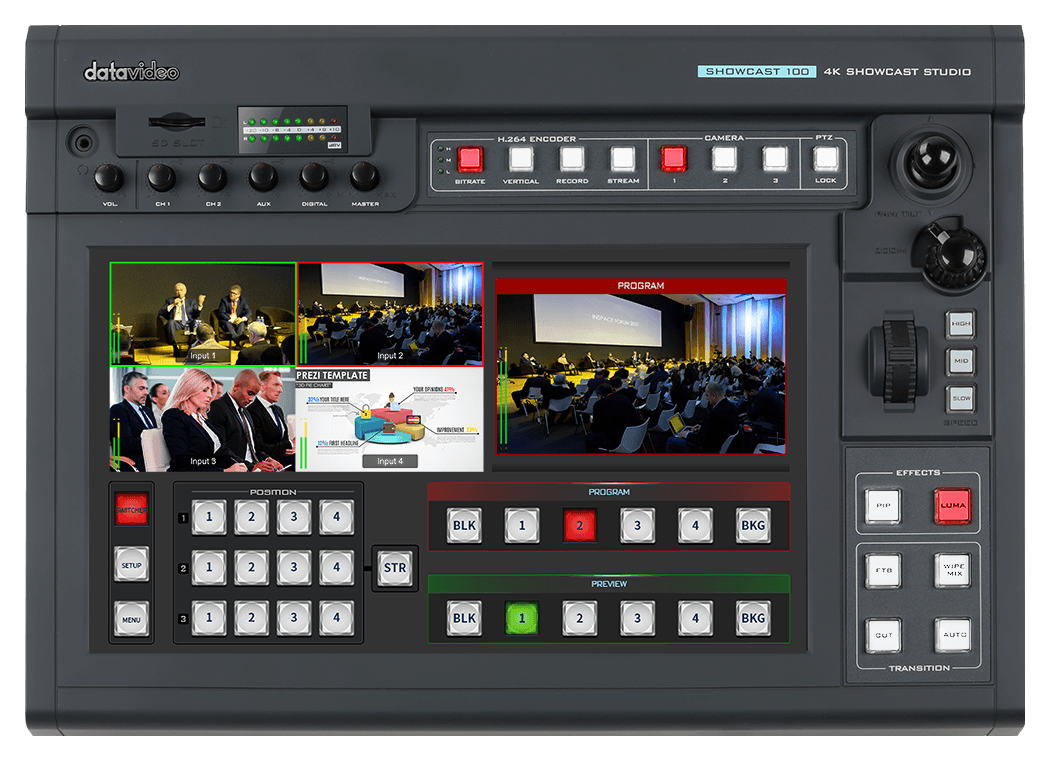

14 Inch Touch Screen And Intuitive Operation Using The Touchscreen UI
professional touchscreen UIThe traditional physical keyboard of the switcher is replaced by a professional touchscreen UI to allow video switching, activation of subtitle overlay, camera control, video recording, audio mixing, etc. Operating of these functions is intuitive and easy to learn, even to novice users.
The SHOWCAST 100's intuitive touchscreen UI has several buttons with each assigned of one function only. The pane-like design divides the functions into different groups. Like a tablet, the touchscreen UI is intuitive and easy to use.
SD Card Recording
secure back upWith the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post-edits, etc without much effort.
Audio Mixing
A wide variety of audio I/O ports
SHOWCAST 100 has an audio delay
The 4 Channel Audio Mixer accepts embedded audio, two LINE input channels, one AUX channel and one HDMI audio channel, giving you the ability to mix the audios while processing the image.
The SHOWCAST 100 has two XLR/6.3mm composite ports for LINE inputs. The dual channel RCA port is designed for analog audio input. The RCA output serves to connect external audio equipment for audio monitoring.
Tutorial Videos Created Specifically For The SHOWCAST 100
Datavideo AcademyDatavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the SHOWCAST 100 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
