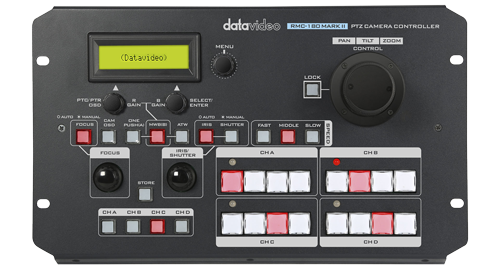

Datavideo - 'RMC-180 Mark II PTZ Camera Control Unit'
Four Camera ControlThe Datavideo RMC-180 Mark II is a camera control unit with support for up to 4 compatible Datavideo PTZ, block cameras or Robotic Pan Tilt heads via RS-422. With simple plug and play functionality RS-422 and RJ45 connections between controller and cameras, manual focus and IRIS control, 4 position presets and speed mode controls.

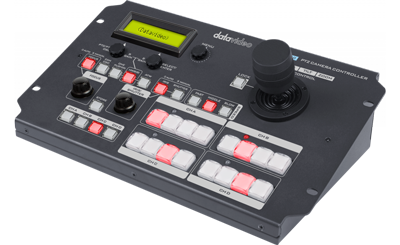

Easy to Use Design
Simple Multi-camera control at your fingertipsWith its ergonomic joystick and tactile button layout, the RMC-180 Mark II makes it easy to set up and control up to four Datavideo PTZ cameras and robotic pan tilt head for any live production.

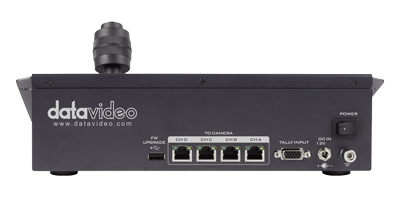

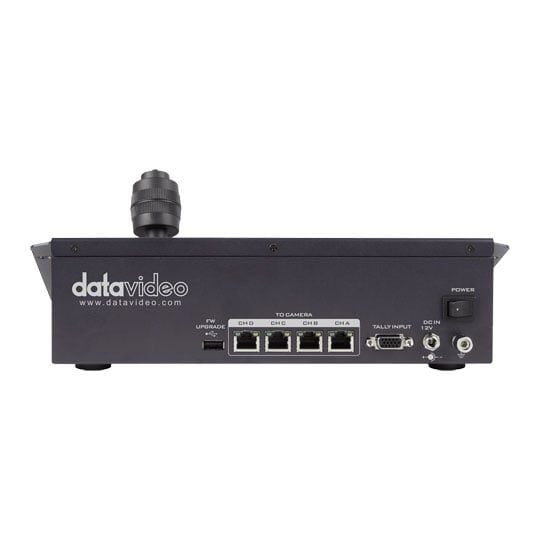

Just Plug and PlayThanks to RS- 422 standard interface, four RJ-45 ports provide plug and play between RMC-180 MARK II and PTZ cameras. The interface standard is RS- 422 and uses any RJ-45 cable to connect the RMC-180 MARK II to the RS-422 port of the Block/PTZ camera.

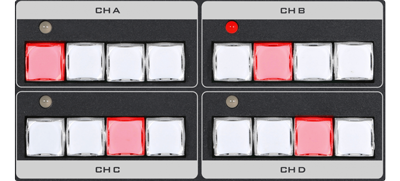

Programmable Presets
Automatic Camera Position PresetsThe RMC-180 MARK II provides shortcut keys for up to 4 position presets for each of your cameras (up to 8 presets if only 2 cameras are connected). Easily program close-ups, wide-shots, and recall them with the press of a button. Recall the preset intuitively by pushing the mechanical buttons assigned to each preset.

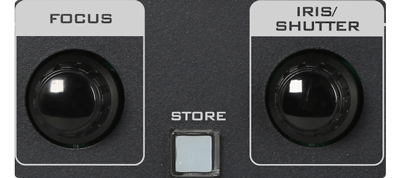

Manual Camera Controls
Manual Focus and Manual IRIS controlRMC-180 MARK II controls of Pan, Tilt, and Zoom and Iris, Focus, Gain, and other functions such as the OSD on specific models. Control via CAT5/CAT6 cable with RJ45 connectors.
Speed Mode Makes Your Camera Movement Match to the Pace of the ProgramThe controller can move the cameras (pan, tilt and zoom) at slow, medium, and fast speeds. It provides you with a quick option for your selecting the speed of your camera movement.
Tally Support
Support Datavideo's Switcher Tally IndicatorsCompatible with Datavideo's switcher tally indicators. There are generally two tally LED modes, which are Tally User and Tally Input. Easy to implement in different workflow.
Compatible with Datavideo PTR-10
Controls PTR-10 with PresetsRMC-180 MARK II can control up to four PTR-10 MARK II. It can also save up to fours presets per camera and adjust focus and iris of each camera that is mounted on the PTR-10 MARK II.
Datavideo Tutorials
Tutorial videos created specifically for the RMC-180 MARK IIDatavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the RMC-180 MARK II is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
RMC-180 Mark II Tutorial Videos
