Datavideo - 'OBV-4000 4K 8-Channel OB Van Studio'

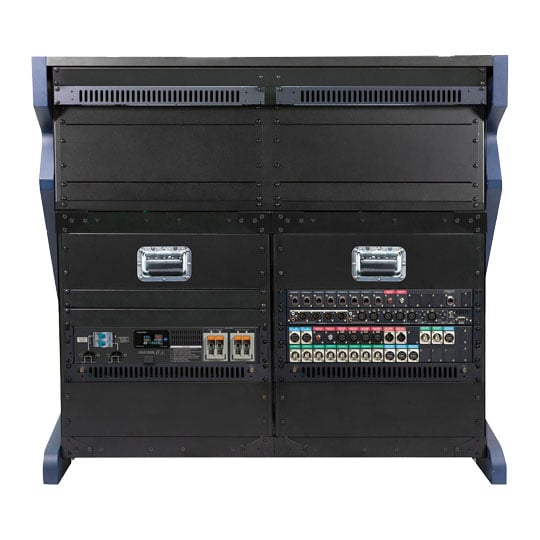

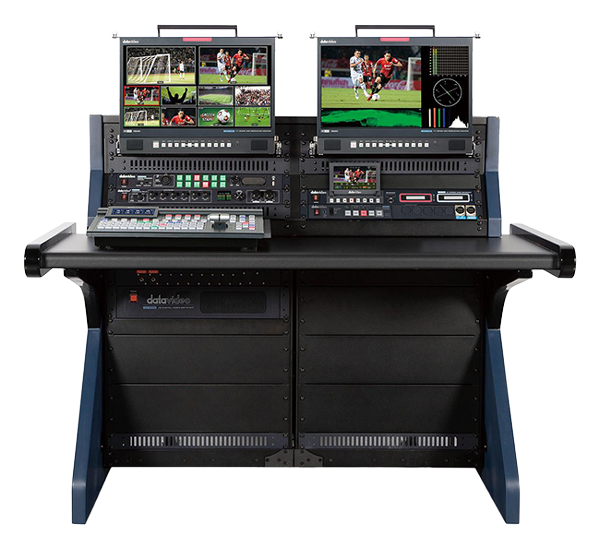

4K Mobile Broadcasting in VanIntroducing the Datavideo OBV-4000 4K 8-Channel OB Van Studio, a groundbreaking mobile broadcast solution that redefines production capabilities for both in-studio and on-location shoots. Designed to fit into the back of a small van, this innovative system is anchored by a state-of-the-art 4K switcher, capable of handling up to 8 channels of stunning 2160p UHD 12G-SDI and HDMI video signals. Enclosed in a rugged aluminium casing and integrated into a durable rack with a newly designed Console Desk, the OBV-4000 ensures maximum stability and protection during transport and operation. With comprehensive features such as advanced video switching, communication tools, recording options, intercom functionality, and precise audio delay and scope monitoring, this versatile studio is tailored for broadcasters and video professionals seeking a reliable and adaptable solution for diverse production environments. Additionally, its forward-thinking design supports future system expansion, ensuring you’re always ready for the evolving demands of multimedia production.
Why Choose Datavideo OBV Series?
ComprehensiveThe OBV unit is fully equipped with essential broadcast features such as 4K video switching, intercom systems, video transmission, audio delay, and scope monitoring.
Professional-GradeThe OBV series supports 4K UHD 12G-SDI and HDMI video signals, ensuring that productions can meet the highest standards of video quality. This makes the OBV series ideal for high-end broadcasts, live events, and professional productions.
Quick DeploymentThe OBV units are designed for rapid setup and deployment. This allows broadcasters and video professionals to set up production facilities virtually anywhere, from live sports and events to studio-based broadcasts.
Rugged and ExtensibleBuilt with rugged housing and integrated into a sturdy rack with a new design Console Desk. The OBV is is also allow for additional features and capabilities to be added as needed.
4K Broadcast Video Switcher

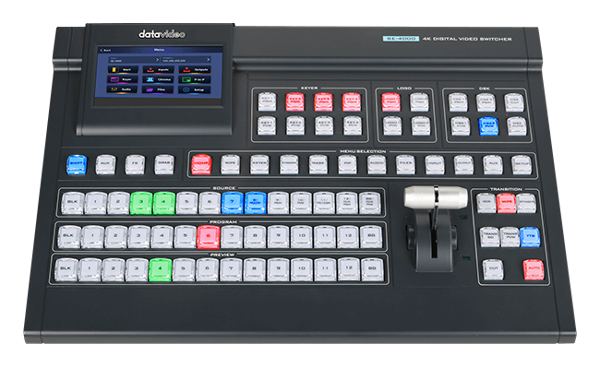

Datavideo SE-4000Datavideo SE-4000 is a comprehensive 4K video switcher tailored for the Omnimedia generation. The SE-4000 is equipped with broadcast quality UHD 4K50/60 12GSDI and HDMI 2.0 video input ports, allowing you to operate the device using the traditional physical control panel and a state-of-the-art 5-inch colour LCD touch screen. The SE-4000's one-button-one-function feature simplifies your video production flow. With the auxiliary outputs, cross point, four chroma keyers, PIP, and DSK effects, you will be able to easily generate various professional effects for all scenarios and applications.
The OSD menu is behind the one-button-one-function design. To set up the one-button-one-function feature, we've included a colour HD 5-inch touch screen. Well-designed icons help you identify settings therein. All menu functions can be found here. You can group multiple functions into one button so you will be able to execute these functions with one tap. The touch panel screen and the physical control panel form the most convenient and efficient user interface.
True 12G 4K 50/60 Video Production Switcher
UHD 4K60/50pSupport UHD 4K60/50p signals on inputs and outputs. It also has a built-in input scaler, for up-conversion on each available input.
Multiple Interfaces For All Video Types
various I/O'sFully equipped with various I/O's that accept UHD 4K 50/60p videos from sources such as PCs with an HDMI 2.0 output port, multimedia players, and 12G-SDI ENG style cameras. Upon connection, the 10-bit broadcast quality video will be displayed instantaneously at no expense of resolution, speed and frame rate.
12-Channel Application Built Upon An 8 Video Switching Design

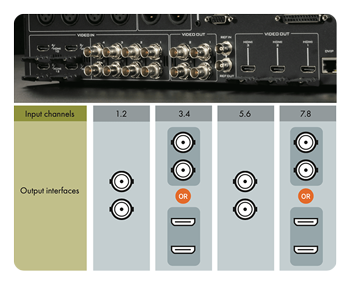

seamless interface switchingResponsive and seamless interface switching between 12G SDI and HDMI 2.0 on four shared channels. Upgrading from 8 channels to a 12-channel machine adds greater versatility to your hardware connections and more possibilities for live program production.

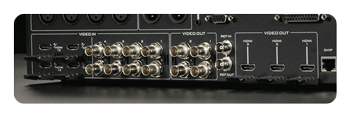

Flexible Video Input Selections
Video InputsThe SE-4000 has 12 video inputs, with 8 of the inputs being selectable for flexibility, as well as a variety of video and audio inputs and outputs, 7 outputs with AUX assignment.

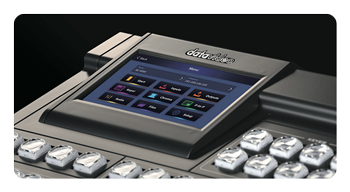

Integrated 5" Touchscreen Display
One Touch One FunctionWith the 5" touchscreen panel built-in, you will not need a laptop or app to assist with your live production. With many built-in functions, including user memory with customized icons, transition animation set up, chroma key, luma key, DSK, PIP, wipe generator, still stores, and logo insertion; these can all be done on the 5" LCD touchscreen.
Spectacular 4K Resolution High Brightness And Contrast

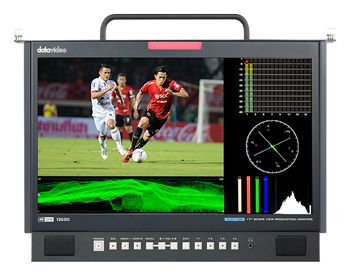

TLM-170KMThe TLM-170KM series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HD panel. The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.
4K Recording And Compressed in 10-Bit 4:2:2 ProRes

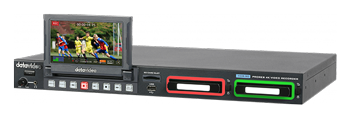

HDR-90HDR-90 is a rack-mounted version for OB Vans or other integrated systems; The 4K recorders use a 10-bit ProRes 422 compressed codec for recording UHD 4K videos. Apple ProRes, a codec technology developed for high-quality, high-performance editing in Final Cut Pro X, is one of the most popular codecs in professional post-production. The recorder has a high resolution 5” LCD touch screen on the front for video monitoring, device settings, and configuration. The monitor also provides a complete suite of scopes and calibration tools such as waveform, vectorscope, focus peaking to ensure perfect recording.
4 Channels Recording And Operated Like A Video Switcher

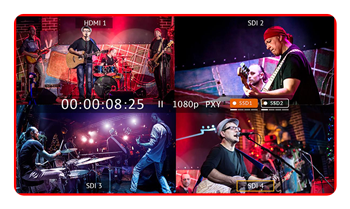

four 1080p60 streamsNot just for a single-camera setup, HDR-90 can record up to four 1080p60 streams simultaneously to separate ProRes files. All files are synced with the same time code, making it easy to track during post-production. The HDR-90 is not only an ISO recorder, it can also be used as a four-channel HD video switcher. Display all four sources in quadview, you can cue and simply tap the touch screen to switch seamlessly between cameras. PGM output can even be used for live streaming.

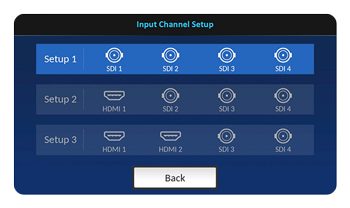

Three Input Setups
3G ISO recording and HD replayThe three input setups are designed for 3G ISO recording and HD replay.
NVS-36 4K Dual Streaming Encoder

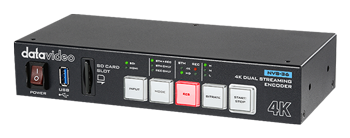

NVS-36The NVS-36 can perform both streaming live broadcasts and recording in the H.265 format simultaneously. It can also set different live streaming bitrates for various application scenarios and network environments to achieve smooth video and high-quality visuals. Streaming live can also perform continuous recording onto an SD card without file size limitations. The unique dual-platform live streaming capability allows simultaneous streaming to two live platforms, opening up more live broadcasting channels for video content. Additionally, it offers a one-click option for vertical screen live streaming, simplifying the setup for vertical screen broadcasting on mobile devices and other terminals.
Rackmountable 8 Channels Intercom System

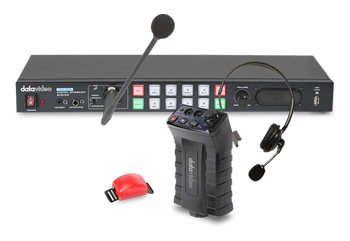

ITC-300The Datavideo ITC-300 Digital Intercom System is an 8-channel wired communication system, allowing direct connections of up to 8 belt packs. With the ITC-300, the director will then be able to speak to the team crews located at different sites either simultaneously or individually. The ITC-300 is a standard 19" 1U rack design which facilitates integration of the device into any rack system for use in the field or studio. It can also be used with other various switcher models designed and manufactured by Datavideo such as the SE-500HD, SE-650, SE-2200, SE-2850, SE-3200 and SE-4000.
Seamlessly Compatible With dvCloud
DVCloudGet the most out of your streaming hardware using DVCloud. The OBV-3200 is seamlessly compatible with Datavideo’s DVCloud service. This subscription service gives you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders. You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform. Direct SRT streaming to dvCloud prevents hiccups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.
