Datavideo - 'iCAST 10NDI All-in-One Streaming Switcher'

Datavideo iCast 10NDI All-in-One Streaming Switcher

Hybrid Event SwitcherThe Datavideo iCAST 10NDI is a new and innovative all-in-one switcher that features a 5-channel switcher, camera controller and streaming encoder in one box. With 3G-SDI, HDMI and UVC inputs, iCAST 10NDI allows you to create eye catching presentations with different video sources like PTZ and document cameras, and a laptop for your presentation slides.

Easily live stream to multiple platforms and record to an SD card with the built-in streaming encoder and recorder. Six Video channels can be ISO recorded at the same time in order to provide you with more program materials for post-production.

Produce, Stream, Record

photo of Datavideo iCast 10NDI Rear Connectivity

iCAST NDIA hybrid event switcher designed for classroom, lecture capture, conferencing with all the I/O needed for producing, streaming, recording, and conferencing with Zoom, MS Teams, and other platforms. An intuitive touch screen interface with presets for screen layout settings, camera angles, and buttons for activating the stream and recording of your event.

5 Channel Video Input

graphic of the iCast 10NDI 5 channel video inputs and compatibility

Multiple Video Input interfacesiCAST 10NDI has five video inputs with one SDI/HDMI selectable port, three HDMI only ports and one USB 3.0 port. iCAST 10NDI accepts videos from various professional cameras, laptops and document cameras.

You can also receive IP videos via an RJ-45 port. IP videos are streamed using RTMP(S) or SRT protocol. With a variety of video interfaces, you no longer need to worry about compatibility of different video devices.

Built-in Multiview Modes

multiview of four vertical video feeds of a professor giving a lecture to a class

Dual Multiview ModesiCAST 10NDI provides an intuitive preview of your output sources. You can view them either horizontally or vertically (a new technology for viewing videos on mobile devices) and preview these mode changes on a Multiview screen.

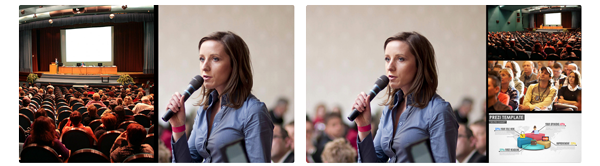

Two layout examples of VP-840 PGM multiview video modes

Multiple PGM ModesIn addition to displaying a full screen view of the program out video, you can also stream the four input videos live to your audience.

The iCAST 10NDI offers five Multiview layouts to allow you to show your input videos all at the same time. The videos can be streamed to all corners of the world and your audience can, with zero delay, participate in your events using a receiver/decoder, personal mobile device, or a computer.

NDI|HX Input and Output

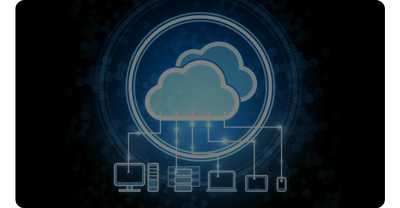

graphic of cloud streaming with multiple video source inputs

Stream OutYou no longer need multiple devices to stream your video to multiple platforms. This is now achievable with one iCAST 10NDI.

iCAST 10NDI supports NDI | HX input and output. Another alternative to broadcast a quality low latency video transmission.

vizrt ndi hx logo

Decode up to 3 NDI ChannelsOne Ethernet Cable with NDI® | HX Technology

There is no need for multiple cables and complicated setup. Single-wire concept helps you to decode video and audio over only one Ethernet cable for live video switching.

Vertical Video Streaming

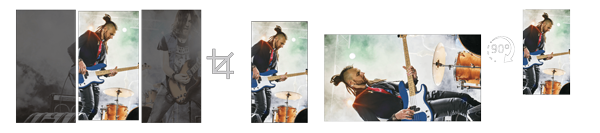

Graphic showing the multiple vertical video streaming options available

Vertical streaming appropriate for video playback on social mediaOf all videos streamed, up to 50% of the videos are viewed on mobile devices and 94% of the mobile users hold the phone vertically to view the video. iCAST 10NDI provides vertical streaming which can be generated with only a few basic settings.

SRT Protocol

SRT Ready Logo

Supporting SRT protocolVideo latency often results when there is insufficient network bandwidth. iCAST-10 supports SRT protocol which mitigates packet loss when the network becomes unstable. Sometimes RTMP may give you stuttering viewing experience but SRT will solve your problem.

dvCloud

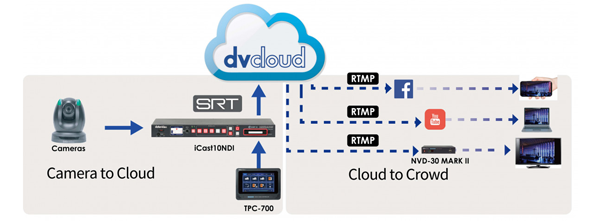

dccloud workflow drawing iCast 10NDI

Add DVCLOUd to enhance your streaming experiencedvCloud, a paid service, is a professional streaming platform developed by Datavideo. Once you've logged in, you can manage all the streaming channels that you have created. You can stream your video to at most 25 platforms at the same time without any time limit while backing up the video on the cloud automatically for future downloads. iCAST 10NDI, SRT and dvCloud form a low latency, secure and reliable streaming workflow.

LED Indicator for Recording

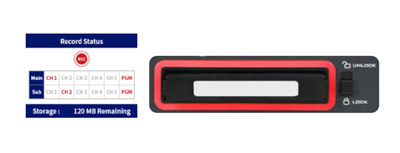

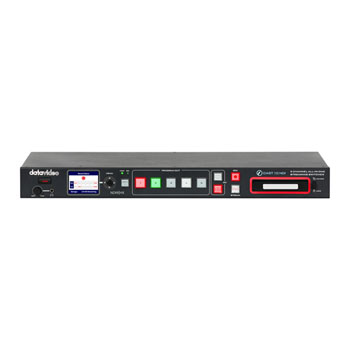

icast 10NDI front panel LED indicator and LCD screen

Recording: Easy-to-read LED indicatorA protruding frame like LED indicator allows you to easily see its colour. A red indicator means that the video is being recorded and a green indicator appears when the record function enters standby mode.

The 2" LCD screen on iCAST 10NDI allows you to view the record status of all video channels.

5 Channel ISO Recording

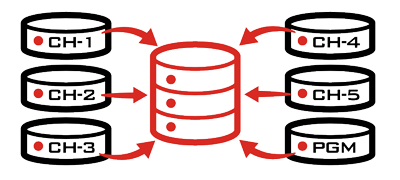

graphic of 5 video channels and pgm being fed into red recording drives

ISO recording of five video inputs and one main program outputISO recording refers to the ability to create isolated recordings of your five camera inputs and one PGM output for video backup and adding visual effects during post production. ISO recording allows you to save your data locally or on a file server.

H.264 Encoding

h.264 silver text on black backgroud

H.264 Encoding to back up HD videosA built-in professional recorder records using H.264 video encoding with configurable resolution, frame rate, video bitrate, etc.

1080p60 Recording

1080p white text on light blue background

Recording ResolutionSupports up to Full HD 1080p50/60 broadcast record quality with a low file size so it is often used for long time recording. Even with a high data compression ratio, fine details of the image can still be retained as well as high recoverable colour information.

Multi-Channel Audio Mixing

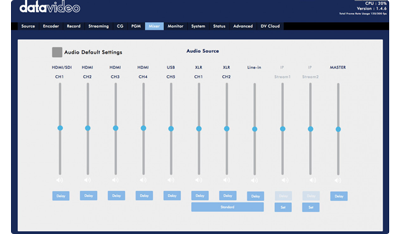

datavideo webui audio control interface with multiple sliders

Multi-Channel Audio Mixing and Audio-to-Video SynchronizationIn addition to embedded audio, we have also provided input ports for external audio such as XLR port for connecting microphones, and RCA terminals for audio players.

The Web audio, the most popular audio source, is another external audio source. You can easily perform professional audio mixing with iCAST 10NDI and at the same time switch between AES and EBU modes so that your output audio will always be compatible with various audio systems in different countries without issues such as unstable audio volume and the audio and video out of sync error.

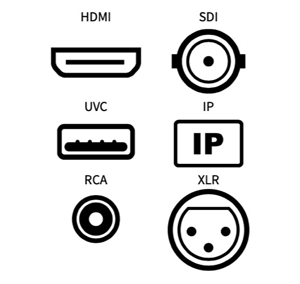

black icons of each audio input connection of icast 10NDI, hdmi, sdi, uvc, ip, rca, xlr

A Variety of Audio Input and Output PortsXLR and stereo RCA ports for external analog audio and a 3.5 mm headphone jack for audio monitoring.

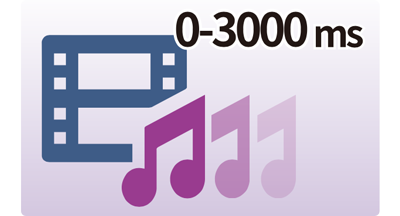

graphic of video and music icons with 0-3000ms in black text

Audio DelayiCAST 10NDI is capable of independently delaying each audio channel by adjusting the delay time in order to eliminate the audio and video out of sync error.

Add Graphical Elements

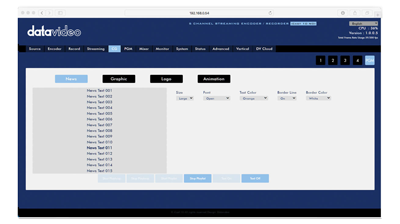

datavideo webui for computer graphics

Character GenerationiCAST 10NDI allows you to add graphic elements such as logos, titles, text, and images to any input video channels or the program output. You can add course chapters text or workflow diagram images to your program.

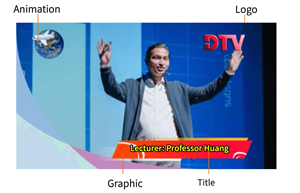

preview image of male speaker stood on stage with a lower third graphic with his name professor huang

Custom real-time captions and subtitles for your programs such as news broadcast.Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.

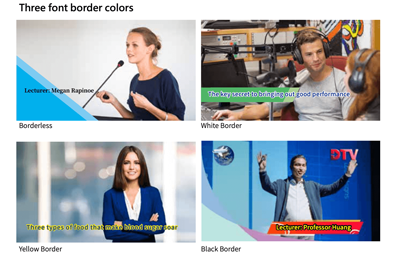

multiple previews of different graphic elements available

Adjust the size, position, colour and bordersHighlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.

DVIP, RS-232, WebUI, LCD Control

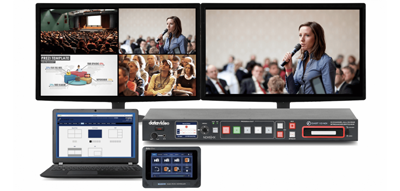

two monitors with different camera feeds displayed with a laptop, datavideo icast 10ndi and tpc-700 sat infront of them

Multiple Control ProtocolsiCAST 10NDI supports multiple control methods which are DVIP, RS-232, Web UI and the LCD screen. The LCD screen can be found on the front panel of the device. DVIP is a control protocol developed by Datavideo for controlling peripheral devices such as cameras, switchers and recorders, allowing you to create a complete video production environment.

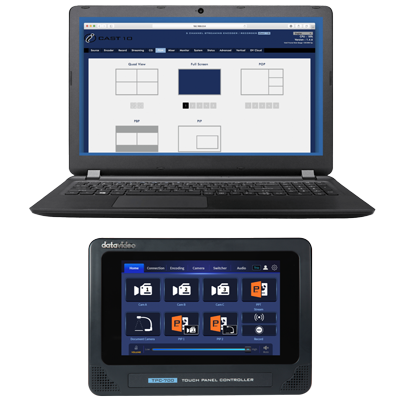

laptop displaying datavideo webui and a datavideo TPC-700 controller

Web UI and Touch Panel ControllerConnect TPC-700, an external touch panel controller, via DVIP to gain access to an intuitive and easy-to-use graphical user interface.

The iCAST 10NDI APP is installed on the TPC-700 touch panel controller along with many frequently used control settings. The responsive touch panel allows you to easily switch between different control modes, adds versatility to video production and reduces operation complexity.

Datavideo Tutorials

datavideo academy on a black background

Tutorial videos created specifically for the iCAST 10NDIDatavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the iCAST 10NDI is available at Datavideo Academy to help you get the best performance out of the product. Please click Here
